Configuration: Discrete I[D ](@100°C) max: -17.0A I[D ](@25°C) max: -27.0A V[F] max: -3.3V Package: TO-254AA Polarity: P Die Size: 6 V[BRDSS] min: -200.0V QPL Part Number: 2N7426 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 160.0mΩ Generation: R4 Q[G]: 300.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -14.9A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7624U3 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Q[G]: 36.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -1.6A I[D ](@25°C) max: -2.6A V[F] max: -5.0V Package: TO-205AF Polarity: P Qualification: COTS Die Size: 1 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 1A R[DS (on)](@25°C) max: 1000.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 11.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

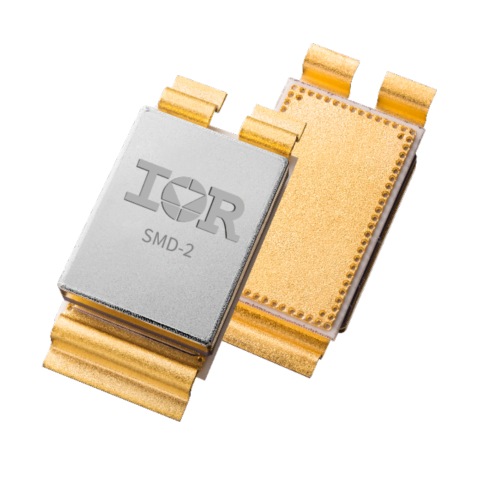

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550U2 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Qualification: COTS Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -7.0A I[D ](@25°C) max: -11.0A V[F] max: -3.0V Package: TO-257AA Polarity: P Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7382 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 300.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550U2 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Qualification: QIRL Optional TID Rating(kRad(si)): 100 300 Q[G]: 170.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

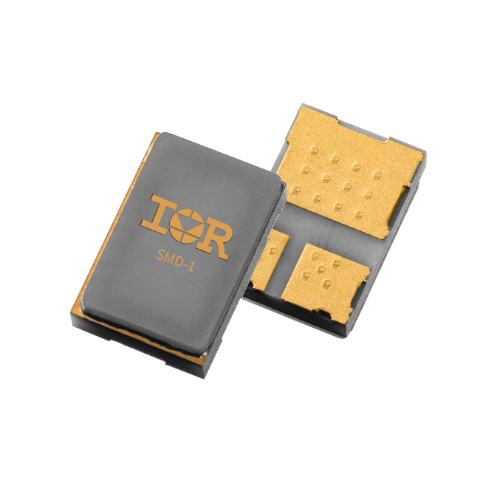

Configuration: Discrete I[D ](@100°C) max: -9.0A I[D ](@25°C) max: -14.0A V[F] max: -3.6V Package: SMD-1 Polarity: P Die Size: 5 V[BRDSS] min: -200.0V QPL Part Number: 2N7423U TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 315.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Q[G]: 200.0nC Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -17.0A I[D ](@25°C) max: -20.0A V[F] max: -5.0V Package: TO-257AA Low Ohmic Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7625T3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 36.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -9.0A I[D ](@25°C) max: -14.0A V[F] max: -3.6V Package: TO-254AA Polarity: P Die Size: 5 V[BRDSS] min: -200.0V QPL Part Number: 2N7423 TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 315.0mΩ Generation: R4 Q[G]: 200.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS
