Configuration: Discrete
I[D ](@100°C) max: -3.0A
I[D ](@25°C) max: -4.5A
V[F] max: -5.0V
Package: TO-205AF
Polarity: P
Die Size: 3
V[BRDSS] min: -200.0V
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 540.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Qualification: QIRL
Q[G]: 40.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -200.0V
I[D ](@25°C) max: -45.0A
V[F] max: -1.3V
Package: Low-Ohmic TO-254AA
Polarity: P
Q[G]: 230.0nC
Qualification: DLA
QPL Part Number: 2N7666T1
Optional TID Rating(kRad(si)): 100 300
TID max: 100.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 34.0mΩ
Generation: R9
Die Size: 6
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V

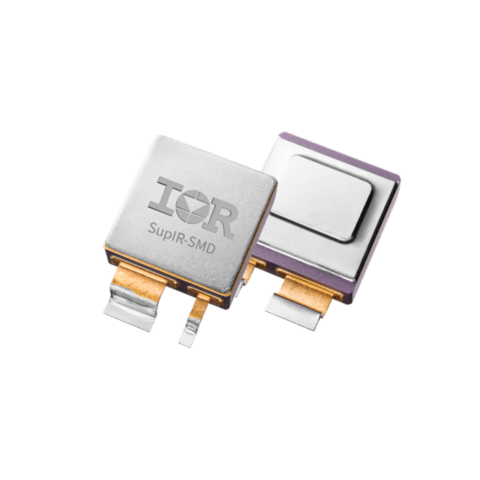

Package: SupIR-SMD
Polarity: P
V[BRDSS] min: -60.0V
QPL Part Number: 2N7524U2A
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 16.0mΩ
Generation: R5
Die Size: 6
Q[G]: 200.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Configuration: Discrete
I[D ](@100°C) max: -14.0A
I[D ](@25°C) max: -22.0A
V[F] max: -3.0V

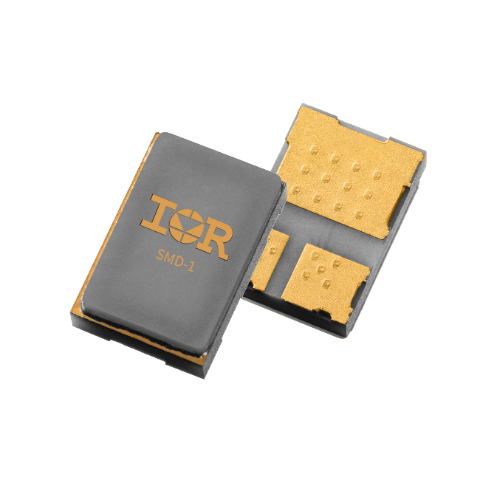

Package: SMD-1
Polarity: P
Die Size: 5
V[BRDSS] min: -100.0V
QPL Part Number: 2N7422U
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 80.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 200.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -14.9A
I[D ](@25°C) max: -22.0A
V[F] max: -5.0V

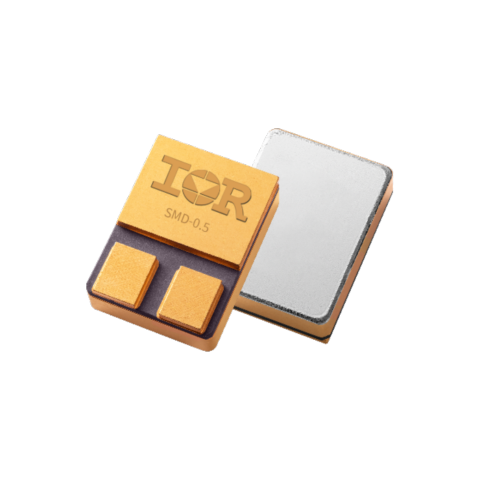

Package: SMD-0.5
Polarity: P
Qualification: QIRL
Die Size: 3
V[BRDSS] min: -60.0V
QPL Part Number: 2N7624U3
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 72.0mΩ
Generation: R7
Q[G]: 36.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -20.0A
I[D ](@25°C) max: -32.0A
V[F] max: -5.0V
Package: TO-254AA Low Ohmic
Polarity: P
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7549T1
TID max: 300.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 103.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Q[G]: 180.0nC
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -30.0A
I[D ](@25°C) max: -48.0A
V[F] max: -3.0V

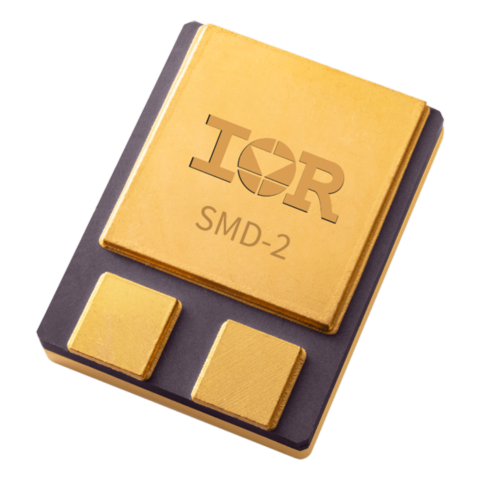

Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7424U
TID max: 300.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 45.0mΩ
Generation: R4
Q[G]: 300.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Qualification: COTS
V[BRDSS] min: -60.0V
R[DS (on)](@25°C) max: 45.0mΩ

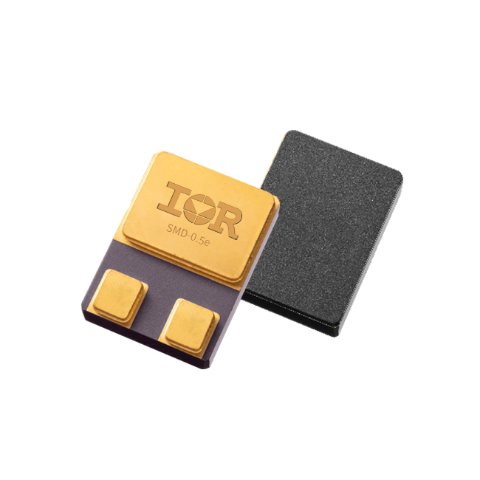

Package: SMD-0.5e Ceramic Lid
TID max: 300.0Krad(Si)
QPL Part Number: 2N7659U3CE
ESD Class: 2
Polarity: P
V[F] max: -1.3V
Generation: R9
Die Size: 3
I[D ](@25°C) max: -32.0A
Q[G]: 48.0nC
Optional TID Rating(kRad(si)): 100 300
Configuration: Discrete
I[D ](@100°C) max: -45.0A
I[D ](@25°C) max: -45.0A
V[F] max: -5.0V
Package: TO-254AA Low Ohmic
Polarity: P
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7524T1
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 16.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Q[G]: 160.0nC
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -1.0A
I[D ](@25°C) max: -1.6A
V[F] max: -5.0V
Package: TO-205AF
Polarity: P
Qualification: QIRL
V[BRDSS] min: -60.0V
TID max: 100.0Krad(Si)
ESD Class: Class 0
R[DS (on)](@25°C) max: 1200.0mΩ
Generation: R7
Optional TID Rating(kRad(si)): 100 300
Q[G]: 2.8nC
Die Size: 2
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
