Configuration: Discrete
I[D ](@100°C) max: -7.0A
I[D ](@25°C) max: -11.0A
V[F] max: -3.0V

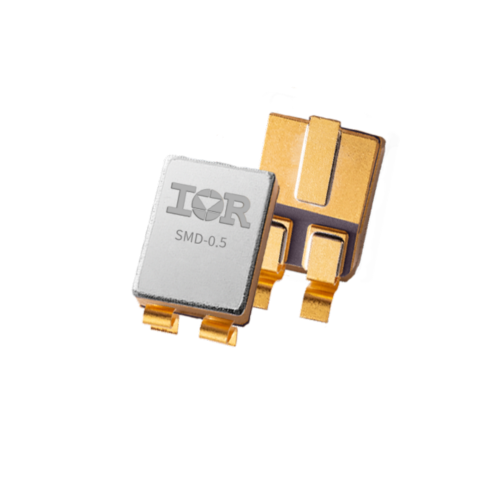

Package: SMD-0.5
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 290.0mΩ
Generation: R4
Qualification: QIRL
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -100.0V
Q[G]: 50.0nC

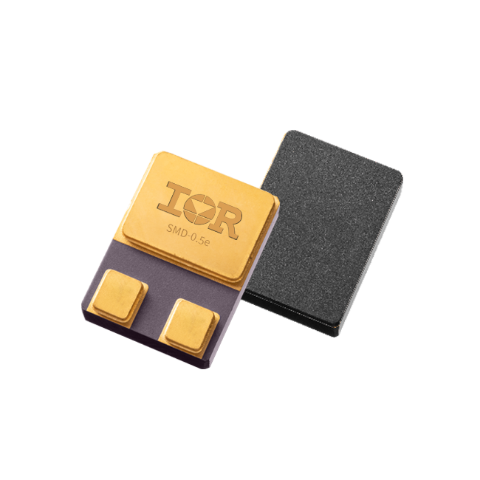

Package: SMD-0.5e Ceramic Lid
TID max: 100.0Krad(Si)
Die Size: 3
QPL Part Number: 2N7660U3CE
Polarity: P
V[F] max: -1.3V
Generation: R9
I[D ](@25°C) max: -24.0A
R[DS (on)](@25°C) max: 72.0mΩ
Optional TID Rating(kRad(si)): 100 300
Qualification: COTS
Voltage Class max: -100.0V
Language: SPICE
Product Category: Rad hard MOSFETS
ESD Class: Class 2
Qualification: COTS
V[BRDSS] min: -200.0V
I[D ](@25°C) max: -62.0A
R[DS (on)](@25°C) max: 32.0mΩ
Q[G]: 230.0nC

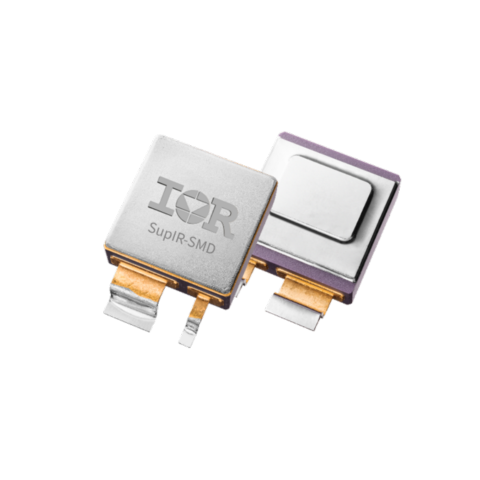

Package: SupIR-SMD
TID max: 100.0Krad(Si)
Die Size: 6
QPL Part Number: 2N7666U2A
ESD Class: 3B
Polarity: P
Generation: R9
Optional TID Rating(kRad(si)): 100 300
V[F] max: -1.3V
Qualification: COTS
V[BRDSS] min: -200.0V
R[DS (on)](@25°C) max: 175.0mΩ
TID max: 100.0Krad(Si)
Polarity: P
V[F] max: -1.3V
Generation: R9
I[D ](@25°C) max: -14.0A
Die Size: 3
Optional TID Rating(kRad(si)): 100 300
Q[G]: 49.0nC
Package: TO-257AA Tabless Low Ohmic
ESD Class: Class 2
Configuration: Discrete
I[D ](@100°C) max: -17.0A
I[D ](@25°C) max: -27.0A
V[F] max: -3.3V
Package: TO-254AA
Polarity: P
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7426
TID max: 300.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 160.0mΩ
Generation: R4
Q[G]: 300.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -0.33A
I[D ](@25°C) max: -0.53A
V[F] max: -5.0V

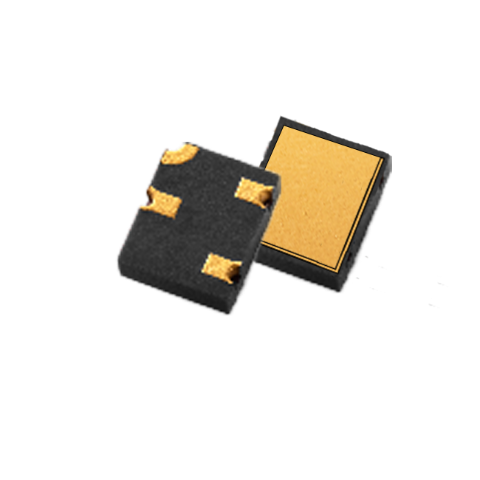

Package: UB
Polarity: P
V[BRDSS] min: -60.0V
QPL Part Number: 2N7626UB
TID max: 300.0Krad(Si)
ESD Class: Class 0
R[DS (on)](@25°C) max: 1300.0mΩ
Generation: R7
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 3.6nC
Die Size: 2
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -8.0A
I[D ](@25°C) max: -12.5A
V[F] max: -5.0V

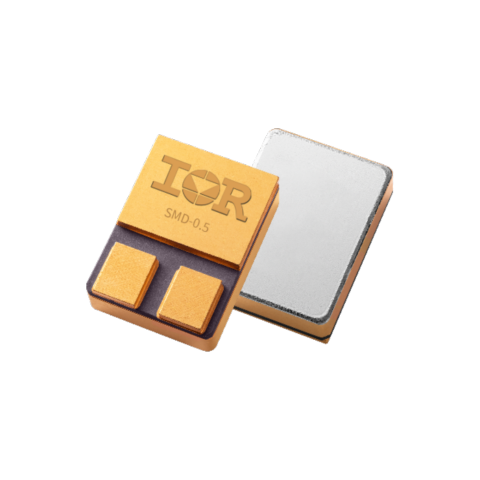

Package: SMD-0.5
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7545U3
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 205.0mΩ
Generation: R5
Qualification: COTS
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -45.0A
I[D ](@25°C) max: -45.0A
V[F] max: -5.0V
Package: TO-254AA Tabless Low Ohmic
Polarity: P
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7524D4
TID max: 300.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 18.0mΩ
Generation: R5
Q[G]: 160.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Configuration: Discrete
I[D ](@100°C) max: -14.0A
I[D ](@25°C) max: -22.0A
V[F] max: -3.0V

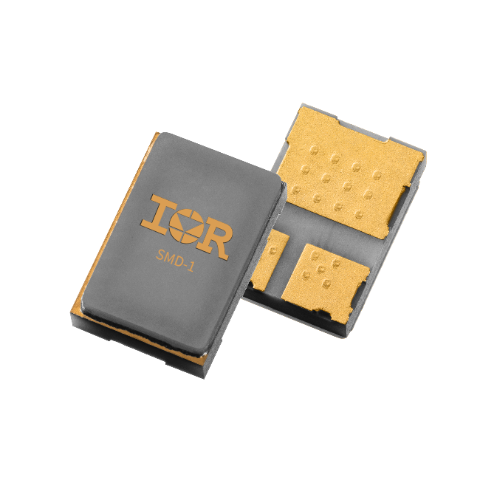

Package: SMD-1
Polarity: P
Die Size: 5
V[BRDSS] min: -100.0V
QPL Part Number: 2N7422U
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 80.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Q[G]: 200.0nC
Language: SPICE
Voltage Class: 100.0V
Qualification: COTS
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -2.4A
I[D ](@25°C) max: -4.0A
V[F] max: -5.0V
Package: 18-pin LCC
Polarity: P
Die Size: 3
V[BRDSS] min: -200.0V
QPL Part Number: 2N7390U
TID max: 300.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 800.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
