Configuration: Discrete
I[D ](@100°C) max: -17.0A
I[D ](@25°C) max: -27.0A
V[F] max: -3.3V
Package: TO-254AA
Polarity: P
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7426
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 160.0mΩ
Generation: R4
Q[G]: 300.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V

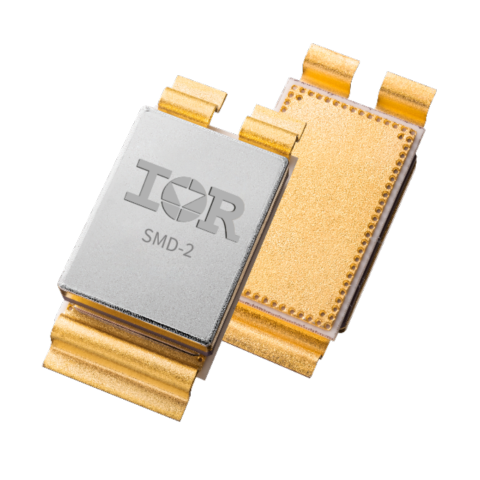

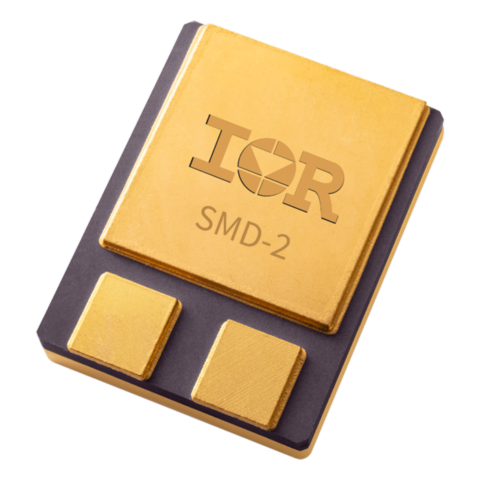

Package: SMD-2
Polarity: P
Qualification: COTS
Die Size: 6
V[BRDSS] min: -30.0V
QPL Part Number: 2N7523U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 13.0mΩ
Generation: R5
Q[G]: 220.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
V[BRDSS] min: -200.0V
I[D ](@25°C) max: -62.0A
V[F] max: -1.3V

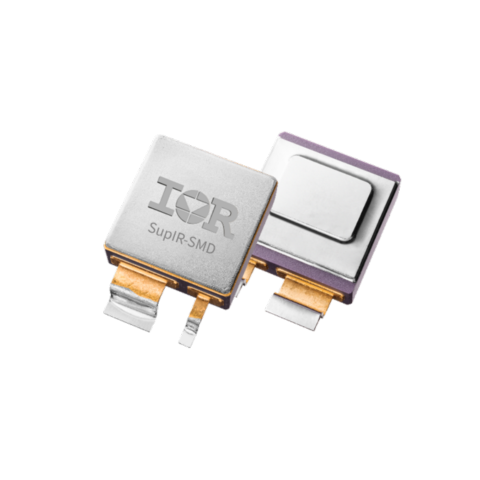

Package: SupIR-SMD
Polarity: P
Q[G]: 230.0nC
Qualification: DLA
QPL Part Number: 2N7666U2A
Optional TID Rating(kRad(si)): 100 300
TID max: 300.0Krad(Si)
ESD Class: Class 3B
R[DS (on)](@25°C) max: 32.0mΩ
Generation: R9
Die Size: 6
Configuration: Discrete
I[D ](@100°C) max: -21.0A
I[D ](@25°C) max: -33.5A
V[F] max: -5.0V
Package: SupIR-SMD
Polarity: P
V[BRDSS] min: -200.0V
QPL Part Number: 2N7549U2A
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 102.0mΩ
Generation: R5
Die Size: 6
Q[G]: 180.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Configuration: Discrete
I[D ](@100°C) max: -4.1A
I[D ](@25°C) max: -6.5A
V[F] max: -3.0V
Package: 18-pin LCC
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7389U
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 300.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Q[G]: 45.0nC
Qualification: COTS
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -4.1A
I[D ](@25°C) max: -6.5A
V[F] max: -3.0V
Package: 18-pin LCC
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7389U
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 300.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V
Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7524U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 15.0mΩ
Generation: R5
Q[G]: 200.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Qualification: DLA
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -14.0A
I[D ](@25°C) max: -22.0A
V[F] max: -3.0V

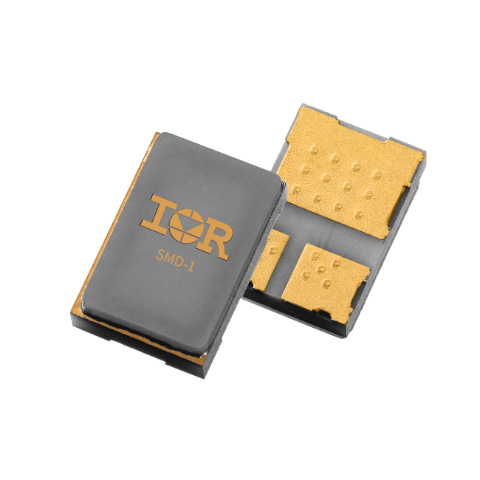

Package: SMD-1
Polarity: P
Die Size: 5
V[BRDSS] min: -100.0V
QPL Part Number: 2N7422U
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 80.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 200.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -24.0A
I[D ](@25°C) max: -38.0A
V[F] max: -3.3V
Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -100.0V
QPL Part Number: 2N7425U
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 68.0mΩ
Generation: R4
Q[G]: 290.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Qualification: COTS
Product Category: Rad hard MOSFETS
V[BRDSS] min: -61.0V
V[F] max: -1.3V
Package: SupIR-SMD
Polarity: P
Q[G]: 221.0nC
Qualification: DLA
QPL Part Number: 2N7664U2A
Optional TID Rating(kRad(si)): 100 300
TID max: 300.0Krad(Si)
ESD Class: Class B
Generation: R9
Die Size: 6
I[D ](@25°C) max: -100.0A
R[DS (on)](@25°C) max: 9.0mΩ
