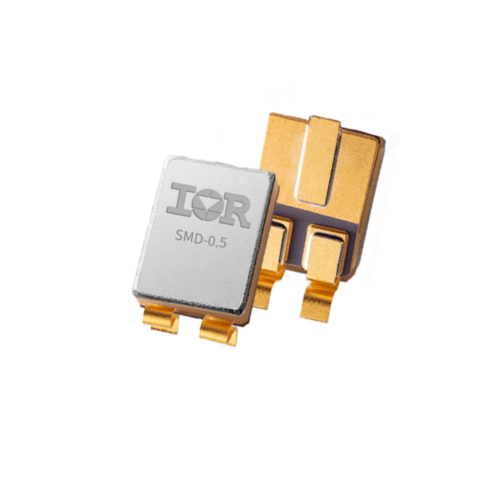

Configuration: Discrete I[D ](@100°C) max: -14.9A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7624U3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Qualification: COTS Q[G]: 36.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -4.1A I[D ](@25°C) max: -6.5A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: COTS Die Size: 3 V[BRDSS] min: -200.0V TID max: 100.0Krad(Si) ESD Class: Class 1B SEE: Yes R[DS (on)](@25°C) max: 800.0mΩ Generation: R4 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -14.9A I[D ](@25°C) max: -22.0A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Die Size: 3 V[BRDSS] min: -60.0V QPL Part Number: 2N7624U3 TID max: 100.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 72.0mΩ Generation: R7 Qualification: COTS Q[G]: 36.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -35.0A V[F] max: -3.0V Package: TO-254AA Polarity: P Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7424 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 50.0mΩ Generation: R4 Q[G]: 300.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Qualification: COTS Product Category: Rad hard MOSFETS

V[BRDSS] min: -100.0V I[D ](@25°C) max: -91.0A R[DS (on)](@25°C) max: 17.0mΩ Q[G]: 230.0nC Package: SupIR-SMD TID max: 300.0Krad(Si) Die Size: 6 QPL Part Number: 2N7665U2A ESD Class: 3B Polarity: P Generation: R9 Optional TID Rating(kRad(si)): 100 300 V[F] max: -1.3V Qualification: DLA

Configuration: Discrete I[D ](@100°C) max: -4.3A I[D ](@25°C) max: -6.7A V[F] max: -5.0V Package: TO-205AF Polarity: P Qualification: COTS Die Size: 3 V[BRDSS] min: -100.0V TID max: 300.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 240.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 40.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

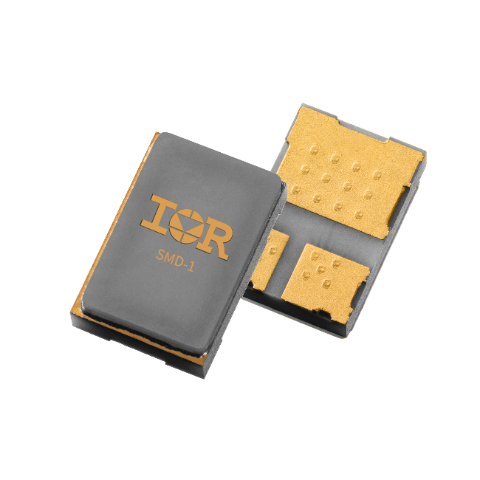

Configuration: Discrete I[D ](@100°C) max: -14.0A I[D ](@25°C) max: -22.0A V[F] max: -3.0V Package: SMD-1 Polarity: P Die Size: 5 V[BRDSS] min: -100.0V QPL Part Number: 2N7422U TID max: 300.0Krad(Si) ESD Class: Class 2 R[DS (on)](@25°C) max: 80.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Q[G]: 200.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -8.0A I[D ](@25°C) max: -12.5A V[F] max: -5.0V Package: SMD-0.5 Polarity: P Qualification: QIRL Die Size: 3 V[BRDSS] min: -100.0V QPL Part Number: 2N7545U3 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 205.0mΩ Generation: R5 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -45.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Tabless Low Ohmic Polarity: P Die Size: 6 V[BRDSS] min: -60.0V QPL Part Number: 2N7524D4 TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 18.0mΩ Generation: R5 Q[G]: 160.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA

V[BRDSS] min: -100.0V I[D ](@25°C) max: -91.0A R[DS (on)](@25°C) max: 17.0mΩ Q[G]: 230.0nC Package: SupIR-SMD TID max: 100.0Krad(Si) QPL Part Number: 2N7665U2A Die Size: 6 ESD Class: 3B Polarity: P Optional TID Rating(kRad(si)): 100 300 V[F] max: -1.3V Generation: R9 Qualification: COTS Language: SPICE Voltage Class max: -100.0V Product Category: Rad hard MOSFETS
