Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -100.0V QPL Part Number: 2N7550T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 170.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -13.0A I[D ](@25°C) max: -20.0A V[F] max: -5.0V Package: TO-257AA Tabless Low Ohmic Polarity: P Qualification: COTS Die Size: 3 V[BRDSS] min: -60.0V TID max: 100.0Krad(Si) ESD Class: Class 1C R[DS (on)](@25°C) max: 87.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

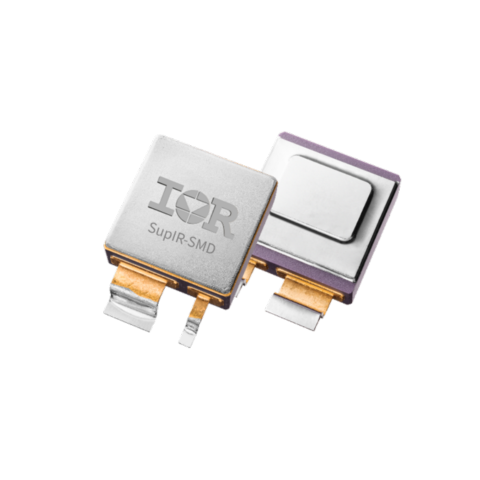

V[BRDSS] min: -200.0V I[D ](@25°C) max: -62.0A V[F] max: -1.3V Package: SupIR-SMD Polarity: P Q[G]: 230.0nC Qualification: DLA QPL Part Number: 2N7666U2A Optional TID Rating(kRad(si)): 100 300 TID max: 100.0Krad(Si) ESD Class: Class 3B R[DS (on)](@25°C) max: 32.0mΩ Generation: R9 Die Size: 6

Qualification: COTS V[BRDSS] min: -200.0V R[DS (on)](@25°C) max: 175.0mΩ Package: Tabless TO-257A TID max: 300.0Krad(Si) QPL Part Number: 2N7661D5 ESD Class: 2 Polarity: P V[F] max: -1.3V Generation: R9 Die Size: 3 I[D ](@25°C) max: -14.0A Q[G]: 49.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -47.0A V[F] max: -5.0V Package: SupIR-SMD Polarity: P V[BRDSS] min: -100.0V QPL Part Number: 2N7550U2A TID max: 100.0Krad(Si) ESD Class: Class 3A SEE: Yes R[DS (on)](@25°C) max: 49.0mΩ Generation: R5 Die Size: 6 Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: DLA Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -7.0A I[D ](@25°C) max: -11.0A V[F] max: -3.0V Package: SMD-0.5 Polarity: P Qualification: COTS Die Size: 3 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 290.0mΩ Generation: R4 Q[G]: 45.0nC Optional TID Rating(kRad(si)): 100 300 Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -30.0A I[D ](@25°C) max: -45.0A V[F] max: -5.0V Package: TO-254AA Tabless SMD Polarity: P Die Size: 6 V[BRDSS] min: -100.0V TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 50.0mΩ Generation: R5 Qualification: QIRL Q[G]: 170.0nC Optional TID Rating(kRad(si)): 100 300

Configuration: Discrete I[D ](@100°C) max: -18.0A I[D ](@25°C) max: -29.0A V[F] max: -3.0V Package: SMD-2 Polarity: P Die Size: 6 V[BRDSS] min: -200.0V QPL Part Number: 2N7426U TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 154.0mΩ Generation: R4 Q[G]: 300.0nC Optional TID Rating(kRad(si)): 100 300 Qualification: COTS

Configuration: Discrete I[D ](@100°C) max: -4.0A I[D ](@25°C) max: -6.5A V[F] max: -5.0V Package: TO-257AA Polarity: P Die Size: 3 V[BRDSS] min: -200.0V QPL Part Number: 2N7383 TID max: 100.0Krad(Si) ESD Class: Class 1B R[DS (on)](@25°C) max: 800.0mΩ Generation: R4 Optional TID Rating(kRad(si)): 100 300 Qualification: COTS Q[G]: 45.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS

Configuration: Discrete I[D ](@100°C) max: -20.0A I[D ](@25°C) max: -32.0A V[F] max: -5.0V Package: TO-254AA Low Ohmic Polarity: P Qualification: COTS Die Size: 6 V[BRDSS] min: -200.0V QPL Part Number: 2N7549T1 TID max: 100.0Krad(Si) ESD Class: Class 3A R[DS (on)](@25°C) max: 103.0mΩ Generation: R5 Optional TID Rating(kRad(si)): 100 300 Q[G]: 180.0nC Language: SPICE Voltage Class: 100.0V Product Category: Rad hard MOSFETS
