Configuration: Discrete
I[D ](@100°C) max: -22.5A
I[D ](@25°C) max: -35.5A
V[F] max: -5.0V

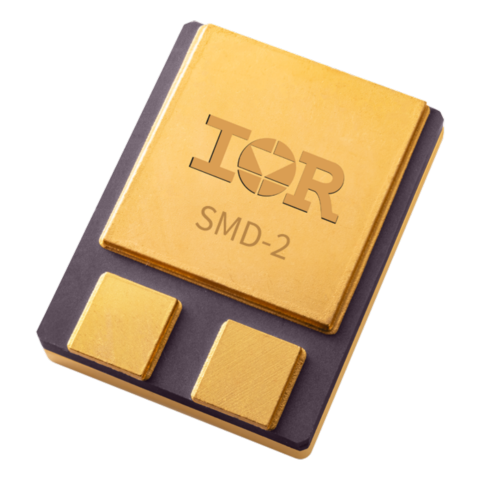

Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -200.0V
QPL Part Number: 2N7549U2
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 102.0mΩ
Generation: R5
Qualification: QIRL
Q[G]: 180.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Qualification: COTS
V[BRDSS] min: -200.0V
I[D ](@25°C) max: -25.0A
R[DS (on)](@25°C) max: 34.0mΩ
Q[G]: 230.0nC
Package: Low-Ohmic TO-254AA
TID max: 100.0Krad(Si)
Die Size: 6
QPL Part Number: 2N7666T1
ESD Class: 3B
Polarity: P
Optional TID Rating(kRad(si)): 100 300
V[F] max: -1.3V
Generation: R9
Configuration: Discrete
I[D ](@100°C) max: -16.0A
I[D ](@25°C) max: -22.0A
V[F] max: -5.0V

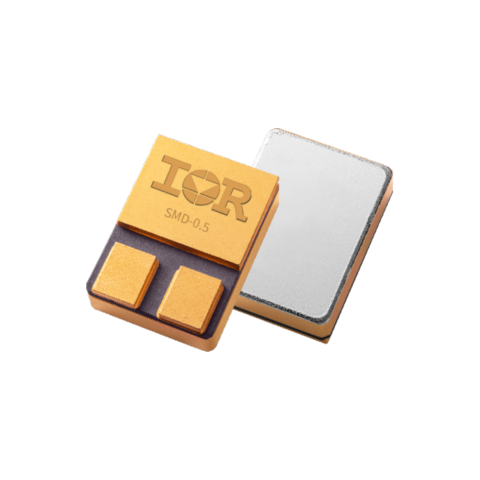

Package: SMD-0.5
Polarity: P
Qualification: QIRL
Die Size: 3
V[BRDSS] min: -60.0V
QPL Part Number: 2N7520U3
TID max: 100.0Krad(Si)
ESD Class: Class 1C
R[DS (on)](@25°C) max: 85.0mΩ
Generation: R5
Q[G]: 45.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -30.0A
I[D ](@25°C) max: -48.0A
V[F] max: -3.0V

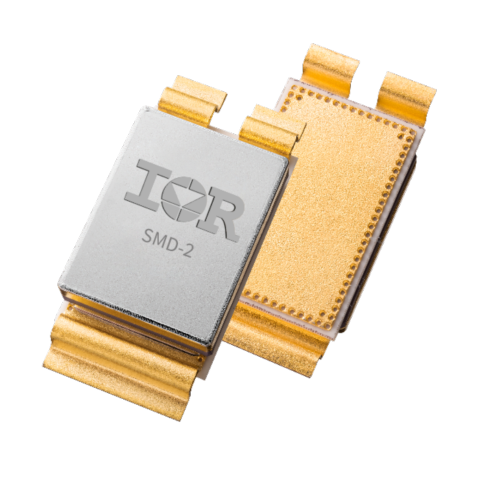

Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -60.0V
QPL Part Number: 2N7424U
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 45.0mΩ
Generation: R4
Q[G]: 300.0nC
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
V[BRDSS] min: -60.0V
I[D ](@25°C) max: -100.0A
V[F] max: -1.3V

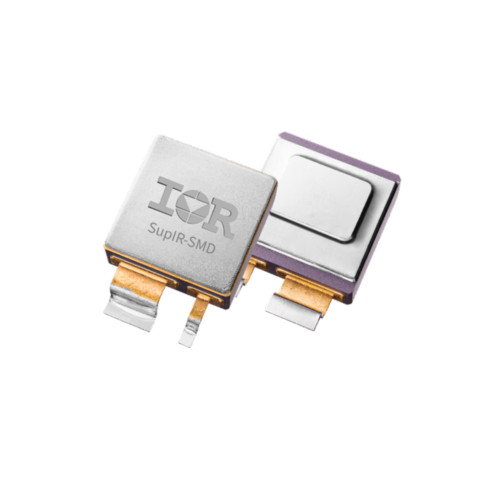

Package: SupIR-SMD
Polarity: P
Q[G]: 221.0nC
Qualification: DLA
QPL Part Number: 2N7664U2A
Optional TID Rating(kRad(si)): 100 300
TID max: 100.0Krad(Si)
ESD Class: Class B
R[DS (on)](@25°C) max: 9.0mΩ
Generation: R9
Die Size: 6
Configuration: Discrete
I[D ](@100°C) max: -56.0A
I[D ](@25°C) max: -56.0A
V[F] max: -5.0V
Package: SupIR-SMD
Polarity: P
V[BRDSS] min: -30.0V
QPL Part Number: 2N7523U2A
TID max: 100.0Krad(Si)
ESD Class: Class 3A
SEE: Yes
R[DS (on)](@25°C) max: 13.0mΩ
Generation: R5
Q[G]: 240.0nC
Die Size: 6
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Configuration: Discrete
I[D ](@100°C) max: -24.0A
I[D ](@25°C) max: -38.0A
V[F] max: -3.3V
Package: SMD-2
Polarity: P
Die Size: 6
V[BRDSS] min: -100.0V
QPL Part Number: 2N7425U
TID max: 100.0Krad(Si)
ESD Class: Class 3A
R[DS (on)](@25°C) max: 68.0mΩ
Generation: R4
Q[G]: 290.0nC
Optional TID Rating(kRad(si)): 100 300
Language: SPICE
Voltage Class: 100.0V
Qualification: COTS
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -2.0A
I[D ](@25°C) max: -3.1A
V[F] max: -5.0V

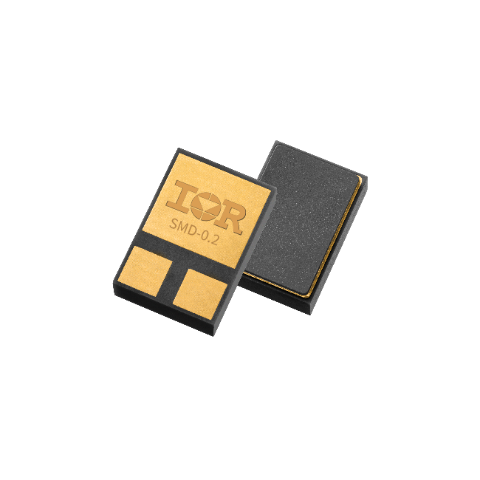

Package: SMD-0.2
Polarity: P
Die Size: 1
V[BRDSS] min: -100.0V
QPL Part Number: 2N7506U8
TID max: 300.0Krad(Si)
ESD Class: Class 1A
R[DS (on)](@25°C) max: 1200.0mΩ
Generation: R5
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 11.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -14.0A
I[D ](@25°C) max: -22.0A
V[F] max: -3.0V

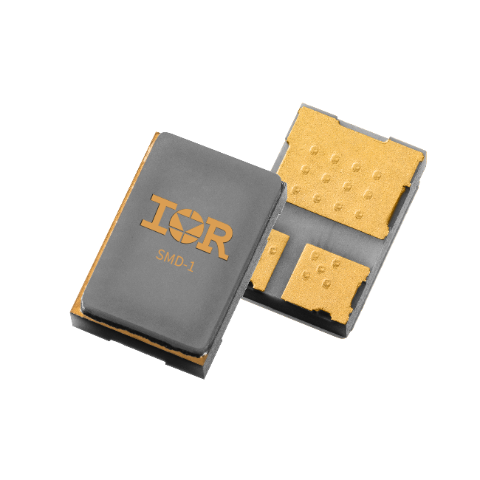

Package: SMD-1
Polarity: P
Die Size: 5
V[BRDSS] min: -100.0V
QPL Part Number: 2N7422U
TID max: 100.0Krad(Si)
ESD Class: Class 2
R[DS (on)](@25°C) max: 80.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Q[G]: 200.0nC
Language: SPICE
Voltage Class: 100.0V
Qualification: COTS
Product Category: Rad hard MOSFETS
Configuration: Discrete
I[D ](@100°C) max: -7.0A
I[D ](@25°C) max: -11.0A
V[F] max: -3.0V
Package: TO-257AA
Polarity: P
Die Size: 3
V[BRDSS] min: -100.0V
QPL Part Number: 2N7382
TID max: 100.0Krad(Si)
ESD Class: Class 1B
R[DS (on)](@25°C) max: 300.0mΩ
Generation: R4
Optional TID Rating(kRad(si)): 100 300
Qualification: DLA
Q[G]: 45.0nC
Language: SPICE
Voltage Class: 100.0V
Product Category: Rad hard MOSFETS
