Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 3 Ron (typ) (mΩ): 13.8 Shutdown current (ISD) (typ) (µA): 0.76 Quiescent current (Iq) (typ) (µA): 38 Soft start: Fixed Rise Time Current limit type: None Features: Reverse current protection Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 3 Ron (typ) (mΩ): 13.8 更多

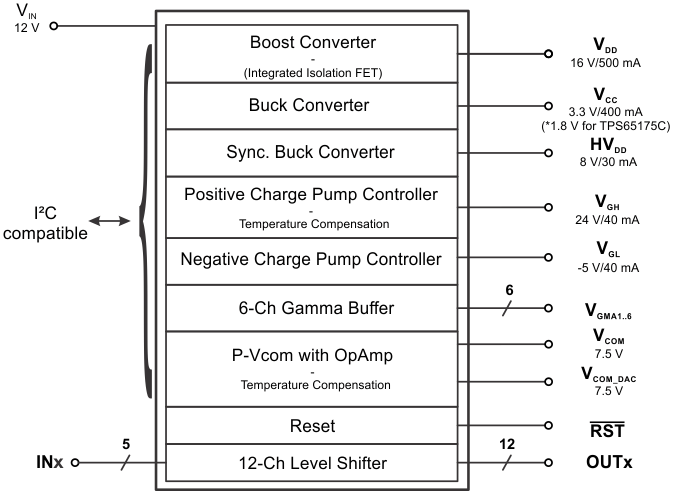

Display type: LCD unipolar IC integration: Gamma buffer, LCD bias, LCD level shifter, VCOM Vin (min) (V): 8.6 Vin (max) (V): 15.5 Applications: 13 to 21 inches, 21 inches and above Source driver voltage (min) (V): 12.7 Source driver voltage (max) (V): 19 Level shifter/scan driver (Ch): 12 V_POS (min) (V): 19 V_POS (max) (V): 34 V_NEG (min) (V): -8.1 V_NEG (max) (V): -1.8 Topology: Boost, Buck Rating: Catalog Operating temperature range (°C): -40 to 85 Display type: LCD unipolar IC integration: Gamma buffer, LCD bias, LCD level shifter, VCOM Vin (min) (V): 8.6 Vin (max) (V): 15.5 Applications: 13 to 21 inches, 21 inches and above 更多

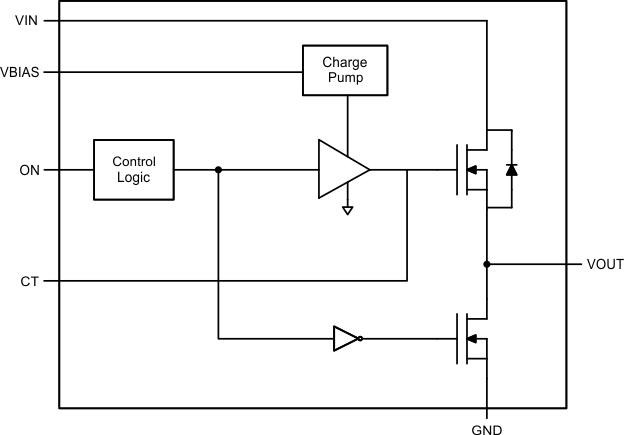

Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 4 Ron (typ) (mΩ): 22 Shutdown current (ISD) (typ) (µA): 1.37 Quiescent current (Iq) (typ) (µA): 50 Soft start: Adjustable Rise Time Current limit type: None Features: Quick output discharge Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control Number of channels: 1 Vin (min) (V): 0.8 Vin (max) (V): 5.5 Imax (A): 4 Ron (typ) (mΩ): 22 更多

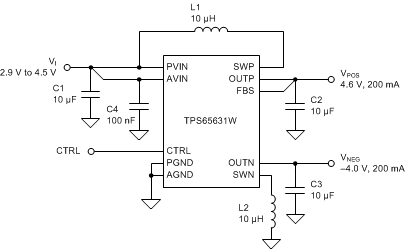

Display type: AMOLED IC integration: AMOLED bias Vin (min) (V): 2.9 Vin (max) (V): 4.4 Applications: 7 inches or less Level shifter/scan driver (Ch): 0 V_POS (min) (V): 4.6 V_POS (max) (V): 4.6 V_NEG (min) (V): -4.4 V_NEG (max) (V): -1.4 Features: Digital control interface Topology: Boost, Buck-Boost Rating: Catalog Operating temperature range (°C): -40 to 85 Display type: AMOLED IC integration: AMOLED bias Vin (min) (V): 2.9 Vin (max) (V): 4.4 Applications: 7 inches or less Level shifter/scan driver (Ch): 0 更多

Display type: LCD unipolar IC integration: Gamma buffer, LCD bias, VCOM Vin (min) (V): 2.6 Vin (max) (V): 6 Applications: 13 to 21 inches, 7 to 13 inches Source driver voltage (min) (V): 6 Source driver voltage (max) (V): 9.1 Level shifter/scan driver (Ch): 0 Topology: Boost, Buck Rating: Catalog Operating temperature range (°C): -40 to 85 Display type: LCD unipolar IC integration: Gamma buffer, LCD bias, VCOM Vin (min) (V): 2.6 Vin (max) (V): 6 Applications: 13 to 21 inches, 7 to 13 inches Source driver voltage (min) (V): 6 Source driver voltage (max) (V): 9.1 Level shifter/scan driver (Ch): 0 Topology: Boost, Buck 更多

Product type: Charge port controller Vin (min) (V): 4.5 Vin (max) (V): 5.5 Continuous current (max) (A): 2.2 Current limit (A): 0.25 to 2.7 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 1 Current limit accuracy at 1 A: 0.1 Rating: Automotive Product type: Charge port controller Vin (min) (V): 4.5 Vin (max) (V): 5.5 Continuous current (max) (A): 2.2 Current limit (A): 0.25 to 2.7 Operating temperature range (°C): -40 to 125 Enable: Active High Number of switches: 1 Current limit accuracy at 1 A: 0.1 Rating: Automotive

Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 3 Ron (typ) (mΩ): 13.8 Shutdown current (ISD) (typ) (µA): 0.76 Quiescent current (Iq) (typ) (µA): 38 Soft start: Fixed Rise Time Current limit type: None Features: Quick output discharge, Reverse current protection Rating: Catalog Operating temperature range (°C): -40 to 85 FET: Internal Device type: Load switches Function: Inrush current control, Reverse current blocking Number of channels: 1 Vin (min) (V): 1 Vin (max) (V): 5.5 Imax (A): 3 Ron (typ) (mΩ): 13.8 更多

Display type: LCD bipolar IC integration: LCD bias Vin (min) (V): 2.9 Vin (max) (V): 5 Applications: 7 inches or less, 7 to 13 inches Source driver voltage (min) (V): -5 Source driver voltage (max) (V): 5 Level shifter/scan driver (Ch): 0 V_POS (min) (V): 5 V_POS (max) (V): 5 V_NEG (min) (V): -5 V_NEG (max) (V): -5 Topology: Split-Rail Rating: Catalog Operating temperature range (°C): -40 to 85 Display type: LCD bipolar IC integration: LCD bias Vin (min) (V): 2.9 Vin (max) (V): 5 Applications: 7 inches or less, 7 to 13 inches 更多

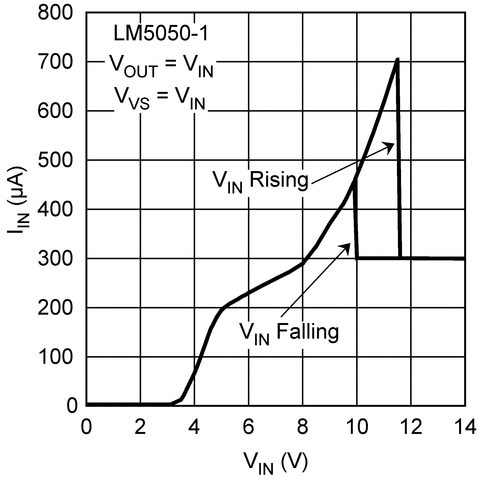

Vin (min) (V): 5 Vin (max) (V): 75 Number of channels: 1 Iq (typ) (mA): 0.4 Iq (max) (mA): 0.79 TI functional safety category: Functional Safety-Capable FET: External single FET IGate source (typ) (µA): 31 IGate source (max) (µA): 41 IGate sink (typ) (mA): 2.8 IGate pulsed (typ) (A): 2.8 Operating temperature range (°C): -40 to 150 VSense reverse (typ) (mV): -41, -28 Design support: EVM, Simulation Model Rating: Automotive Imax (A): 250 VGS (max) (V): 14 Shutdown current (ISD) (mA) (A): 0.1 Device type: ORing controller Product type: ORing controller 更多

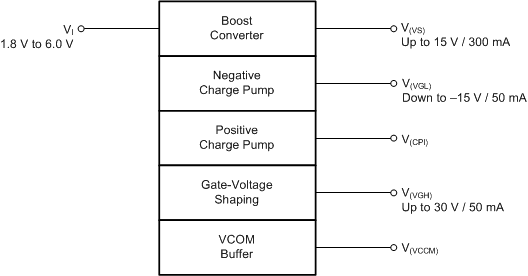

Display type: Automotive, LCD unipolar IC integration: LCD bias, VCOM Vin (min) (V): 1.8 Vin (max) (V): 6 Applications: 7 inches or less, 7 to 13 inches Source driver voltage (min) (V): 5 Source driver voltage (max) (V): 15 Level shifter/scan driver (Ch): 0 V_POS (max) (V): 30 V_NEG (max) (V): -2 Features: Adjustable sequencing, GPM or GVS, VCOM or op amp Topology: Boost Rating: Automotive Operating temperature range (°C): -40 to 125 Display type: Automotive, LCD unipolar IC integration: LCD bias, VCOM Vin (min) (V): 1.8 Vin (max) (V): 6 Applications: 7 inches or less, 7 to 13 inches Source driver voltage (min) (V): 5 更多
