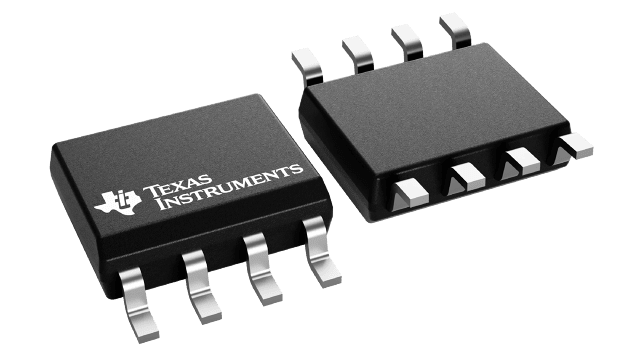

OPA2613


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 具有电流限制功能的双通道宽带、高输出电流运算放大器

Architecture: Voltage FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 125 BW at Acl (MHz): 230 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 60 Vn at flatband (typ) (nV√Hz): 1.8 Vn at 1 kHz (typ) (nV√Hz): 1.9 Iq per channel (typ) (mA): 6 Vos (offset voltage at 25°C) (max) (mV): 1 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 100 Input bias current (max) (pA): 12000 Offset drift (typ) (µV/°C): 3.3 Iout (typ) (mA): 350 2nd harmonic (dBc): 70
3rd harmonic (dBc): 84 Frequency of harmonic distortion measurement (MHz): 1 Architecture: Voltage FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 5 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 125 BW at Acl (MHz): 230 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 60 Vn at flatband (typ) (nV√Hz): 1.8 Vn at 1 kHz (typ) (nV√Hz): 1.9 Iq per channel (typ) (mA): 6 Vos (offset voltage at 25°C) (max) (mV): 1 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 100 Input bias current (max) (pA): 12000 Offset drift (typ) (µV/°C): 3.3 Iout (typ) (mA): 350 2nd harmonic (dBc): 70 3rd harmonic (dBc): 84 Frequency of harmonic distortion measurement (MHz): 1

OPA2846


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 双通道、宽带、低噪声、电压反馈运算放大器

Architecture: Voltage FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 1750 BW at Acl (MHz): 500 Acl, min spec gain (V/V): 7 Slew rate (typ) (V/µs): 625 Vn at flatband (typ) (nV√Hz): 1.2 Vn at 1 kHz (typ) (nV√Hz): 1.2 Iq per channel (typ) (mA): 12.6 Vos (offset voltage at 25°C) (max) (mV): 0.65 Rail-to-rail: No Features: Decompensated Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 110 Input bias current (max) (pA): 20000000 Offset drift (typ) (µV/°C): 1.6 Iout (typ) (mA): 80
2nd harmonic (dBc): 76 3rd harmonic (dBc): 109 Frequency of harmonic distortion measurement (MHz): 5 Architecture: Voltage FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 1750 BW at Acl (MHz): 500 Acl, min spec gain (V/V): 7 Slew rate (typ) (V/µs): 625 Vn at flatband (typ) (nV√Hz): 1.2 Vn at 1 kHz (typ) (nV√Hz): 1.2 Iq per channel (typ) (mA): 12.6 Vos (offset voltage at 25°C) (max) (mV): 0.65 Rail-to-rail: No Features: Decompensated Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 110 Input bias current (max) (pA): 20000000 Offset drift (typ) (µV/°C): 1.6 Iout (typ) (mA): 80 2nd harmonic (dBc): 76 3rd harmonic (dBc): 109 Frequency of harmonic distortion measurement (MHz): 5

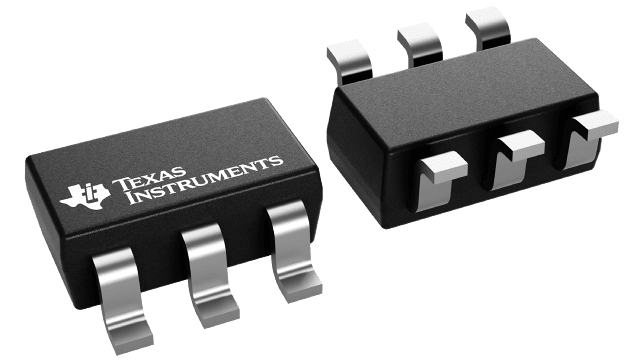

LMH6704


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 具有禁用功能的 650MHz 可选增益缓冲器

Architecture: Fixed Gain/Buffer Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 8 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 650 BW at Acl (MHz): 650 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 3000 Vn at flatband (typ) (nV√Hz): 9.3 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 7 Rating: Catalog Operating temperature range (°C): -40 to 85 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 35 Iout (typ) (mA): 90 2nd harmonic (dBc): 62 3rd harmonic (dBc): 78 Frequency of harmonic distortion measurement (MHz): 10 Architecture: Fixed Gain/Buffer
Number of channels: 1 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 8 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 GBW (typ) (MHz): 650 BW at Acl (MHz): 650 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 3000 Vn at flatband (typ) (nV√Hz): 9.3 Iq per channel (typ) (mA): 11.5 Vos (offset voltage at 25°C) (max) (mV): 7 Rating: Catalog Operating temperature range (°C): -40 to 85 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 35 Iout (typ) (mA): 90 2nd harmonic (dBc): 62 3rd harmonic (dBc): 78 Frequency of harmonic distortion measurement (MHz): 10

THS3092


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 双通道、高电压、低失真、电流反馈运算放大器

Architecture: Current FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30 GBW (typ) (MHz): 145 BW at Acl (MHz): 145 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 5700 Vn at flatband (typ) (nV√Hz): 2 Vn at 1 kHz (typ) (nV√Hz): 2 Iq per channel (typ) (mA): 9.5 Vos (offset voltage at 25°C) (max) (mV): 3 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 78 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 10 Iout (typ) (mA): 250 2nd harmonic (dBc): 66
3rd harmonic (dBc): 76 Frequency of harmonic distortion measurement (MHz): 10 Architecture: Current FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30 GBW (typ) (MHz): 145 BW at Acl (MHz): 145 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 5700 Vn at flatband (typ) (nV√Hz): 2 Vn at 1 kHz (typ) (nV√Hz): 2 Iq per channel (typ) (mA): 9.5 Vos (offset voltage at 25°C) (max) (mV): 3 Rail-to-rail: No Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 78 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 10 Iout (typ) (mA): 250 2nd harmonic (dBc): 66 3rd harmonic (dBc): 76 Frequency of harmonic distortion measurement (MHz): 10

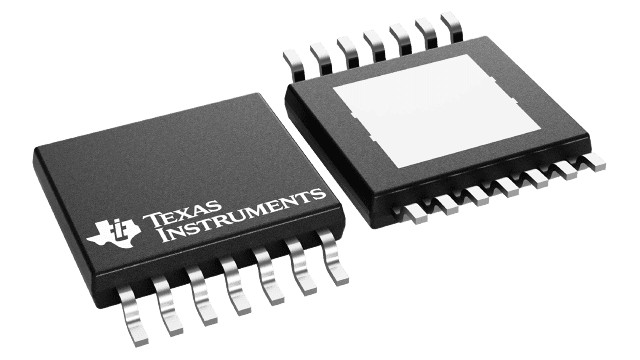

THS3096


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 具有断电功能的双通道高电压、低失真、电流反馈运算放大器

Architecture: Current FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30 GBW (typ) (MHz): 145 BW at Acl (MHz): 145 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 5700 Vn at flatband (typ) (nV√Hz): 2 Vn at 1 kHz (typ) (nV√Hz): 2 Iq per channel (typ) (mA): 9.5 Vos (offset voltage at 25°C) (max) (mV): 3 Rail-to-rail: No Features: Shutdown Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 78 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 10 Iout (typ) (mA): 250
2nd harmonic (dBc): 66 3rd harmonic (dBc): 76 Frequency of harmonic distortion measurement (MHz): 10 Architecture: Current FB Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 10 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30 GBW (typ) (MHz): 145 BW at Acl (MHz): 145 Acl, min spec gain (V/V): 1 Slew rate (typ) (V/µs): 5700 Vn at flatband (typ) (nV√Hz): 2 Vn at 1 kHz (typ) (nV√Hz): 2 Iq per channel (typ) (mA): 9.5 Vos (offset voltage at 25°C) (max) (mV): 3 Rail-to-rail: No Features: Shutdown Rating: Catalog Operating temperature range (°C): -40 to 85 CMRR (typ) (dB): 78 Input bias current (max) (pA): 15000000 Offset drift (typ) (µV/°C): 10 Iout (typ) (mA): 250 2nd harmonic (dBc): 66 3rd harmonic (dBc): 76 Frequency of harmonic distortion measurement (MHz): 10

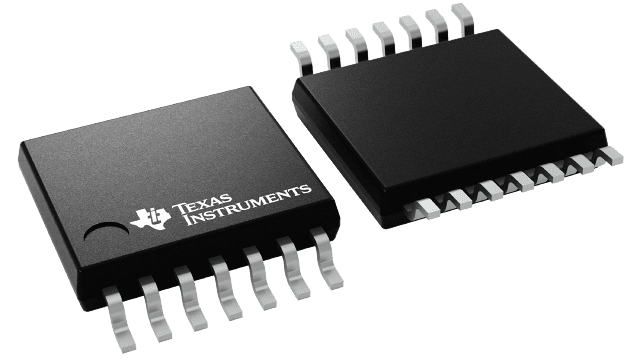

TLC2254A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 汽车类高级 LinCMOS 轨到轨、超低功耗精密运算放大器

Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.4 Vos (offset voltage at 25°C) (max) (mV): 0.85 Offset drift (typ) (µV/°C): 0.5 Input bias current (max) (pA): 60 GBW (typ) (MHz): 0.2 Features: High Cload Drive Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01
Output swing headroom (to positive supply) (typ) (V): -0.02 THD + N at 1 kHz (typ) (%): 0.2 Number of channels: 4 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.4 Vos (offset voltage at 25°C) (max) (mV): 0.85 Offset drift (typ) (µV/°C): 0.5 Input bias current (max) (pA): 60 GBW (typ) (MHz): 0.2 Features: High Cload Drive Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.02 THD + N at 1 kHz (typ) (%): 0.2

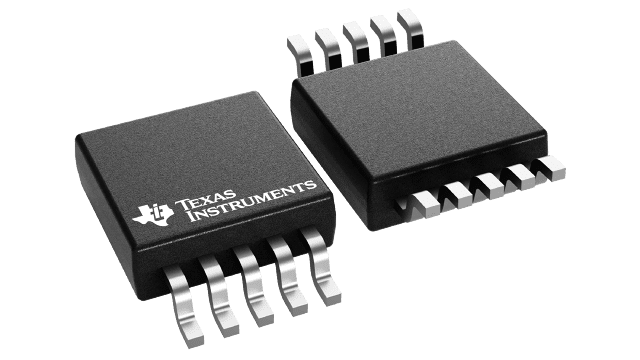

OPA2734


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 零温漂系列、具有关断功能的双通道 0.05uV/℃(最大值)单电源 CMOS 运算放大器

Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.005 Offset drift (typ) (µV/°C): 0.01 Input bias current (max) (pA): 200 GBW (typ) (MHz): 1.6 Features: Shutdown, Zero Drift Slew rate (typ) (V/µs): 1.5 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.6 Vn at 1 kHz (typ) (nV√Hz): 135 CMRR (typ) (dB): 130 Rating: Catalog Operating temperature range (°C): -40 to 85 Iout (typ) (A): 0.02 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -1.5 Output swing headroom (to negative supply) (typ) (V): 0.02
Output swing headroom (to positive supply) (typ) (V): -0.02 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.005 Offset drift (typ) (µV/°C): 0.01 Input bias current (max) (pA): 200 GBW (typ) (MHz): 1.6 Features: Shutdown, Zero Drift Slew rate (typ) (V/µs): 1.5 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.6 Vn at 1 kHz (typ) (nV√Hz): 135 CMRR (typ) (dB): 130 Rating: Catalog Operating temperature range (°C): -40 to 85 Iout (typ) (A): 0.02 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -1.5 Output swing headroom (to negative supply) (typ) (V): 0.02 Output swing headroom (to positive supply) (typ) (V): -0.02

OPA2735


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 双通道 0.05uV/°C(最大值)单电源 CMOS 运算放大器、零温漂系列

Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.005 Offset drift (typ) (µV/°C): 0.01 Input bias current (max) (pA): 200 GBW (typ) (MHz): 1.6 Features: Zero Drift Slew rate (typ) (V/µs): 1.5 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.6 Vn at 1 kHz (typ) (nV√Hz): 135 CMRR (typ) (dB): 130 Rating: Catalog Operating temperature range (°C): -40 to 85 Iout (typ) (A): 0.02 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -1.5 Output swing headroom (to negative supply) (typ) (V): 0.02
Output swing headroom (to positive supply) (typ) (V): -0.02 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 12 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 0.005 Offset drift (typ) (µV/°C): 0.01 Input bias current (max) (pA): 200 GBW (typ) (MHz): 1.6 Features: Zero Drift Slew rate (typ) (V/µs): 1.5 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.6 Vn at 1 kHz (typ) (nV√Hz): 135 CMRR (typ) (dB): 130 Rating: Catalog Operating temperature range (°C): -40 to 85 Iout (typ) (A): 0.02 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.1 Input common mode headroom (to positive supply) (typ) (V): -1.5 Output swing headroom (to negative supply) (typ) (V): 0.02 Output swing headroom (to positive supply) (typ) (V): -0.02

TLC2252A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 汽车类高级 LinCMOS 轨到轨极低功耗运算放大器

Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.4 Vos (offset voltage at 25°C) (max) (mV): 0.85 Offset drift (typ) (µV/°C): 0.5 Input bias current (max) (pA): 60 GBW (typ) (MHz): 0.2 Features: High Cload Drive Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01
Output swing headroom (to positive supply) (typ) (V): -0.02 THD + N at 1 kHz (typ) (%): 0.2 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.4 Vos (offset voltage at 25°C) (max) (mV): 0.85 Offset drift (typ) (µV/°C): 0.5 Input bias current (max) (pA): 60 GBW (typ) (MHz): 0.2 Features: High Cload Drive Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.02 THD + N at 1 kHz (typ) (%): 0.2

TLV2252-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器

描述: 汽车类、高级 LinCMOS™ 轨到轨超低功耗双通道运算放大器

Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 1.5 GBW (typ) (MHz): 0.2 Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Offset drift (typ) (µV/°C): 0.5 Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 60 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.06
THD + N at 1 kHz (typ) (%): 0.2 Number of channels: 2 Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16 Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7 Vos (offset voltage at 25°C) (max) (mV): 1.5 GBW (typ) (MHz): 0.2 Slew rate (typ) (V/µs): 0.12 Rail-to-rail: In to V-, Out Offset drift (typ) (µV/°C): 0.5 Iq per channel (typ) (mA): 0.035 Vn at 1 kHz (typ) (nV√Hz): 19 CMRR (typ) (dB): 83 Rating: Automotive Operating temperature range (°C): -40 to 125 Input bias current (max) (pA): 60 Iout (typ) (A): 0.008 Architecture: CMOS Input common mode headroom (to negative supply) (typ) (V): -0.3 Input common mode headroom (to positive supply) (typ) (V): -0.8 Output swing headroom (to negative supply) (typ) (V): 0.01 Output swing headroom (to positive supply) (typ) (V): -0.06 THD + N at 1 kHz (typ) (%): 0.2
