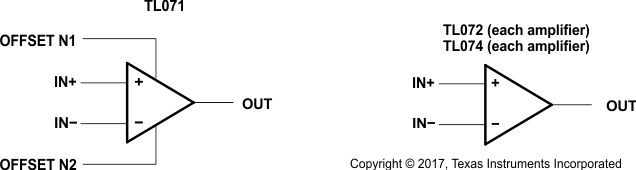

TL071
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 单通道、30V、3MHz、高压摆率 (13V/µs)、输入接近 V+、JFET 输入运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL071A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 单通道、30V、3MHz、高压摆率 (13V/µs)、6mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL071B
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 单通道、30V、3MHz、高压摆率 (13V/µs)、3mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL072
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 双通道、30V、3MHz、高压摆率 (13V/µs)、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL072A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 双通道、30V、3MHz、高压摆率 (13V/µs)、6mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL072B
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 双通道、30V、3MHz、高压摆率 (13V/µs)、3mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL074
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 四通道、30V、3MHz、高压摆率 (13V/µs)、输入接近 V+、JFET 输入运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL074A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 四通道、30V、3MHz、高压摆率 (13V/µs)、6mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
TL074B
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 四通道、30V、3MHz、高压摆率 (13V/µs)、3mV 失调电压、输入接近 V+、JFET 输入运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 100
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
更多
Output swing headroom (to positive supply) (typ) (V): -1.5
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 30
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 7
Rail-to-rail: In to V+
GBW (typ) (MHz): 3
Slew rate (typ) (V/µs): 13
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.4
Vn at 1 kHz (typ) (nV√Hz): 18
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 18
Features: Standard Amps
Input bias current (max) (pA): 200
CMRR (typ) (dB): 86
Iout (typ) (A): 0.01
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 1.5
Output swing headroom (to positive supply) (typ) (V): -1.5
