TLV2463A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有关断功能的双通道、6V、6.4MHz、1.5mV 失调电压、RRIO 运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 6.4
Slew rate (typ) (V/µs): 1.6
Vos (offset voltage at 25°C) (max) (mV): 1.5
Iq per channel (typ) (mA): 0.55
Vn at 1 kHz (typ) (nV√Hz): 11
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Features: Shutdown
Input bias current (max) (pA): 14000
CMRR (typ) (dB): 85
Iout (typ) (A): 0.08
Architecture: Bipolar
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.2
更多
Output swing headroom (to positive supply) (typ) (V): -0.2
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.7
Rail-to-rail: In, Out
GBW (typ) (MHz): 6.4
Slew rate (typ) (V/µs): 1.6
Vos (offset voltage at 25°C) (max) (mV): 1.5
Iq per channel (typ) (mA): 0.55
Vn at 1 kHz (typ) (nV√Hz): 11
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 2
Features: Shutdown
Input bias current (max) (pA): 14000
CMRR (typ) (dB): 85
Iout (typ) (A): 0.08
Architecture: Bipolar
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.2
Output swing headroom (to positive supply) (typ) (V): -0.2
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.8
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
更多
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.8
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.04
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
更多
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.04
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Catalog
Operating temperature range (°C): -40 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.05
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Automotive, Catalog
Operating temperature range (°C): -55 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
更多
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 6
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4
Vos (offset voltage at 25°C) (max) (mV): 0.05
GBW (typ) (MHz): 4.7
Features: Shutdown
Slew rate (typ) (V/µs): 2.5
Rail-to-rail: In to V-, Out
Offset drift (typ) (µV/°C): 1
Iq per channel (typ) (mA): 1
Vn at 1 kHz (typ) (nV√Hz): 12
CMRR (typ) (dB): 100
Rating: Automotive, Catalog
Operating temperature range (°C): -55 to 125
Input bias current (max) (pA): 60
Iout (typ) (A): 0.066
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): 0
Input common mode headroom (to positive supply) (typ) (V): -2.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
THD + N at 1 kHz (typ) (%): 0.02
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3
Rail-to-rail: In to V-
GBW (typ) (MHz): 0.085
Slew rate (typ) (V/µs): 0.03
Vos (offset voltage at 25°C) (max) (mV): 10
Iq per channel (typ) (mA): 0.01
Vn at 1 kHz (typ) (nV√Hz): 68
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 1.1
Input bias current (max) (pA): 60
CMRR (typ) (dB): 94
Iout (typ) (A): 0.001
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -1.2
更多
Number of channels: 1
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 3
Rail-to-rail: In to V-
GBW (typ) (MHz): 0.085
Slew rate (typ) (V/µs): 0.03
Vos (offset voltage at 25°C) (max) (mV): 10
Iq per channel (typ) (mA): 0.01
Vn at 1 kHz (typ) (nV√Hz): 68
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 1.1
Input bias current (max) (pA): 60
CMRR (typ) (dB): 94
Iout (typ) (A): 0.001
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -1.2
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 15.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In, Out
GBW (typ) (MHz): 1.5
Slew rate (typ) (V/µs): 1.3
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.5
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Input bias current (max) (pA): 1.5
CMRR (typ) (dB): 82
Iout (typ) (A): 0.022
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): 0.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
更多
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 15.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In, Out
GBW (typ) (MHz): 1.5
Slew rate (typ) (V/µs): 1.3
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.5
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Input bias current (max) (pA): 1.5
CMRR (typ) (dB): 82
Iout (typ) (A): 0.022
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): 0.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 15.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In, Out
GBW (typ) (MHz): 1.5
Slew rate (typ) (V/µs): 1.3
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.5
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Input bias current (max) (pA): 1.5
CMRR (typ) (dB): 82
Iout (typ) (A): 0.022
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): 0.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1
更多
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 15.5
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 2.5
Rail-to-rail: In, Out
GBW (typ) (MHz): 1.5
Slew rate (typ) (V/µs): 1.3
Vos (offset voltage at 25°C) (max) (mV): 3
Iq per channel (typ) (mA): 0.5
Vn at 1 kHz (typ) (nV√Hz): 37
Rating: Catalog
Operating temperature range (°C): -40 to 125
Offset drift (typ) (µV/°C): 1
Input bias current (max) (pA): 1.5
CMRR (typ) (dB): 82
Iout (typ) (A): 0.022
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): 0.3
Output swing headroom (to negative supply) (typ) (V): 0.1
Output swing headroom (to positive supply) (typ) (V): -0.1

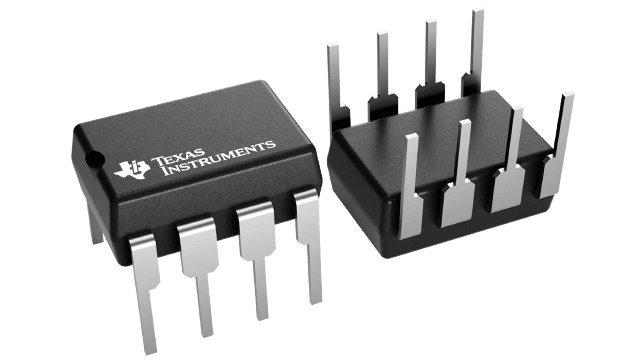

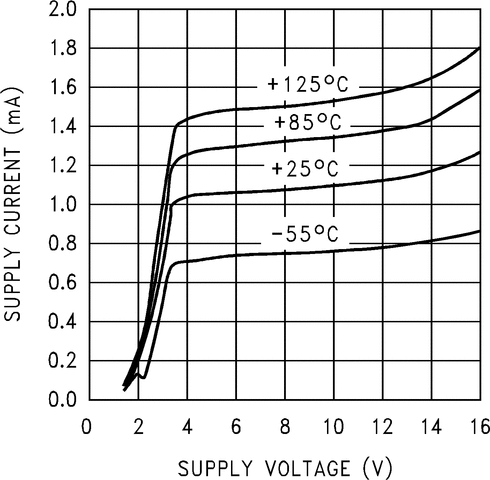

TLC252B
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有 1.4V 电源电压的双通道、16V、1.7MHz、2mV 失调电压、输入接近 V- 的运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.4
Rail-to-rail: In to V-
GBW (typ) (MHz): 1.7
Slew rate (typ) (V/µs): 3.6
Vos (offset voltage at 25°C) (max) (mV): 2
Iq per channel (typ) (mA): 0.675
Vn at 1 kHz (typ) (nV√Hz): 25
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 1.8
Input bias current (max) (pA): 60
CMRR (typ) (dB): 80
Iout (typ) (A): 0.01
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -1.2
更多
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.4
Rail-to-rail: In to V-
GBW (typ) (MHz): 1.7
Slew rate (typ) (V/µs): 3.6
Vos (offset voltage at 25°C) (max) (mV): 2
Iq per channel (typ) (mA): 0.675
Vn at 1 kHz (typ) (nV√Hz): 25
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 1.8
Input bias current (max) (pA): 60
CMRR (typ) (dB): 80
Iout (typ) (A): 0.01
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -1.2

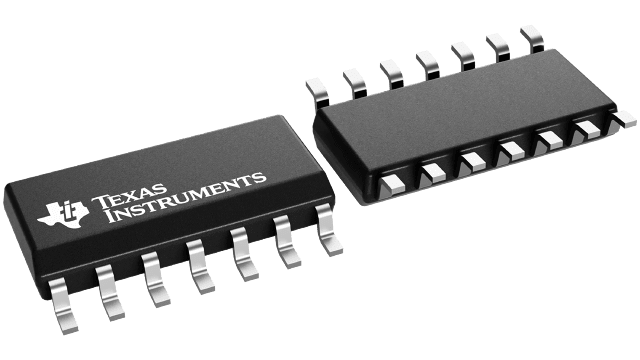

TLC25L4B
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 具有 1.4V 电源电压的四路、16V、85kHz、低功耗（10μA/通道）、2mV 失调电压运算放大器
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.4
Rail-to-rail: In to V-
GBW (typ) (MHz): 0.085
Slew rate (typ) (V/µs): 0.03
Vos (offset voltage at 25°C) (max) (mV): 2
Iq per channel (typ) (mA): 0.01
Vn at 1 kHz (typ) (nV√Hz): 68
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 1.8
Input bias current (max) (pA): 60
CMRR (typ) (dB): 94
Iout (typ) (A): 0.001
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -0.9
更多
Number of channels: 4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 16
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 1.4
Rail-to-rail: In to V-
GBW (typ) (MHz): 0.085
Slew rate (typ) (V/µs): 0.03
Vos (offset voltage at 25°C) (max) (mV): 2
Iq per channel (typ) (mA): 0.01
Vn at 1 kHz (typ) (nV√Hz): 68
Rating: Catalog
Operating temperature range (°C): 0 to 70
Offset drift (typ) (µV/°C): 1.8
Input bias current (max) (pA): 60
CMRR (typ) (dB): 94
Iout (typ) (A): 0.001
Architecture: CMOS
Input common mode headroom (to negative supply) (typ) (V): -0.3
Input common mode headroom (to positive supply) (typ) (V): -0.8
Output swing headroom (to negative supply) (typ) (V): 0.03
Output swing headroom (to positive supply) (typ) (V): -0.9
TLE2072
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 运算放大器
描述: 双通道、38V、10MHz、40V/μs 压摆率、输入接近 V+、JFET 输入运算放大器
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 38
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V+
GBW (typ) (MHz): 10
Slew rate (typ) (V/µs): 40
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.55
Vn at 1 kHz (typ) (nV√Hz): 12
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 2.4
Input bias current (max) (pA): 175
CMRR (typ) (dB): 98
Iout (typ) (A): 0.03
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3.1
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.8
Output swing headroom (to positive supply) (typ) (V): -0.9
更多
Number of channels: 2
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V): 38
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V): 4.5
Rail-to-rail: In to V+
GBW (typ) (MHz): 10
Slew rate (typ) (V/µs): 40
Vos (offset voltage at 25°C) (max) (mV): 6
Iq per channel (typ) (mA): 1.55
Vn at 1 kHz (typ) (nV√Hz): 12
Rating: Catalog
Operating temperature range (°C): -40 to 85
Offset drift (typ) (µV/°C): 2.4
Input bias current (max) (pA): 175
CMRR (typ) (dB): 98
Iout (typ) (A): 0.03
Architecture: FET
Input common mode headroom (to negative supply) (typ) (V): 3.1
Input common mode headroom (to positive supply) (typ) (V): 0
Output swing headroom (to negative supply) (typ) (V): 0.8
Output swing headroom (to positive supply) (typ) (V): -0.9
