INA111


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 高速 FET 输入仪器放大器

Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 12 Input offset (±) (max) (µV): 500 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 10 Features: Low bias current CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 5 Input bias current (±) (max) (nA): 0.02 Iq (typ) (mA): 3.3 Bandwidth at min gain (typ) (MHz): 2 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.005 Output swing headroom (to negative supply) (typ) (V): 2.3 Output swing headroom (to positive supply) (typ) (V): -2.3
Input common mode headroom (to negative supply) (typ) (V): 3 Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 1 Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 12 Input offset (±) (max) (µV): 500 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 10 Features: Low bias current CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 5 Input bias current (±) (max) (nA): 0.02 Iq (typ) (mA): 3.3 Bandwidth at min gain (typ) (MHz): 2 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.005 Output swing headroom (to negative supply) (typ) (V): 2.3 Output swing headroom (to positive supply) (typ) (V): -2.3 Input common mode headroom (to negative supply) (typ) (V): 3 Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 1

INA115


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 1MHz、50μV、11nV/√Hz、3mA 功耗、支持开关增益的精密仪表放大器

Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 10000 Noise at 1 kHz (typ) (nV√Hz): 11 Features: Overvoltage protection CMRR (min) (dB): 115 Input offset drift (±) (max) (µV/°C): 0.25 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 2.2 Bandwidth at min gain (typ) (MHz): 1 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3
Input common mode headroom (to negative supply) (typ) (V): 1.5 Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.4 Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 10000 Noise at 1 kHz (typ) (nV√Hz): 11 Features: Overvoltage protection CMRR (min) (dB): 115 Input offset drift (±) (max) (µV/°C): 0.25 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 2.2 Bandwidth at min gain (typ) (MHz): 1 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3 Input common mode headroom (to negative supply) (typ) (V): 1.5 Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.4

INA114


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 1MHz、50μV、11nV/√Hz、3mA 功耗、精密仪表放大器

Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 10000 Noise at 1 kHz (typ) (nV√Hz): 11 Features: Overvoltage protection CMRR (min) (dB): 115 Input offset drift (±) (max) (µV/°C): 0.25 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 2.2 Bandwidth at min gain (typ) (MHz): 1 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3
Input common mode headroom (to negative supply) (typ) (V): 1.5 Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.4 Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 10000 Noise at 1 kHz (typ) (nV√Hz): 11 Features: Overvoltage protection CMRR (min) (dB): 115 Input offset drift (±) (max) (µV/°C): 0.25 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 2.2 Bandwidth at min gain (typ) (MHz): 1 Gain error (±) (max) (%): 0.5 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3 Input common mode headroom (to negative supply) (typ) (V): 1.5 Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.4

INA131


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 精密 G = 100 仪器放大器

Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 100 Voltage gain (max) (V/V): 100 Noise at 1 kHz (typ) (nV√Hz): 12 CMRR (min) (dB): 110 Input offset drift (±) (max) (V/°C): 0.00000025 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 3 Bandwidth at min gain (typ) (MHz): 0.07 Gain error (±) (max) (%): 0.024 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Fixed Gain Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3 Input common mode headroom (to negative supply) (typ) (V): 1.5
Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.6 Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 4.5 Input offset (±) (max) (µV): 50 Voltage gain (min) (V/V): 100 Voltage gain (max) (V/V): 100 Noise at 1 kHz (typ) (nV√Hz): 12 CMRR (min) (dB): 110 Input offset drift (±) (max) (V/°C): 0.00000025 Input bias current (±) (max) (nA): 2 Iq (typ) (mA): 3 Bandwidth at min gain (typ) (MHz): 0.07 Gain error (±) (max) (%): 0.024 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Fixed Gain Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 1.3 Output swing headroom (to positive supply) (typ) (V): -1.3 Input common mode headroom (to negative supply) (typ) (V): 1.5 Input common mode headroom (to positive supply) (typ) (V): -1.5 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.6

INA103


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 低噪声、低失真仪表放大器

Number of channels: 1 Vs (max) (V): 50 Vs (min) (V): 18 Input offset (±) (max) (µV): 250 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 1 Features: Current Feedback, Ultra-low noise CMRR (min) (dB): 100 Input bias current (±) (max) (nA): 12000 Iq (typ) (mA): 9 Bandwidth at min gain (typ) (MHz): 6 Gain error (±) (max) (%): 0.25 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.004 Output swing headroom (to negative supply) (typ) (V): 3 Output swing headroom (to positive supply) (typ) (V): -3 Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): -3 Number of channels: 1 Vs (max) (V): 50 Vs (min) (V): 18 Input offset (±) (max) (µV): 250 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 1 Features: Current Feedback, Ultra-low noise CMRR (min) (dB): 100 Input bias current (±) (max) (nA): 12000 Iq (typ) (mA): 9 Bandwidth at min gain (typ) (MHz): 6 Gain error (±) (max) (%): 0.25 Operating temperature range (°C): -40 to 85 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.004 Output swing headroom (to negative supply) (typ) (V): 3 Output swing headroom (to positive supply) (typ) (V): -3 Input common mode headroom (to negative supply) (typ) (V): 3 Input common mode headroom (to positive supply) (typ) (V): -3

INA101


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 极高精度仪表放大器

Number of channels: 1 Vs (max) (V): 40 Vs (min) (V): 10 Input offset (±) (max) (µV): 25 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 13 CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 2 Input bias current (±) (max) (nA): 20 Iq (typ) (mA): 6.7 Bandwidth at min gain (typ) (MHz): 0.3 Gain error (±) (max) (%): 0.3 Operating temperature range (°C): -55 to 125 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 2.5 Output swing headroom (to positive supply) (typ) (V): -2.5 Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.8 Number of channels: 1 Vs (max) (V): 40 Vs (min) (V): 10 Input offset (±) (max) (µV): 25 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 13 CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 2 Input bias current (±) (max) (nA): 20 Iq (typ) (mA): 6.7 Bandwidth at min gain (typ) (MHz): 0.3 Gain error (±) (max) (%): 0.3 Operating temperature range (°C): -55 to 125 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.002 Output swing headroom (to negative supply) (typ) (V): 2.5 Output swing headroom (to positive supply) (typ) (V): -2.5 Input common mode headroom (to negative supply) (typ) (V): 3 Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 0.8

INA110


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 快速建立 FET 输入极高精度的仪表放大器

Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 12 Input offset (±) (max) (µV): 250 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 10 CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 2 Input bias current (±) (max) (nA): 0.05 Iq (typ) (mA): 3 Bandwidth at min gain (typ) (MHz): 2.5 Gain error (±) (max) (%): 0.1 Operating temperature range (°C): -55 to 125 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.01 Output swing headroom (to negative supply) (typ) (V): 2.3 Output swing headroom (to positive supply) (typ) (V): -2.3 Input common mode headroom (to negative supply) (typ) (V): 3
Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 1 Number of channels: 1 Vs (max) (V): 36 Vs (min) (V): 12 Input offset (±) (max) (µV): 250 Voltage gain (min) (V/V): 1 Voltage gain (max) (V/V): 1000 Noise at 1 kHz (typ) (nV√Hz): 10 CMRR (min) (dB): 106 Input offset drift (±) (max) (µV/°C): 2 Input bias current (±) (max) (nA): 0.05 Iq (typ) (mA): 3 Bandwidth at min gain (typ) (MHz): 2.5 Gain error (±) (max) (%): 0.1 Operating temperature range (°C): -55 to 125 Rating: Catalog Type: Resistor Gain nonlinearity (±) (max) (%): 0.01 Output swing headroom (to negative supply) (typ) (V): 2.3 Output swing headroom (to positive supply) (typ) (V): -2.3 Input common mode headroom (to negative supply) (typ) (V): 3 Input common mode headroom (to positive supply) (typ) (V): -3 Noise at 0.1 Hz to 10 Hz (typ) (µVPP): 1

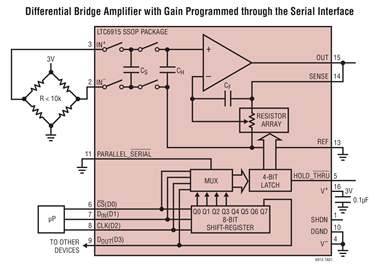

LTC6915CDE#PBF


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 具有数字可编程增益的零漂移、精准仪表放大器

Product Lifecycle: 量产 Package: 16-Lead SSOP (Narrow 0.15 Inch),12-Lead DFN (4mm x 3mm w/ EP) # of Channels: 1 Amp Architecture: charge sampling Gain Set: Digital Gain dB (max): 72.2dB Gain: 0, 1, 1024, 128, 16, 2, 2048, 256, 32, 4, 4096, 512, 64, 8V/V Freq Response (max): 200kHz BW -3 dB (typ): 200kHz Input Type: Single-Ended Gain Control Range: 72.2dB Slew Rate (typ): 200mV/us VNoise Density (typ): 50nV/rtHz Is (typ): 1.1mA Vs span (min): 2.7V Vs span (max): 11V Rail to Rail: Both Amp Features: Shutdown Shutdown: Yes Export Classification: EAR99
Automotive: No Temp Range: -40 to 125°C Package Area: 12mm² (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm² Package Height: 0.75mm (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm Launch Date: 2004-01-20 EP: No

LTC6915CDE#TRPBF


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 具有数字可编程增益的零漂移、精准仪表放大器

Product Lifecycle: 量产 Package: 16-Lead SSOP (Narrow 0.15 Inch),12-Lead DFN (4mm x 3mm w/ EP) # of Channels: 1 Amp Architecture: charge sampling Gain Set: Digital Gain dB (max): 72.2dB Gain: 0, 1, 1024, 128, 16, 2, 2048, 256, 32, 4, 4096, 512, 64, 8V/V Freq Response (max): 200kHz BW -3 dB (typ): 200kHz Input Type: Single-Ended Gain Control Range: 72.2dB Slew Rate (typ): 200mV/us VNoise Density (typ): 50nV/rtHz Is (typ): 1.1mA Vs span (min): 2.7V Vs span (max): 11V Rail to Rail: Both Amp Features: Shutdown Shutdown: Yes Export Classification: EAR99
Automotive: No Temp Range: -40 to 125°C Package Area: 12mm² (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm² Package Height: 0.75mm (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm Launch Date: 2004-01-20 EP: No

LTC6915CGN#PBF


分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 仪用放大器

描述: 具有数字可编程增益的零漂移、精准仪表放大器

Product Lifecycle: 量产 Package: 16-Lead SSOP (Narrow 0.15 Inch),12-Lead DFN (4mm x 3mm w/ EP) # of Channels: 1 Amp Architecture: charge sampling Gain Set: Digital Gain dB (max): 72.2dB Gain: 0, 1, 1024, 128, 16, 2, 2048, 256, 32, 4, 4096, 512, 64, 8V/V Freq Response (max): 200kHz BW -3 dB (typ): 200kHz Input Type: Single-Ended Gain Control Range: 72.2dB Slew Rate (typ): 200mV/us VNoise Density (typ): 50nV/rtHz Is (typ): 1.1mA Vs span (min): 2.7V Vs span (max): 11V Rail to Rail: Both Amp Features: Shutdown Shutdown: Yes Export Classification: EAR99
Automotive: No Temp Range: -40 to 125°C Package Area: 12mm² (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm² Package Height: 0.75mm (12-Lead DFN (4mm x 3mm w/ EP)) (LTC6915CDE#PBF)mm Launch Date: 2004-01-20 EP: No
