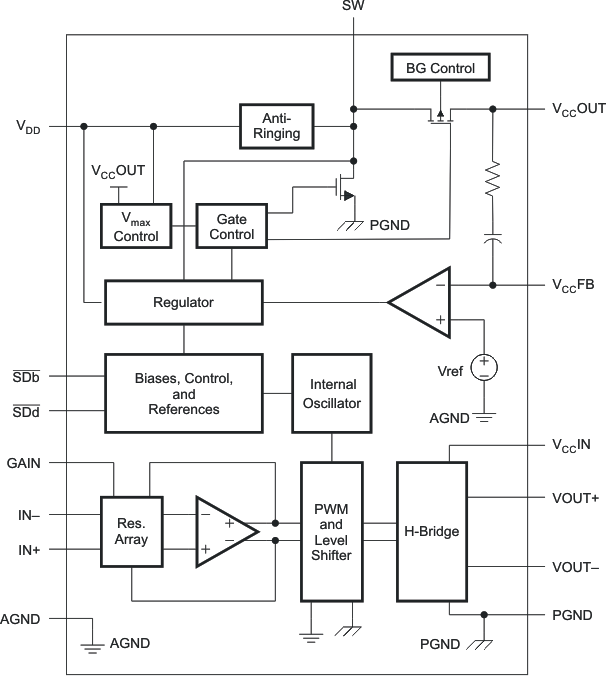

TPA2014D1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有集成升压和可选增益的 1.5W 单声道、模拟输入 D 级音频放大器

Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.5 Load (min) (Ω): 8 Output power (W): 1.5 SNR (dB): 97 THD + N at 1 kHz (%): 1 Iq (typ) (mA): 16.5 Control interface: GPIO Closed/open loop: Closed Analog supply (min) (V): 2.5 Analog supply voltage (max) (V): 5.5 PSRR (dB): 91 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono 更多

Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.5 Load (min) (Ω): 8 Output power (W): 1.5 SNR (dB): 97 THD + N at 1 kHz (%): 1 Iq (typ) (mA): 16.5 Control interface: GPIO Closed/open loop: Closed Analog supply (min) (V): 2.5 Analog supply voltage (max) (V): 5.5 PSRR (dB): 91 Operating temperature range (°C): -40 to 85

TAS5704

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有扬声器 EQ、DRC 和硬件控制功能的 20W 立体声、10V 至 26V、数字输入、D 类音频放大器

Audio input type: Digital Input Architecture: Class-D Speaker channels (max): 4 Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 20 SNR (dB): 100 THD + N at 1 kHz (%): 0.05 Iq (typ) (mA): 33 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 3 Analog supply voltage (max) (V): 3.6 Sampling rate (max) (kHz): 192 PSRR (dB): 60 Operating temperature range (°C): 0 to 85 Audio input type: Digital Input Architecture: Class-D 更多

Speaker channels (max): 4 Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 20 SNR (dB): 100 THD + N at 1 kHz (%): 0.05 Iq (typ) (mA): 33 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 3 Analog supply voltage (max) (V): 3.6 Sampling rate (max) (kHz): 192 PSRR (dB): 60 Operating temperature range (°C): 0 to 85

DRV601

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 2Vrm DirectPath™ 无杂声可变输入增益线路驱动器

Voltage gain (V/V): Adjustable Iq (typ) (mA): 8 Load capacitance (µF): 300 Number of channels: 2 THD + N at 1 kHz (%): 0.008 Noise floor (RTO, 20-kHz BW) (dBu): 113.3 Slew rate (typ) (V/µs): 2.2 Small-signal bandwidth (typ) (Hz): 3200000 Supply voltage (max) (V): 4.5 Supply voltage (min) (V): 1.8 Operating temperature range (°C): -40 to 85 Rating: Catalog Voltage gain (V/V): Adjustable Iq (typ) (mA): 8 Load capacitance (µF): 300 Number of channels: 2 THD + N at 1 kHz (%): 0.008 Noise floor (RTO, 20-kHz BW) (dBu): 113.3 Slew rate (typ) (V/µs): 2.2 Small-signal bandwidth (typ) (Hz): 3200000 更多

Supply voltage (max) (V): 4.5 Supply voltage (min) (V): 1.8 Operating temperature range (°C): -40 to 85 Rating: Catalog

TAS5601

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 20W 立体声、10V 至 26V 电源电压、PWM 单端输入 D 类音频放大器

Audio input type: PWM Architecture: Class-D Speaker channels (max): 4 Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 20 SNR (dB): 99 THD + N at 1 kHz (%): 0.004 Iq (typ) (mA): 35 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 Operating temperature range (°C): -40 to 85 Audio input type: PWM Architecture: Class-D Speaker channels (max): 4 Rating: Catalog 更多

Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 20 SNR (dB): 99 THD + N at 1 kHz (%): 0.004 Iq (typ) (mA): 35 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 Operating temperature range (°C): -40 to 85

LM49450

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 36mW 耳机放大器和 3D 增强功能的 2.5W 立体声数字输入 D 级放大器

Audio input type: Analog Input, Digital Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.7 Load (min) (Ω): 4 Output power (W): 1.1 THD + N at 1 kHz (%): 0.06 Iq (typ) (mA): 5.3 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 Sampling rate (max) (kHz): 192 PSRR (dB): 77 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input, Digital Input Architecture: Class-D Speaker channels (max): Stereo 更多

Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.7 Load (min) (Ω): 4 Output power (W): 1.1 THD + N at 1 kHz (%): 0.06 Iq (typ) (mA): 5.3 Control interface: I2C Closed/open loop: Closed Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 Sampling rate (max) (kHz): 192 PSRR (dB): 77 Operating temperature range (°C): -40 to 85

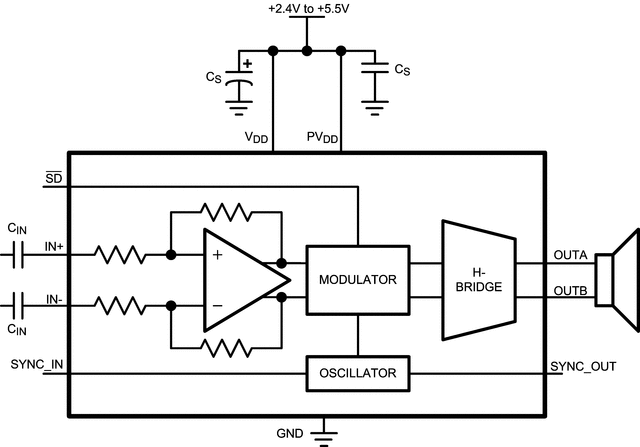

LM48310

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 12dB 固定增益和可同步振荡器的 2.6W 单声道模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.4 Load (min) (Ω): 4 Output power (W): 2.6 SNR (dB): 97 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 3.2 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 2.4 Analog supply voltage (max) (V): 5.5 PSRR (dB): 82 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Mono 更多

Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 2.4 Load (min) (Ω): 4 Output power (W): 2.6 SNR (dB): 97 THD + N at 1 kHz (%): 0.03 Iq (typ) (mA): 3.2 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 2.4 Analog supply voltage (max) (V): 5.5 PSRR (dB): 82 Operating temperature range (°C): -40 to 85

TPA3106D1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 40W 单声道、10V 至 26V 电源电压、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 40 SNR (dB): 102 THD + N at 1 kHz (%): 0.2 Iq (typ) (mA): 14 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 PSRR (dB): 70 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Mono 更多

Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 40 SNR (dB): 102 THD + N at 1 kHz (%): 0.2 Iq (typ) (mA): 14 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 PSRR (dB): 70 Operating temperature range (°C): -40 to 85

TPA2013D1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有集成升压转换器和可选增益的 2.7W 单声道、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 1.8 Load (min) (Ω): 4 Output power (W): 2.7 SNR (dB): 95 THD + N at 1 kHz (%): 1 Iq (typ) (mA): 16.5 Control interface: GPIO Closed/open loop: Open Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.2 PSRR (dB): 95 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono 更多

Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 1.8 Load (min) (Ω): 4 Output power (W): 2.7 SNR (dB): 95 THD + N at 1 kHz (%): 1 Iq (typ) (mA): 16.5 Control interface: GPIO Closed/open loop: Open Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.2 PSRR (dB): 95 Operating temperature range (°C): -40 to 85

TPA3123D2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有单端输出的 25W 立体声、10V 至 30V 电源电压、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 30 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 25 SNR (dB): 99 THD + N at 1 kHz (%): 0.08 Iq (typ) (mA): 23 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 30 PSRR (dB): 60 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo 更多

Rating: Catalog Power stage supply (max) (V): 30 Power stage supply (min) (V): 10 Load (min) (Ω): 4 Output power (W): 25 SNR (dB): 99 THD + N at 1 kHz (%): 0.08 Iq (typ) (mA): 23 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 30 PSRR (dB): 60 Operating temperature range (°C): -40 to 85

LM48511

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有集成升压转换器的 3W 单声道、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 3 Load (min) (Ω): 4 Output power (W): 6.7 SNR (dB): 97 THD + N at 1 kHz (%): 0.04 Iq (typ) (mA): 13.5 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 PSRR (dB): 88 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Boosted Speaker channels (max): Mono 更多

Rating: Catalog Power stage supply (max) (V): 5.5 Power stage supply (min) (V): 3 Load (min) (Ω): 4 Output power (W): 6.7 SNR (dB): 97 THD + N at 1 kHz (%): 0.04 Iq (typ) (mA): 13.5 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 PSRR (dB): 88 Operating temperature range (°C): -40 to 85
