LM49120

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 I2C 接口的 1.3W 立体声、模拟输入 AB 类音频放大器

Rating: Catalog Operating temperature range (°C): -40 to 85 Rating: Catalog Operating temperature range (°C): -40 to 85

TPA3121D2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有单端输出的 15W 立体声、30W 单声道、10V 至 26V 电源电压、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 26 Power stage supply (min) (V): 10 Load (min) (Ω): 4 THD + N at 1 kHz (%): 0.04 Iq (typ) (mA): 16 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 PSRR (dB): 60 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 26 更多

Power stage supply (min) (V): 10 Load (min) (Ω): 4 THD + N at 1 kHz (%): 0.04 Iq (typ) (mA): 16 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 26 PSRR (dB): 60 Operating temperature range (°C): -40 to 85

LM48822

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 I2C 控制接口的 35mW 立体声模拟输入耳机放大器

Output power (W): 0.04 Analog supply (min) (V): 2.4 Analog supply voltage (max) (V): 5.5 Load (min) (Ω): 16 PSRR (dB): 110 Rating: Catalog Operating temperature range (°C): -40 to 85 Headphone channels: Stereo Volume control: Yes Shutdown current (ISD) (µA): 0.06 Architecture: Class-AB (ground-centered) Iq per channel (typ) (mA): 1.7 Output power (W): 0.04 Analog supply (min) (V): 2.4 Analog supply voltage (max) (V): 5.5 Load (min) (Ω): 16 PSRR (dB): 110 Rating: Catalog Operating temperature range (°C): -40 to 85 Headphone channels: Stereo 更多

Volume control: Yes Shutdown current (ISD) (µA): 0.06 Architecture: Class-AB (ground-centered) Iq per channel (typ) (mA): 1.7

TPA3122D2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 采用 DIP 封装、具有单端输出的 15W 立体声、30W 单声道、10V 至 26V 电源电压、模拟输入 D 类音频放大器

Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 30 Power stage supply (min) (V): 10 Load (min) (Ω): 4 THD + N at 1 kHz (%): 0.06 Iq (typ) (mA): 23 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 30 PSRR (dB): 60 Operating temperature range (°C): -40 to 85 Audio input type: Analog Input Architecture: Class-D Speaker channels (max): Stereo Rating: Catalog Power stage supply (max) (V): 30 更多

Power stage supply (min) (V): 10 Load (min) (Ω): 4 THD + N at 1 kHz (%): 0.06 Iq (typ) (mA): 23 Control interface: Hardware Closed/open loop: Closed Analog supply (min) (V): 10 Analog supply voltage (max) (V): 30 PSRR (dB): 60 Operating temperature range (°C): -40 to 85

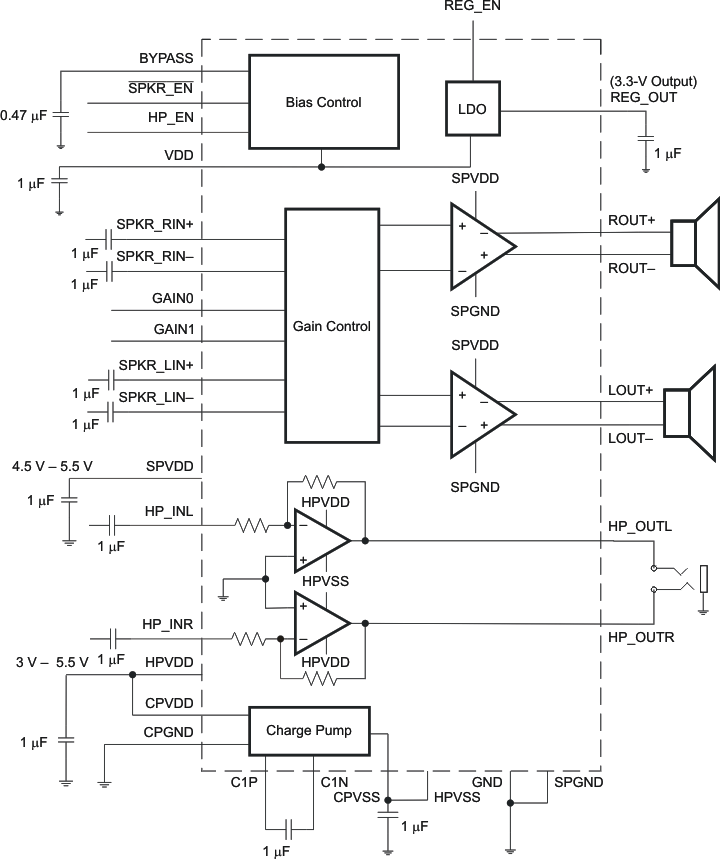

TPA6043A4

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 3.3V LDO、使能端低电平有效和 6dB 至 21.6dB 增益的 2W、立体声 AB 类扬声器和耳机放大器

Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85 Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85

TPA6041A4

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 3.3V LDO、使能端低电平有效和 10dB 至 21dB 增益的 2W、立体声 AB 类扬声器和耳机放大器

Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85 Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85

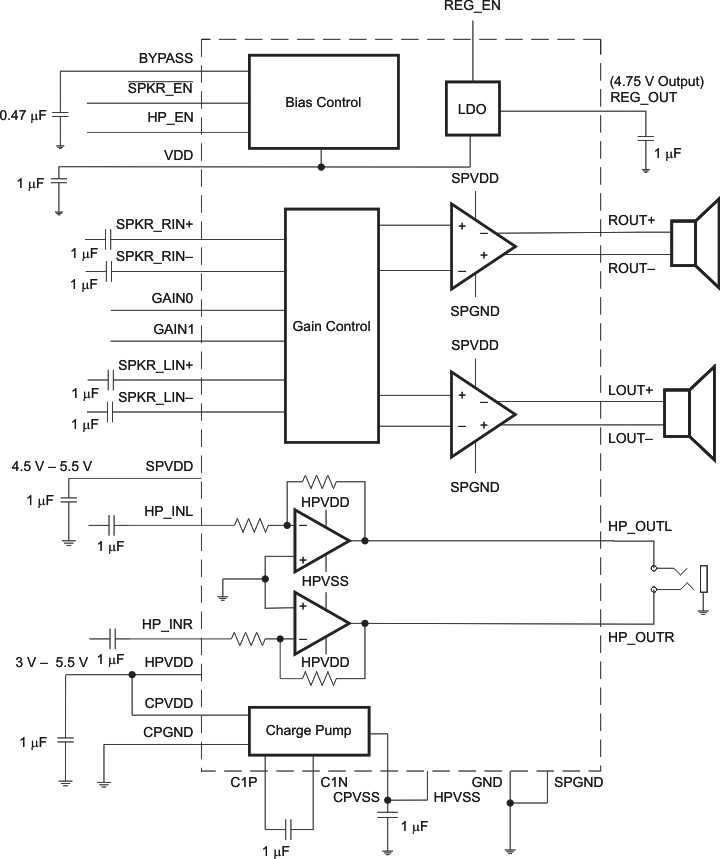

TPA6040A4

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 4.75V LDO、扬声器使能端低电平有效的 2W、立体声 AB 类扬声器和耳机放大器

Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85 Rating: Catalog PSRR (dB): 80 Operating temperature range (°C): -40 to 85

TPA3120D2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 具有 SE 输出 (TPA3120) 的 25W 立体声 D 类音频功率放大器

Rating: Catalog Load (min) (Ω): 4 PSRR (dB): 60 Operating temperature range (°C): -40 to 85 Rating: Catalog Load (min) (Ω): 4 PSRR (dB): 60 Operating temperature range (°C): -40 to 85

TAS5132

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 20W 立体声、40W 单声道、0V 至 19V 电源电压、PWM 输入 D 级音频放大器

Audio input type: PWM Architecture: Class-D Speaker channels (max): 4 Rating: Catalog Power stage supply (max) (V): 19 Power stage supply (min) (V): 0 Load (min) (Ω): 6 Output power (W): 20 SNR (dB): 105 THD + N at 1 kHz (%): 0.06 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 10.8 Analog supply voltage (max) (V): 13.2 Operating temperature range (°C): 0 to 70 Audio input type: PWM Architecture: Class-D Speaker channels (max): 4 Rating: Catalog Power stage supply (max) (V): 19 更多

Power stage supply (min) (V): 0 Load (min) (Ω): 6 Output power (W): 20 SNR (dB): 105 THD + N at 1 kHz (%): 0.06 Control interface: Hardware Closed/open loop: Open Analog supply (min) (V): 10.8 Analog supply voltage (max) (V): 13.2 Operating temperature range (°C): 0 to 70

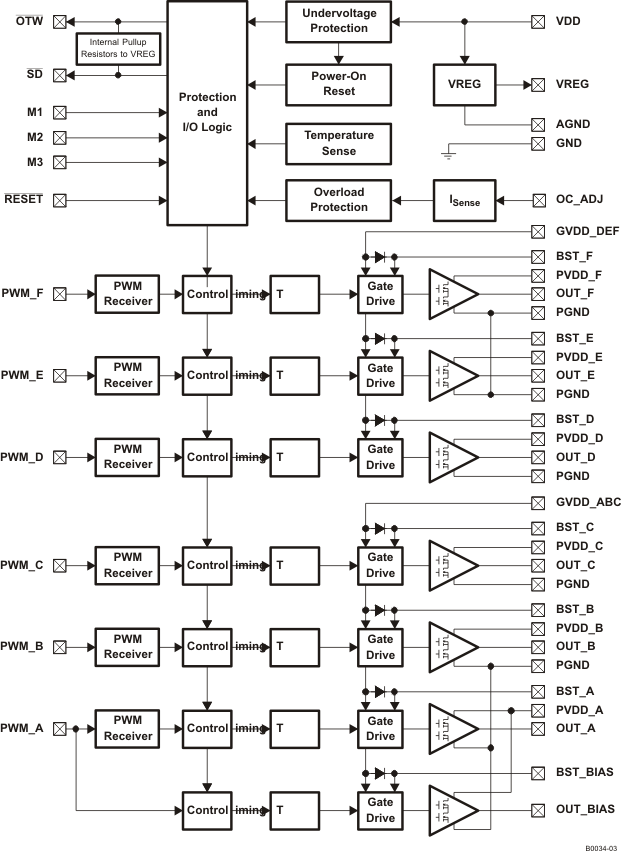

TAS5186A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 放大器 / 音频放大器

描述: 210W 5.1 声道、0V 至 34V 电源电压、PWM 输入 D 类音频放大器

Audio input type: PWM Speaker channels (max): 6 Rating: Catalog Power stage supply (max) (V): 40 Power stage supply (min) (V): 0 Load (min) (Ω): 3 Output power (W): 30 SNR (dB): 105 THD + N at 1 kHz (%): 0.05 Control interface: Hardware Analog supply (min) (V): 10.8 Analog supply voltage (max) (V): 13.2 Operating temperature range (°C): 0 to 70 Audio input type: PWM Speaker channels (max): 6 Rating: Catalog Power stage supply (max) (V): 40 Power stage supply (min) (V): 0 Load (min) (Ω): 3 Output power (W): 30 更多

SNR (dB): 105 THD + N at 1 kHz (%): 0.05 Control interface: Hardware Analog supply (min) (V): 10.8 Analog supply voltage (max) (V): 13.2 Operating temperature range (°C): 0 to 70
