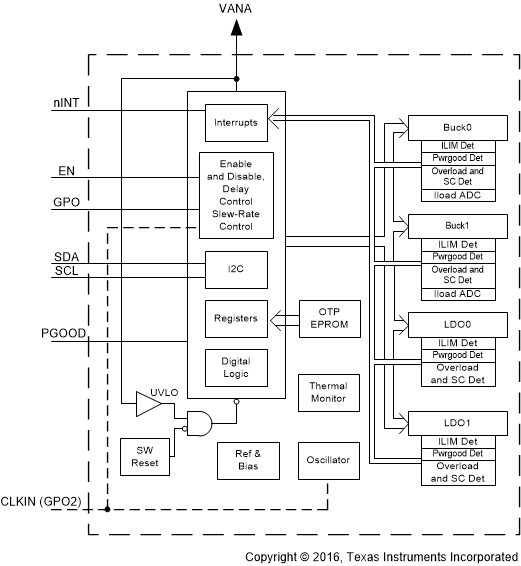

Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Jacinto DRA7x Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 2 Configurability: Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Processor supplier: Texas Instruments Processor name: Sitara AM57x Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): -0.3 Vout (max) (V): 7 Iout (max) (A): 2 Configurability: Factory programmable, Software configurable Rating: Automotive, Catalog Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Processor supplier: Texas Instruments Processor name: Sitara AM57x Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 3 Configurability: Factory programmable, Software configurable Rating: Catalog Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Jacinto DRA7x Regulated outputs (#): 4 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.36 Iout (max) (A): 3 Configurability: Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.009 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

Product type: Radar sensor Processor supplier: Texas Instruments Processor name: mmWave AWR Regulated outputs (#): 4 Step-down DC/DC converter: 4 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.36 Iout (max) (A): 4 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.0067 Switching frequency (max) (kHz): 4400 Shutdown current (ISD) (typ) (µA): 1.4 Switching frequency (typ) (kHz): 4000 Product type: Radar sensor

Vout (max) (V): 4 Vout (min) (V): 0.7 Rating: Catalog Noise (µVrms): 60 PSRR at 100 KHz (dB): 45 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 100.2 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 1 Dropout voltage (Vdo) (typ) (mV): 425 Operating temperature range (°C): -40 to 125

Processor supplier: Generic Processor name: Generic Regulated outputs (#): 2 Step-down DC/DC converter: 1 Step-up DC/DC converter: 0 LDO: 1 Vin (min) (V): 3.6 Vin (max) (V): 36 Vout (min) (V): 1.1 Vout (max) (V): 20 Iout (max) (A): 3.2 Configurability: Hardware configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.145 Switching frequency (max) (kHz): 2500 Shutdown current (ISD) (typ) (µA): 2 Product type: Microcontrollers

Vin (max) (V): 5.5 Vin (min) (V): 2 Vout (max) (V): 5 Vout (min) (V): 0.85 Fixed output options (V): 1.1, 1.2, 1.5, 1.8, 2.5, 2.7, 2.8, 2.9, 3, 3.3 Rating: Catalog Noise (µVrms): 45 PSRR at 100 KHz (dB): 40 Iq (typ) (mA): 0.025 Thermal resistance θJA (°C/W): 180.4 Load capacitance (min) (µF): 0.1 Regulated outputs (#): 1 Features: Enable, Output discharge Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 250 Operating temperature range (°C): -40 to 125

Product type: Processor and FPGA Processor supplier: Generic Processor name: Generic Regulated outputs (#): 2 Step-down DC/DC converter: 4 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2.8 Vin (max) (V): 5.5 Vout (min) (V): 0.6 Vout (max) (V): 3.36 Iout (max) (A): 9 Configurability: Factory programmable, Software configurable Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.0067 Switching frequency (max) (kHz): 2200 Shutdown current (ISD) (typ) (µA): 1.4 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA

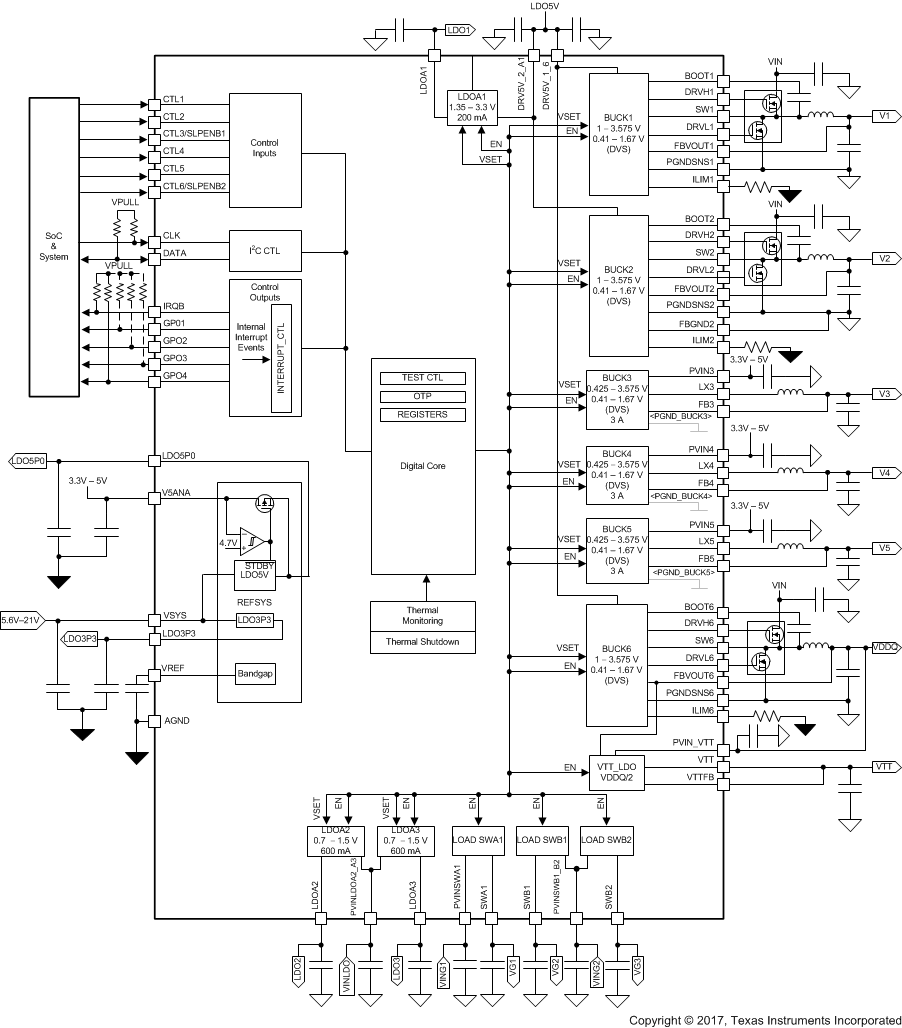

Product type: Processor and FPGA Processor supplier: AMD Processor name: Family 17h Regulated outputs (#): 13 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 4 Vin (min) (V): 5.6 Vin (max) (V): 21 Vout (min) (V): -0.3 Vout (max) (V): 5 Iout (max) (A): 25 Configurability: Factory programmable, Software configurable Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 3 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.3 Switching frequency (max) (kHz): 3100 Shutdown current (ISD) (typ) (µA): 65 Switching frequency (typ) (kHz): 2500 Product type: Processor and FPGA
