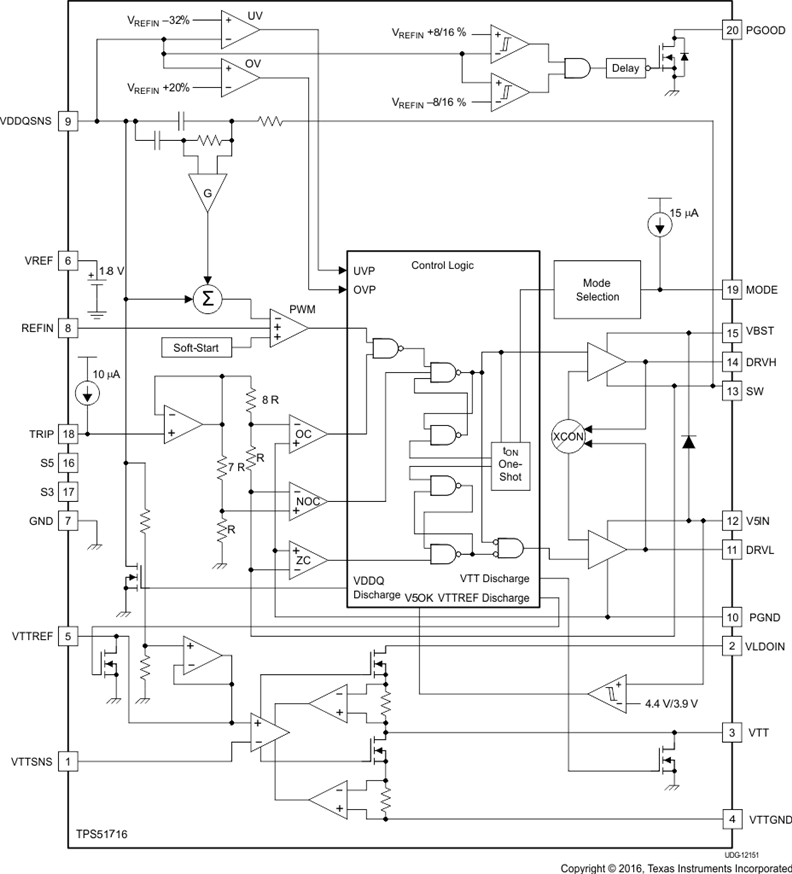

TPS51716

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 完整的 DDR2/3/3L/4 存储器电源解决方案同步降压控制器、2A LDO

Vin (min) (V): 3 Vin (max) (V): 28 Vout (min) (V): 0.7 Vout (max) (V): 1.8 Features: Complete Solution, Eco Mode, S3/S5 Support Rating: Catalog Operating temperature range (°C): -40 to 85 Iq (typ) (mA): 0.6 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L, DDR4, LPDDR2, LPDDR3 Vin (min) (V): 3 Vin (max) (V): 28 Vout (min) (V): 0.7 Vout (max) (V): 1.8 Features: Complete Solution, Eco Mode, S3/S5 Support Rating: Catalog Operating temperature range (°C): -40 to 85 Iq (typ) (mA): 0.6 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L, DDR4, LPDDR2, LPDDR3

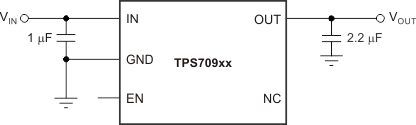

TPS709

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有反向电流保护和使能功能的 150mA、30V、超低 IQ、低压降稳压器

Output options: Fixed Output Iout (max) (A): 0.15 Vin (max) (V): 30 Vin (min) (V): 2.7 Vout (max) (V): 6 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 190 PSRR at 100 KHz (dB): 26 Iq (typ) (mA): 0.001 Thermal resistance θJA (°C/W): 73, 213 Load capacitance (min) (µF): 2 Regulated outputs (#): 1 Features: Enable, Reverse Current Protection Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.15 Vin (max) (V): 30 更多

Vin (min) (V): 2.7 Vout (max) (V): 6 Vout (min) (V): 1.2 Rating: Catalog Noise (µVrms): 190 PSRR at 100 KHz (dB): 26 Iq (typ) (mA): 0.001 Thermal resistance θJA (°C/W): 73, 213 Load capacitance (min) (µF): 2 Regulated outputs (#): 1 Features: Enable, Reverse Current Protection Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125

TPS51116-EP

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 增强型产品 DDR1、DDR2、DDR3 转换开关和 LDO

Vin (min) (V): 3 Vin (max) (V): 28 Vout (min) (V): 0.75 Vout (max) (V): 3 Features: Complete Solution, Shutdown Pin for S3 Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Iq (typ) (mA): 0.8 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L, DDR4, LPDDR2, LPDDR3 Vin (min) (V): 3 Vin (max) (V): 28 Vout (min) (V): 0.75 Vout (max) (V): 3 Features: Complete Solution, Shutdown Pin for S3 Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Iq (typ) (mA): 0.8 Product type: DDR DDR memory type: DDR, DDR2, DDR3, DDR3L, DDR4, LPDDR2, LPDDR3

TLV713

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的 150mA、低压降无电容稳压器

Output options: Fixed Output Iout (max) (A): 0.15 Vin (max) (V): 5.5 Vin (min) (V): 1.4 Vout (max) (V): 2 Vout (min) (V): 2 Fixed output options (V): 2 Rating: Catalog Noise (µVrms): 73 PSRR at 100 KHz (dB): 17 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 249 Load capacitance (min) (µF): 0 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 85 Output options: Fixed Output Iout (max) (A): 0.15 更多

Vin (max) (V): 5.5 Vin (min) (V): 1.4 Vout (max) (V): 2 Vout (min) (V): 2 Fixed output options (V): 2 Rating: Catalog Noise (µVrms): 73 PSRR at 100 KHz (dB): 17 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 249 Load capacitance (min) (µF): 0 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 85

TPS65051-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 汽车类 1.5V 至 6.5V、包含 2 个降压转换器和 4 个 LDO 的电源管理 IC

Processor supplier: NXP/Freescale Processor name: i.MX25 Regulated outputs (#): 6 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 4 Vin (min) (V): 1.5 Vin (max) (V): 6.5 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 1 Configurability: Hardware configurable Features: I2C control Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 2.4 Switching frequency (max) (kHz): 2475 Shutdown current (ISD) (typ) (µA): 9 更多

Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA Processor supplier: NXP/Freescale Processor name: i.MX25 Regulated outputs (#): 6 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 4 Vin (min) (V): 1.5 Vin (max) (V): 6.5 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 1 Configurability: Hardware configurable Features: I2C control Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 2.4 Switching frequency (max) (kHz): 2475 Shutdown current (ISD) (typ) (µA): 9 Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA

TLV1171

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 1A 低压降稳压器 (tab GND)

Output options: Fixed Output Iout (max) (A): 1 Vin (max) (V): 5.5 Vin (min) (V): 2 Vout (max) (V): 2.5 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.5, 1.8, 2.5 Rating: Catalog Noise (µVrms): 60 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 63 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 1.3 Dropout voltage (Vdo) (typ) (mV): 455 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 1 Vin (max) (V): 5.5 更多

Vin (min) (V): 2 Vout (max) (V): 2.5 Vout (min) (V): 1.2 Fixed output options (V): 1.2, 1.5, 1.8, 2.5 Rating: Catalog Noise (µVrms): 60 PSRR at 100 KHz (dB): 50 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 63 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 1.3 Dropout voltage (Vdo) (typ) (mV): 455 Operating temperature range (°C): -40 to 125

LM10502

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 2MHz、1A/1A 双路降压转换器 + 低压降线性稳压器

Regulated outputs (#): 3 Step-down DC/DC converter: 2 Step-up DC/DC converter: 0 LDO: 1 Vin (min) (V): 0 Vin (max) (V): 5.5 Vout (min) (V): 0.7 Vout (max) (V): 3.6 Iout (max) (A): 1 Configurability: Factory programmable Features: Comm control, Power sequencing Rating: Catalog Operating temperature range (°C): -30 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.07 Switching frequency (max) (kHz): 2300 Shutdown current (ISD) (typ) (µA): 130 Switching frequency (typ) (kHz): 2000 Product type: Processor and FPGA 更多

TPS717-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有使能功能的汽车类、150mA、高 PSRR、低 IQ、低压降稳压器

Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.15 Vin (max) (V): 6.5 Vin (min) (V): 2.5 Vout (max) (V): 5 Vout (min) (V): 0.9 Fixed output options (V): 0.9, 1.2, 1.5, 1.8, 2.5, 2.8, 3, 3.3, 4.5, 5 Rating: Automotive Noise (µVrms): 20.7 PSRR at 100 KHz (dB): 67 Iq (typ) (mA): 0.045 Thermal resistance θJA (°C/W): 71 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 170 Operating temperature range (°C): -40 to 125 Output options: Adjustable Output, Fixed Output Iout (max) (A): 0.15 更多

Vin (max) (V): 6.5 Vin (min) (V): 2.5 Vout (max) (V): 5 Vout (min) (V): 0.9 Fixed output options (V): 0.9, 1.2, 1.5, 1.8, 2.5, 2.8, 3, 3.3, 4.5, 5 Rating: Automotive Noise (µVrms): 20.7 PSRR at 100 KHz (dB): 67 Iq (typ) (mA): 0.045 Thermal resistance θJA (°C/W): 71 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Features: Enable Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 170 Operating temperature range (°C): -40 to 125

TLV713P

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 具有主动输出放电和使能功能的 150mA、低压降无电容稳压器

Output options: Fixed Output Iout (max) (A): 0.15 Vin (max) (V): 5.5 Vin (min) (V): 1.4 Vout (max) (V): 3.3 Vout (min) (V): 1 Fixed output options (V): 1, 1.1, 1.2, 1.5, 1.8, 1.85, 2.5, 2.8, 2.85, 3, 3.3 Rating: Catalog Noise (µVrms): 73 PSRR at 100 KHz (dB): 17 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 249 Load capacitance (min) (µF): 0 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125 Output options: Fixed Output Iout (max) (A): 0.15 更多

Vin (max) (V): 5.5 Vin (min) (V): 1.4 Vout (max) (V): 3.3 Vout (min) (V): 1 Fixed output options (V): 1, 1.1, 1.2, 1.5, 1.8, 1.85, 2.5, 2.8, 2.85, 3, 3.3 Rating: Catalog Noise (µVrms): 73 PSRR at 100 KHz (dB): 17 Iq (typ) (mA): 0.05 Thermal resistance θJA (°C/W): 249 Load capacitance (min) (µF): 0 Regulated outputs (#): 1 Features: Enable, Foldback Overcurrent protection Accuracy (%): 1.5 Dropout voltage (Vdo) (typ) (mV): 230 Operating temperature range (°C): -40 to 125

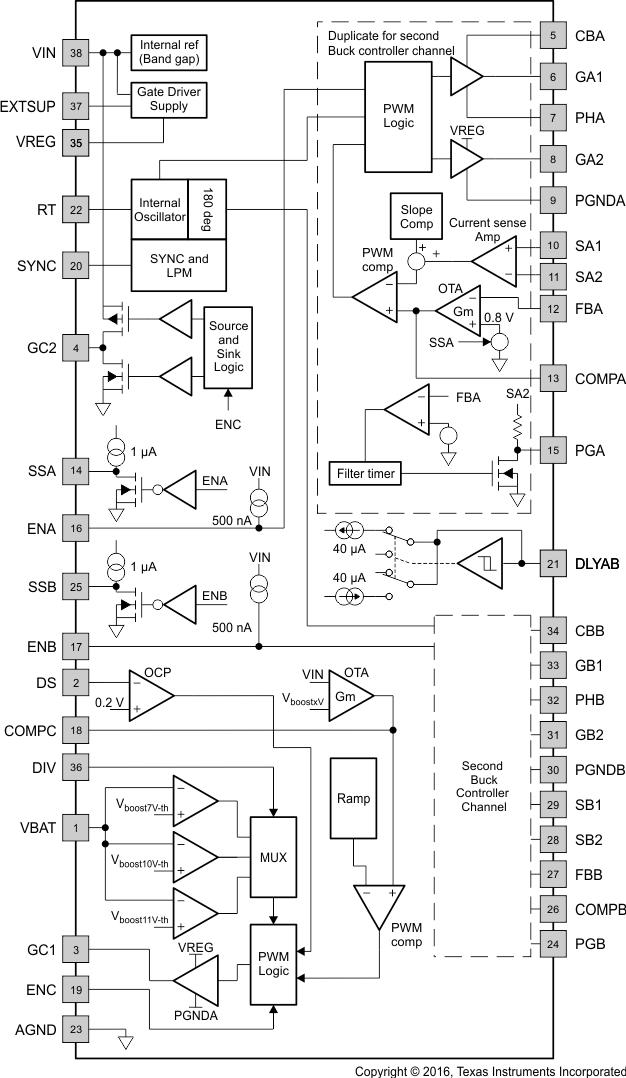

TPS43333-Q1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器

描述: 汽车类 2V 至 40V 低 Iq 单路升压和双路同步降压控制器

Processor supplier: Generic Processor name: Generic Regulated outputs (#): 3 Step-down DC/DC converter: 0 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2 Vin (max) (V): 40 Vout (min) (V): 0.9 Vout (max) (V): 11 Iout (max) (A): 6 Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 2 Step-up DC/DC controller: 1 Iq (typ) (mA): 0.03 Switching frequency (max) (kHz): 600 Shutdown current (ISD) (typ) (µA): 3 Product type: Microcontrollers Processor supplier: Generic 更多

Processor name: Generic Regulated outputs (#): 3 Step-down DC/DC converter: 0 Step-up DC/DC converter: 0 LDO: 0 Vin (min) (V): 2 Vin (max) (V): 40 Vout (min) (V): 0.9 Vout (max) (V): 11 Iout (max) (A): 6 Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 2 Step-up DC/DC controller: 1 Iq (typ) (mA): 0.03 Switching frequency (max) (kHz): 600 Shutdown current (ISD) (typ) (µA): 3 Product type: Microcontrollers
