Output options: Fixed Output
Iout (max) (A): 1
Vin (max) (V): 5.5
Vin (min) (V): 2.7
Vout (max) (V): 2.5
Vout (min) (V): 2.5
Fixed output options (V): 2.5
Rating: Catalog
Noise (µVrms): 50
PSRR at 100 KHz (dB): 50
Iq (typ) (mA): 0.6
Thermal resistance θJA (°C/W): 141
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 200
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 1
更多
Vin (max) (V): 5.5
Vin (min) (V): 2.7
Vout (max) (V): 2.5
Vout (min) (V): 2.5
Fixed output options (V): 2.5
Rating: Catalog
Noise (µVrms): 50
PSRR at 100 KHz (dB): 50
Iq (typ) (mA): 0.6
Thermal resistance θJA (°C/W): 141
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 200
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Negative Output
Iout (max) (A): 1
Vin (max) (V): -3
Vin (min) (V): -36
Vout (max) (V): -1.2
Vout (min) (V): -33
Fixed output options (V): -1.2
Rating: Catalog
Noise (µVrms): 16
PSRR at 100 KHz (dB): 64
Iq (typ) (mA): 0.21
Thermal resistance θJA (°C/W): 31
Load capacitance (min) (µF): 10
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Negative Output
Iout (max) (A): 1
更多
Vin (max) (V): -3
Vin (min) (V): -36
Vout (max) (V): -1.2
Vout (min) (V): -33
Fixed output options (V): -1.2
Rating: Catalog
Noise (µVrms): 16
PSRR at 100 KHz (dB): 64
Iq (typ) (mA): 0.21
Thermal resistance θJA (°C/W): 31
Load capacitance (min) (µF): 10
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 1
Vin (max) (V): 36
Vin (min) (V): 3
Vout (max) (V): 34
Vout (min) (V): 1.4
Rating: Catalog
Noise (µVrms): 4
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.58
Thermal resistance θJA (°C/W): 30.5
Load capacitance (min) (µF): 10
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 307
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 1
Vin (max) (V): 36
更多
Vin (min) (V): 3
Vout (max) (V): 34
Vout (min) (V): 1.4
Rating: Catalog
Noise (µVrms): 4
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.58
Thermal resistance θJA (°C/W): 30.5
Load capacitance (min) (µF): 10
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 307
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.2
Vin (max) (V): 5.5
Vin (min) (V): 2
Vout (max) (V): 3.3
Vout (min) (V): 1.2
Fixed output options (V): 1.2, 3
Rating: Automotive
Noise (µVrms): 48
PSRR at 100 KHz (dB): 51
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 263
TI functional safety category: Functional Safety-Capable
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 175
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
更多
Iout (max) (A): 0.2
Vin (max) (V): 5.5
Vin (min) (V): 2
Vout (max) (V): 3.3
Vout (min) (V): 1.2
Fixed output options (V): 1.2, 3
Rating: Automotive
Noise (µVrms): 48
PSRR at 100 KHz (dB): 51
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 263
TI functional safety category: Functional Safety-Capable
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 175
Operating temperature range (°C): -40 to 125

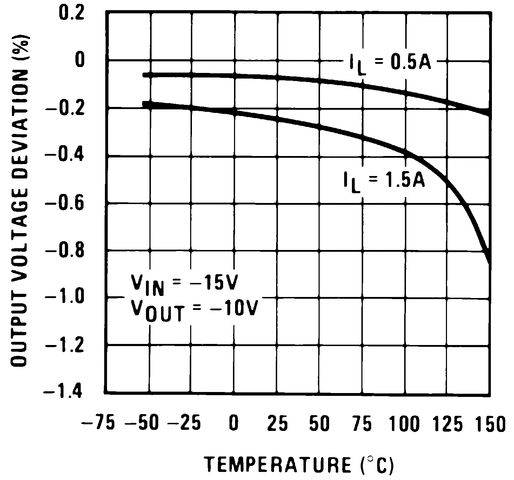

LM137QML-SP
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 耐辐射 QMLV、-4.2V 至 -40V、1.5A 可调节负电压线性稳压器
Output options: Adjustable Output, Negative Output
Iout (max) (A): 1.5
Vin (max) (V): -4.2
Vin (min) (V): -40
Vout (max) (V): -1.2
Vout (min) (V): -37
Fixed output options (V): 0
Rating: Space
Noise (µVrms): 1110
PSRR at 100 KHz (dB): 30
Iq (typ) (mA): 0.065
Thermal resistance θJA (°C/W): 137
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Accuracy (%): 4
Dropout voltage (Vdo) (typ) (mV): 3000
Operating temperature range (°C): -55 to 125
Radiation, SEL (MeV·cm2/mg): Bipolar
Radiation, TID (typ) (krad): 30
Output options: Adjustable Output, Negative Output
更多
Iout (max) (A): 1.5
Vin (max) (V): -4.2
Vin (min) (V): -40
Vout (max) (V): -1.2
Vout (min) (V): -37
Fixed output options (V): 0
Rating: Space
Noise (µVrms): 1110
PSRR at 100 KHz (dB): 30
Iq (typ) (mA): 0.065
Thermal resistance θJA (°C/W): 137
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Accuracy (%): 4
Dropout voltage (Vdo) (typ) (mV): 3000
Operating temperature range (°C): -55 to 125
Radiation, SEL (MeV·cm2/mg): Bipolar
Radiation, TID (typ) (krad): 30

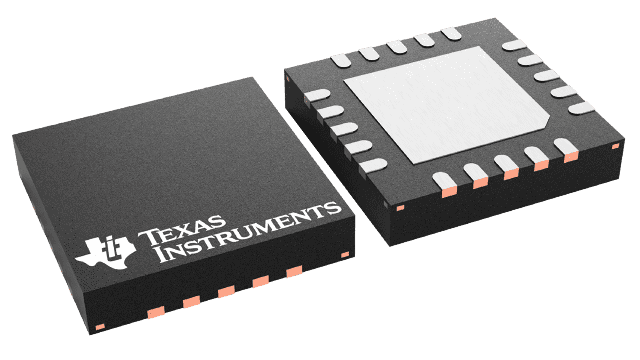

TPS65300-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 具有 3 个 LDO 的汽车类 5.6V 至 40V、1.2A 降压转换器
Processor supplier: Texas Instruments
Processor name: C2000, Hercules TMS570
Regulated outputs (#): 4
Step-down DC/DC converter: 1
Step-up DC/DC converter: 0
LDO: 3
Vin (min) (V): 5.6
Vin (max) (V): 40
Vout (min) (V): 1.2
Vout (max) (V): 5.542
Iout (max) (A): 1.2
Configurability: Factory programmable, Software configurable
Features: Enable, Overcurrent protection, Thermal shutdown
Rating: Automotive
Operating temperature range (°C): -40 to 125
Step-down DC/DC controller: 0
Step-up DC/DC controller: 0
Iq (typ) (mA): 4.57
Switching frequency (max) (kHz): 3000
Shutdown current (ISD) (typ) (µA): 2.2
更多
Product type: Microcontrollers
Processor supplier: Texas Instruments
Processor name: C2000, Hercules TMS570
Regulated outputs (#): 4
Step-down DC/DC converter: 1
Step-up DC/DC converter: 0
LDO: 3
Vin (min) (V): 5.6
Vin (max) (V): 40
Vout (min) (V): 1.2
Vout (max) (V): 5.542
Iout (max) (A): 1.2
Configurability: Factory programmable, Software configurable
Features: Enable, Overcurrent protection, Thermal shutdown
Rating: Automotive
Operating temperature range (°C): -40 to 125
Step-down DC/DC controller: 0
Step-up DC/DC controller: 0
Iq (typ) (mA): 4.57
Switching frequency (max) (kHz): 3000
Shutdown current (ISD) (typ) (µA): 2.2
Product type: Microcontrollers
Output options: Fixed Output
Iout (max) (A): 0.2
Vin (max) (V): 6.5
Vin (min) (V): 2.7
Vout (max) (V): 5.7
Vout (min) (V): 5.4
Fixed output options (V): 5.4, 5.7
Rating: Catalog
Noise (µVrms): 54
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.04
Thermal resistance θJA (°C/W): 143
Load capacitance (min) (µF): 2
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 90
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.2
更多
Vin (max) (V): 6.5
Vin (min) (V): 2.7
Vout (max) (V): 5.7
Vout (min) (V): 5.4
Fixed output options (V): 5.4, 5.7
Rating: Catalog
Noise (µVrms): 54
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.04
Thermal resistance θJA (°C/W): 143
Load capacitance (min) (µF): 2
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 90
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.15
Vin (max) (V): 5.5
Vin (min) (V): 1.7
Vout (max) (V): 3.3
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 55
PSRR at 100 KHz (dB): 43
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 393
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Foldback Overcurrent protection
Accuracy (%): 1.5
Dropout voltage (Vdo) (typ) (mV): 215
Operating temperature range (°C): -40 to 85
Output options: Fixed Output
Iout (max) (A): 0.15
Vin (max) (V): 5.5
更多
Vin (min) (V): 1.7
Vout (max) (V): 3.3
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 55
PSRR at 100 KHz (dB): 43
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 393
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Foldback Overcurrent protection
Accuracy (%): 1.5
Dropout voltage (Vdo) (typ) (mV): 215
Operating temperature range (°C): -40 to 85

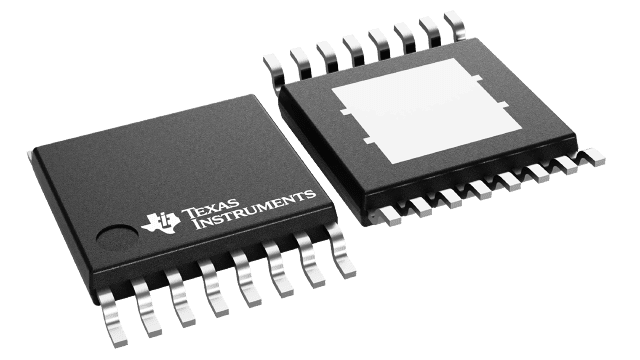

TPS7A16-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 具有电源正常指示和使能功能的汽车类 100mA、60V、超低 IQ、低压降稳压器
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 0.1
Vin (max) (V): 60
Vin (min) (V): 3
Vout (max) (V): 18.5
Vout (min) (V): 1.2
Fixed output options (V): 3.3, 5
Rating: Automotive
Noise (µVrms): 215
PSRR at 100 KHz (dB): 26
Iq (typ) (mA): 0.005
Thermal resistance θJA (°C/W): 66
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Power good
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 60
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 0.1
更多
Vin (max) (V): 60
Vin (min) (V): 3
Vout (max) (V): 18.5
Vout (min) (V): 1.2
Fixed output options (V): 3.3, 5
Rating: Automotive
Noise (µVrms): 215
PSRR at 100 KHz (dB): 26
Iq (typ) (mA): 0.005
Thermal resistance θJA (°C/W): 66
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Power good
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 60
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.25
Vin (max) (V): 5.5
Vin (min) (V): 2.2
Vout (max) (V): 4.5
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 6.5
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.012
Thermal resistance θJA (°C/W): 186.9, 191.6, 193, 194.1, 197.8
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Features: Enable, Output discharge
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 120
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.25
Vin (max) (V): 5.5
更多
Vin (min) (V): 2.2
Vout (max) (V): 4.5
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 6.5
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.012
Thermal resistance θJA (°C/W): 186.9, 191.6, 193, 194.1, 197.8
Load capacitance (min) (µF): 1
Regulated outputs (#): 1
Features: Enable, Output discharge
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 120
Operating temperature range (°C): -40 to 125
