Processor supplier: Texas Instruments
Processor name: OMAP
Regulated outputs (#): 14
Step-down DC/DC converter: 5
Step-up DC/DC converter: 0
LDO: 9
Vin (min) (V): 2.5
Vin (max) (V): 4.8
Vout (min) (V): 0.6
Vout (max) (V): 3.3
Iout (max) (A): 5
Configurability: Factory programmable
Features: Comm control
Rating: Catalog
Operating temperature range (°C): -40 to 85
Step-down DC/DC controller: 0
Step-up DC/DC controller: 0
Product type: Processor and FPGA
Processor supplier: Texas Instruments
Processor name: OMAP
更多
Regulated outputs (#): 14
Step-down DC/DC converter: 5
Step-up DC/DC converter: 0
LDO: 9
Vin (min) (V): 2.5
Vin (max) (V): 4.8
Vout (min) (V): 0.6
Vout (max) (V): 3.3
Iout (max) (A): 5
Configurability: Factory programmable
Features: Comm control
Rating: Catalog
Operating temperature range (°C): -40 to 85
Step-down DC/DC controller: 0
Step-up DC/DC controller: 0
Product type: Processor and FPGA
TPS7A16
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 具有电源正常指示和使能功能的 100mA、60V 超低 IQ 低压降 (LDO) 稳压器
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 0.1
Vin (max) (V): 60
Vin (min) (V): 3
Vout (max) (V): 18.5
Vout (min) (V): 1.2
Fixed output options (V): 3.3, 5
Rating: Catalog
Noise (µVrms): 215
PSRR at 100 KHz (dB): 26
Iq (typ) (mA): 0.005
Thermal resistance θJA (°C/W): 45, 66
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Power good
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 60
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output, Fixed Output
Iout (max) (A): 0.1
更多
Vin (max) (V): 60
Vin (min) (V): 3
Vout (max) (V): 18.5
Vout (min) (V): 1.2
Fixed output options (V): 3.3, 5
Rating: Catalog
Noise (µVrms): 215
PSRR at 100 KHz (dB): 26
Iq (typ) (mA): 0.005
Thermal resistance θJA (°C/W): 45, 66
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Power good
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 60
Operating temperature range (°C): -40 to 125
TLV70018-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 具有使能功能、1.8V 输出的汽车级 300mA、高 PSRR、低 IQ、低压降稳压器
Output options: Fixed Output
Iout (max) (A): 0.3
Vin (max) (V): 5.5
Vin (min) (V): 2
Vout (max) (V): 1.8
Vout (min) (V): 1.8
Fixed output options (V): 1.8
Rating: Automotive
Noise (µVrms): 48
PSRR at 100 KHz (dB): 51
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 263
TI functional safety category: Functional Safety-Capable
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 175
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
更多
Iout (max) (A): 0.3
Vin (max) (V): 5.5
Vin (min) (V): 2
Vout (max) (V): 1.8
Vout (min) (V): 1.8
Fixed output options (V): 1.8
Rating: Automotive
Noise (µVrms): 48
PSRR at 100 KHz (dB): 51
Iq (typ) (mA): 0.03
Thermal resistance θJA (°C/W): 263
TI functional safety category: Functional Safety-Capable
Load capacitance (min) (µF): 0.1
Regulated outputs (#): 1
Features: Enable, Soft start
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 175
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.25
Vin (max) (V): 6.5
Vin (min) (V): 2.7
Vout (max) (V): 3.3
Vout (min) (V): 3.3
Fixed output options (V): 3.3
Rating: Automotive
Noise (µVrms): 28
PSRR at 100 KHz (dB): 24
Iq (typ) (mA): 0.04
Thermal resistance θJA (°C/W): 200
Load capacitance (min) (µF): 2
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 125
Operating temperature range (°C): -40 to 105
Output options: Fixed Output
Iout (max) (A): 0.25
更多
Vin (max) (V): 6.5
Vin (min) (V): 2.7
Vout (max) (V): 3.3
Vout (min) (V): 3.3
Fixed output options (V): 3.3
Rating: Automotive
Noise (µVrms): 28
PSRR at 100 KHz (dB): 24
Iq (typ) (mA): 0.04
Thermal resistance θJA (°C/W): 200
Load capacitance (min) (µF): 2
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 125
Operating temperature range (°C): -40 to 105

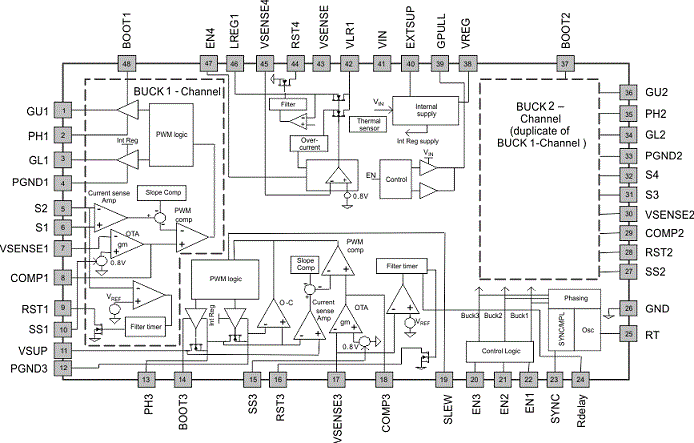

TPS43340-Q1
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压调整器
描述: 具有 2A 降压转换器和 300mA LDO 的汽车类 4V 至 40V 双通道同步降压控制器
Processor supplier: Generic
Processor name: Generic
Regulated outputs (#): 4
Step-down DC/DC converter: 1
Step-up DC/DC converter: 0
LDO: 1
Vin (min) (V): 4
Vin (max) (V): 40
Vout (min) (V): 0.9
Vout (max) (V): 11
Iout (max) (A): 2
Configurability: Hardware configurable
Rating: Automotive
Operating temperature range (°C): -40 to 125
Step-down DC/DC controller: 2
Step-up DC/DC controller: 0
Iq (typ) (mA): 0.03
Switching frequency (max) (kHz): 600
Shutdown current (ISD) (typ) (µA): 5
Switching frequency (typ) (kHz): 400
更多
Product type: Microcontrollers
Processor supplier: Generic
Processor name: Generic
Regulated outputs (#): 4
Step-down DC/DC converter: 1
Step-up DC/DC converter: 0
LDO: 1
Vin (min) (V): 4
Vin (max) (V): 40
Vout (min) (V): 0.9
Vout (max) (V): 11
Iout (max) (A): 2
Configurability: Hardware configurable
Rating: Automotive
Operating temperature range (°C): -40 to 125
Step-down DC/DC controller: 2
Step-up DC/DC controller: 0
Iq (typ) (mA): 0.03
Switching frequency (max) (kHz): 600
Shutdown current (ISD) (typ) (µA): 5
Switching frequency (typ) (kHz): 400
Product type: Microcontrollers
Output options: Adjustable Output
Iout (max) (A): 1
Vin (max) (V): 6.5
Vin (min) (V): 2.2
Vout (max) (V): 6
Vout (min) (V): 0.8
Rating: Catalog
Noise (µVrms): 23
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.06
Thermal resistance θJA (°C/W): 48
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 3
Dropout voltage (Vdo) (typ) (mV): 170
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 1
Vin (max) (V): 6.5
更多
Vin (min) (V): 2.2
Vout (max) (V): 6
Vout (min) (V): 0.8
Rating: Catalog
Noise (µVrms): 23
PSRR at 100 KHz (dB): 60
Iq (typ) (mA): 0.06
Thermal resistance θJA (°C/W): 48
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 3
Dropout voltage (Vdo) (typ) (mV): 170
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 0.25
Vin (max) (V): 30
Vin (min) (V): -20
Vout (max) (V): 29
Vout (min) (V): 1.23
Fixed output options (V): 3.3, 5
Rating: Military
Noise (µVrms): 80
PSRR at 100 KHz (dB): 32
Iq (typ) (mA): 0.13
Thermal resistance θJA (°C/W): 42
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Output discharge, Power good
Accuracy (%): 3
Dropout voltage (Vdo) (typ) (mV): 470
Operating temperature range (°C): -55 to 125
Output options: Adjustable Output
Iout (max) (A): 0.25
更多
Vin (max) (V): 30
Vin (min) (V): -20
Vout (max) (V): 29
Vout (min) (V): 1.23
Fixed output options (V): 3.3, 5
Rating: Military
Noise (µVrms): 80
PSRR at 100 KHz (dB): 32
Iq (typ) (mA): 0.13
Thermal resistance θJA (°C/W): 42
Load capacitance (min) (µF): 2.2
Regulated outputs (#): 1
Features: Enable, Output discharge, Power good
Accuracy (%): 3
Dropout voltage (Vdo) (typ) (mV): 470
Operating temperature range (°C): -55 to 125
Output options: Fixed Output
Iout (max) (A): 0.15
Vin (max) (V): 24
Vin (min) (V): 2.5
Vout (max) (V): 3.3
Vout (min) (V): 3
Fixed output options (V): 3, 3.3
Rating: Catalog
Noise (µVrms): 550
PSRR at 100 KHz (dB): 42
Iq (typ) (mA): 0.003
Thermal resistance θJA (°C/W): 170.8, 213
Load capacitance (min) (µF): 0.47
Regulated outputs (#): 1
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 400
Operating temperature range (°C): -40 to 125
Output options: Fixed Output
Iout (max) (A): 0.15
Vin (max) (V): 24
更多
Vin (min) (V): 2.5
Vout (max) (V): 3.3
Vout (min) (V): 3
Fixed output options (V): 3, 3.3
Rating: Catalog
Noise (µVrms): 550
PSRR at 100 KHz (dB): 42
Iq (typ) (mA): 0.003
Thermal resistance θJA (°C/W): 170.8, 213
Load capacitance (min) (µF): 0.47
Regulated outputs (#): 1
Accuracy (%): 2
Dropout voltage (Vdo) (typ) (mV): 400
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 0.05
Vin (max) (V): 50
Vin (min) (V): 7
Vout (max) (V): 48
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 58
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.02
Thermal resistance θJA (°C/W): 67
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 0.05
Vin (max) (V): 50
更多
Vin (min) (V): 7
Vout (max) (V): 48
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 58
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.02
Thermal resistance θJA (°C/W): 67
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 0.05
Vin (max) (V): 28
Vin (min) (V): 7
Vout (max) (V): 26
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 58
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.025
Thermal resistance θJA (°C/W): 67
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
Output options: Adjustable Output
Iout (max) (A): 0.05
Vin (max) (V): 28
更多
Vin (min) (V): 7
Vout (max) (V): 26
Vout (min) (V): 1.2
Rating: Catalog
Noise (µVrms): 58
PSRR at 100 KHz (dB): 38
Iq (typ) (mA): 0.025
Thermal resistance θJA (°C/W): 67
Load capacitance (min) (µF): 4.7
Regulated outputs (#): 1
Features: Enable
Accuracy (%): 2.5
Dropout voltage (Vdo) (typ) (mV): 290
Operating temperature range (°C): -40 to 125
