Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Sitara AM35x Regulated outputs (#): 5 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 1.8 Vin (max) (V): 6.3 Vout (min) (V): 0.725 Vout (max) (V): 19.2 Iout (max) (A): 1.5 Configurability: Factory programmable Features: Comm control, Power good, Power sequencing Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.08 Switching frequency (max) (kHz): 2250 Shutdown current (ISD) (typ) (µA): 0.08 Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA

Vin (max) (V): 10 Vin (min) (V): 5 Vout (max) (V): 4.5 Vout (min) (V): 1.2 Fixed output options (V): 0 Rating: High Temp Noise (µVrms): 190 PSRR at 100 KHz (dB): 27 Iq (typ) (mA): 0.017 Thermal resistance θJA (°C/W): 259 Load capacitance (min) (µF): 4.7 Regulated outputs (#): 1 Features: Enable Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 71 Operating temperature range (°C): -55 to 210

Switching frequency (typ) (kHz): 2250 Product type: Camera sensor Processor supplier: Texas Instruments Processor name: C2000 Regulated outputs (#): 3 Step-down DC/DC converter: 1 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.3 Vin (max) (V): 6 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 0.6 Configurability: Factory programmable, Hardware configurable Features: Enable pin, Power good, Spread-Spectrum Clock (SSC) Generation Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.073 Switching frequency (max) (kHz): 2847 Shutdown current (ISD) (typ) (µA): 0.16 Switching frequency (typ) (kHz): 2250 Product type: Camera sensor

Regulated outputs (#): 3 Step-down DC/DC converter: 1 Step-up DC/DC converter: 0 LDO: 2 Vin (min) (V): 2.3 Vin (max) (V): 6 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 0.6 Configurability: Factory programmable, Hardware configurable Features: Power good Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.073 Switching frequency (max) (kHz): 2847 Shutdown current (ISD) (typ) (µA): 11 Switching frequency (typ) (kHz): 2250 Product type: Camera sensor

Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: DM35x, DM64x, OMAP, Sitara AM35x Regulated outputs (#): 6 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 3 Vin (min) (V): 2.5 Vin (max) (V): 6 Vout (min) (V): 0.6 Vout (max) (V): 6 Iout (max) (A): 1.7 Configurability: Hardware configurable, Software configurable Features: Comm control, Power good, Power sequencing Rating: Automotive Operating temperature range (°C): -40 to 125 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.085 Switching frequency (max) (kHz): 2550 Shutdown current (ISD) (typ) (µA): 23 Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA

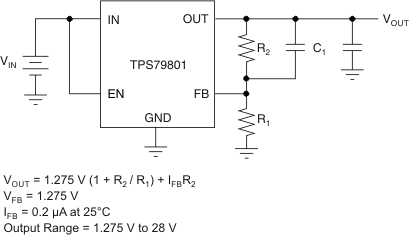

Vin (min) (V): 3 Vout (max) (V): 28 Vout (min) (V): 1.275 Fixed output options (V): 5 Rating: Automotive Noise (µVrms): 100 PSRR at 100 KHz (dB): 36 Iq (typ) (mA): 0.04 Thermal resistance θJA (°C/W): 57 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 300 Operating temperature range (°C): -40 to 125

Vin (max) (V): 6.5 Vin (min) (V): 2.7 Vout (max) (V): 6.3 Vout (min) (V): 1.2 Fixed output options (V): 1.8, 3, 3.3 Rating: Catalog Noise (µVrms): 28 PSRR at 100 KHz (dB): 28 Iq (typ) (mA): 0.044 Thermal resistance θJA (°C/W): 65 Load capacitance (min) (µF): 2 Regulated outputs (#): 1 Features: Enable Accuracy (%): 2 Dropout voltage (Vdo) (typ) (mV): 125 Operating temperature range (°C): -40 to 125

Vin (min) (V): 2.2 Vout (max) (V): 3.3 Vout (min) (V): 1.9 Fixed output options (V): 1.9, 3.3 Rating: Automotive Noise (µVrms): 51 PSRR at 100 KHz (dB): 32 Iq (typ) (mA): 0.4 Thermal resistance θJA (°C/W): 52 Load capacitance (min) (µF): 1 Regulated outputs (#): 1 Accuracy (%): 3 Dropout voltage (Vdo) (typ) (mV): 130 Operating temperature range (°C): -40 to 125

Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA Processor supplier: Texas Instruments Processor name: Sitara AM335x, Sitara AMIC110 Regulated outputs (#): 6 Step-down DC/DC converter: 3 Step-up DC/DC converter: 0 LDO: 3 Vin (min) (V): 2.5 Vin (max) (V): 6 Vout (min) (V): 1 Vout (max) (V): 5.6 Iout (max) (A): 1.6 Configurability: Hardware configurable Features: Power sequencing Rating: Catalog Operating temperature range (°C): -40 to 85 Step-down DC/DC controller: 0 Step-up DC/DC controller: 0 Iq (typ) (mA): 0.085 Switching frequency (max) (kHz): 2550 Shutdown current (ISD) (typ) (µA): 16 Switching frequency (typ) (kHz): 2250 Product type: Processor and FPGA

Vin (min) (V): 2.5 Vout (max) (V): 8.8 Vout (min) (V): 1.2 Fixed output options (V): 3.3 Rating: Catalog Noise (µVrms): 575 PSRR at 100 KHz (dB): 35 Iq (typ) (mA): 0.003 Thermal resistance θJA (°C/W): 69, 79, 195 Load capacitance (min) (µF): 0.47 Regulated outputs (#): 1 Accuracy (%): 3.3 Dropout voltage (Vdo) (typ) (mV): 415 Operating temperature range (°C): -40 to 125
