REF3130
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路

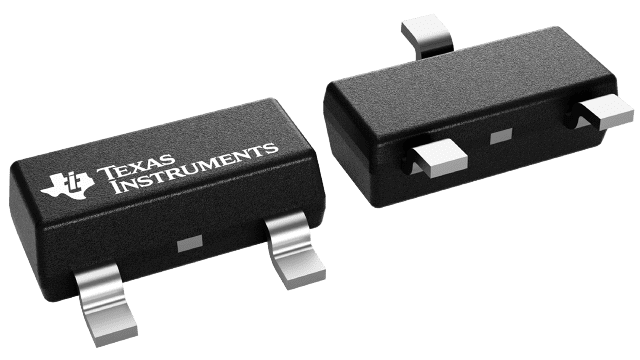

描述: 采用 3 引脚 SOT-23 封装的 3V、20ppm/°C（最大值）、100µA 串联电压基准
VO (V): 3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 3.05
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 39
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
VO (V): 3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 3.05
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 39
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
REF3133
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3.3 引脚 SOT-23 封装的 3V、20ppm/°C（最大值）、100µA 串联电压基准
VO (V): 3.3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 3.35
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 43
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
VO (V): 3.3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 3.35
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 43
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
REF3140
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 4V、20ppm/°C（最大值）、100µA 串联电压基准
VO (V): 4.096
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 4.146
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 53
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
VO (V): 4.096
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 20
Vin (min) (V): 4.146
Vin (max) (V): 5.5
Iq (typ) (mA): 0.1
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 53
Iout/Iz (max) (mA): 10
Operating temperature range (°C): -40 to 125
VO (V): 2.5
Initial accuracy (max) (%): 0.8
VO adj (min) (V): 2.5
VO adj (max) (V): 2.5
Iz for regulation (min) (µA): 20
Reference voltage (V): Fixed
Rating: Space
Temp coeff (max) (ppm/°C): 150
Operating temperature range (°C): -55 to 125
Iout/Iz (max) (mA): 20
VO (V): 2.5
Initial accuracy (max) (%): 0.8
VO adj (min) (V): 2.5
VO adj (max) (V): 2.5
Iz for regulation (min) (µA): 20
Reference voltage (V): Fixed
Rating: Space
Temp coeff (max) (ppm/°C): 150
Operating temperature range (°C): -55 to 125
Iout/Iz (max) (mA): 20
VO (V): 1.25
Initial accuracy (max) (%): 0.2
VO adj (min) (V): 1.25
VO adj (max) (V): 1.25
Iz for regulation (min) (µA): 1.2
Reference voltage (V): Fixed
Rating: Catalog
Temp coeff (max) (ppm/°C): 50
Operating temperature range (°C): -40 to 125
Iout/Iz (max) (mA): 5
VO (V): 1.25
Initial accuracy (max) (%): 0.2
VO adj (min) (V): 1.25
VO adj (max) (V): 1.25
Iz for regulation (min) (µA): 1.2
Reference voltage (V): Fixed
Rating: Catalog
Temp coeff (max) (ppm/°C): 50
Operating temperature range (°C): -40 to 125
Iout/Iz (max) (mA): 5
VO (V): 1.8, 2.048, 2.5, 3, 3.3, 4.1
Initial accuracy (max) (%): 0.05, 0.1, 0.2, 0.4, 0.5
Temp coeff (max) (ppm/°C): 10, 20, 30
Vin (min) (V): 2.2
Vin (max) (V): 5.5
Iq (typ) (mA): 0.06
Rating: Catalog
Features: Enable pin
LFN 0.1 to 10 Hz (typ) (µVPP): 170, 190, 240, 285, 310, 350
Iout/Iz (max) (mA): 20
Operating temperature range (°C): -40 to 125
Shutdown current (ISD) (typ) (µA): 3
VO (V): 1.8, 2.048, 2.5, 3, 3.3, 4.1
Initial accuracy (max) (%): 0.05, 0.1, 0.2, 0.4, 0.5
Temp coeff (max) (ppm/°C): 10, 20, 30
Vin (min) (V): 2.2
Vin (max) (V): 5.5
Iq (typ) (mA): 0.06
Rating: Catalog
Features: Enable pin
更多
LFN 0.1 to 10 Hz (typ) (µVPP): 170, 190, 240, 285, 310, 350
Iout/Iz (max) (mA): 20
Operating temperature range (°C): -40 to 125
Shutdown current (ISD) (typ) (µA): 3
REF2912
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 1.25V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 1.25
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 1.8
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 14
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 1.25
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 1.8
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 14
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF2920
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 2.048V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 2.048
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 2.049
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 23
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 2.048
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 2.049
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 23
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF2925
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 2.5V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 2.5
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 2.501
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 28
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 2.5
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 2.501
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 28
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF2930
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 3V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 3
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 3.001
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 33
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 3
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 3.001
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 33
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
