REF2933
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路

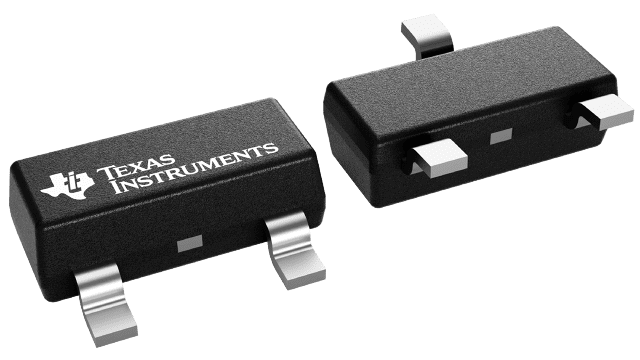

描述: 采用 3 引脚 SOT-23 封装的 3.3V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 3.3
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 3.301
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 36
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 3.3
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 3.301
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 36
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF2940
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 4.096V、100ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 4.096
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 4.097
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 45
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 4.096
Initial accuracy (max) (%): 2
Temp coeff (max) (ppm/°C): 100
Vin (min) (V): 4.097
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 45
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF3012
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 1.25V、50ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 1.25
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 1.8
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 14
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 1.25
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 1.8
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 14
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF3020
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 2.048V、50ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 2.048
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 2.049
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 23
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 2.048
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 2.049
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 23
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF3025
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 2.5V、50ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 2.5
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 2.501
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 28
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 2.5
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 2.501
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 28
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF3033
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 3.3V、50ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 3.3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 3.301
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 36
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 3.3
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 3.301
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 36
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
REF3040
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路
描述: 采用 3 引脚 SOT-23 封装的 4.096V、50ppm/°C、50µA 输入串联（带隙）电压基准
VO (V): 4.096
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 4.097
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 45
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
VO (V): 4.096
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 75
Vin (min) (V): 4.097
Vin (max) (V): 5.5
Iq (typ) (mA): 0.042
Rating: Catalog
LFN 0.1 to 10 Hz (typ) (µVPP): 45
Iout/Iz (max) (mA): 25
Operating temperature range (°C): -40 to 125
LM4121
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 电压基准电路

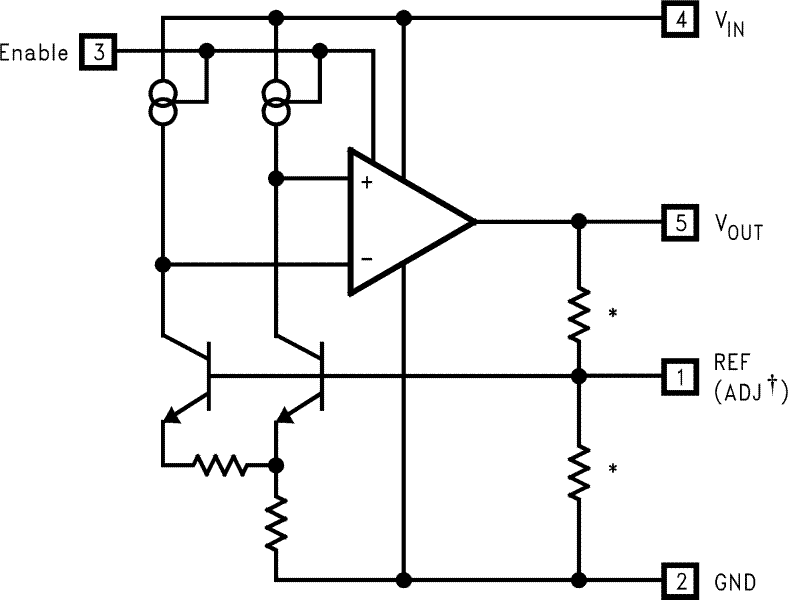

描述: 具有使能引脚、固定和可调输出电压的 0.2%、50ppm/°C 温漂、精密串联电压基准，
VO (V): 1.25
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 50
Vin (min) (V): 1.8
Vin (max) (V): 12
Iq (typ) (mA): 0.16
Rating: Catalog
Features: Enable pin
LFN 0.1 to 10 Hz (typ) (µVPP): 20
Iout/Iz (max) (mA): 5
Operating temperature range (°C): -40 to 85
Shutdown current (ISD) (typ) (µA): 2
VO (V): 1.25
Initial accuracy (max) (%): 0.2
Temp coeff (max) (ppm/°C): 50
Vin (min) (V): 1.8
Vin (max) (V): 12
Iq (typ) (mA): 0.16
Rating: Catalog
Features: Enable pin
更多
LFN 0.1 to 10 Hz (typ) (µVPP): 20
Iout/Iz (max) (mA): 5
Operating temperature range (°C): -40 to 85
Shutdown current (ISD) (typ) (µA): 2
VO (V): 1.24
Initial accuracy (max) (%): 0.5
VO adj (min) (V): 1.24
VO adj (max) (V): 30
Iz for regulation (min) (µA): 80
Reference voltage (V): adjustable
Rating: Catalog
Temp coeff (max) (ppm/°C): 138
Operating temperature range (°C): -40 to 85
Iout/Iz (max) (mA): 15
VO (V): 1.24
Initial accuracy (max) (%): 0.5
VO adj (min) (V): 1.24
VO adj (max) (V): 30
Iz for regulation (min) (µA): 80
Reference voltage (V): adjustable
Rating: Catalog
Temp coeff (max) (ppm/°C): 138
Operating temperature range (°C): -40 to 85
Iout/Iz (max) (mA): 15
VO (V): 2.5
Initial accuracy (max) (%): 0.4
VO adj (min) (V): 2.5
VO adj (max) (V): 36
Iz for regulation (min) (µA): 450
Reference voltage (V): adjustable
Rating: Military
Temp coeff (max) (ppm/°C): 114
Operating temperature range (°C): -55 to 125
Iout/Iz (max) (mA): 100
VO (V): 2.5
Initial accuracy (max) (%): 0.4
VO adj (min) (V): 2.5
VO adj (max) (V): 36
Iz for regulation (min) (µA): 450
Reference voltage (V): adjustable
Rating: Military
Temp coeff (max) (ppm/°C): 114
Operating temperature range (°C): -55 to 125
Iout/Iz (max) (mA): 100
