TMUX8213
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有闩锁效应抑制和 1.8V（逻辑低电平 + 逻辑高电平）的 100V、扁平 RON、1:1 (SPST)、四通道开关
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44, 72, 100
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-36, +/-50
Protocols: Analog
Ron (typ) (Ω): 5
CON (typ) (pF): 14
ON-state leakage current (max) (µA): 0.07
Supply current (typ) (µA): 350
Bandwidth (MHz): 420
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 125
Rating: Catalog
Drain supply voltage (max) (V): 100
Supply voltage (max) (V): 100
Negative rail supply voltage (max) (V): -50
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44, 72, 100
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-36, +/-50
更多
Protocols: Analog
Ron (typ) (Ω): 5
CON (typ) (pF): 14
ON-state leakage current (max) (µA): 0.07
Supply current (typ) (µA): 350
Bandwidth (MHz): 420
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 125
Rating: Catalog
Drain supply voltage (max) (V): 100
Supply voltage (max) (V): 100
Negative rail supply voltage (max) (V): -50
TMUX7436F
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有故障保护功能、闩锁效应抑制和 1.8V 逻辑电平的 ±60V 双路 2:1 多路复用器
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 8.3
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.027
Supply current (typ) (µA): 26
Bandwidth (MHz): 220
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 126.5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 8.3
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.027
Supply current (typ) (µA): 26
Bandwidth (MHz): 220
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 126.5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
TMUX7349F
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有故障阈值、闩锁效应抑制和 1.8V 逻辑电平的 ±60V 故障保护、双路 4:1 多路复用器
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 180
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 0.14
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -48
Configuration: 4:1
Number of channels: 2
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 180
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 0.14
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -48

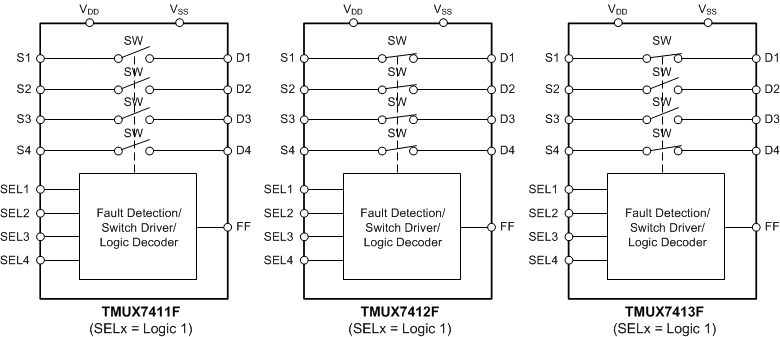

TMUX7411F
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 1.8V 逻辑电平的 ±60V 故障保护、1:1 (SPST) 四通道开关（四个低电平有效）
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 9.5
CON (typ) (pF): 20
ON-state leakage current (max) (µA): 0.025
Supply current (typ) (µA): 300
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 50
Rating: Catalog
Drain supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -44
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
更多
Ron (typ) (Ω): 9.5
CON (typ) (pF): 20
ON-state leakage current (max) (µA): 0.025
Supply current (typ) (µA): 300
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 50
Rating: Catalog
Drain supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -44
TMUX7413F
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 1.8V 逻辑电平的 ±60V 故障保护、1:1 (SPST) 4 通道开关（2 个低电平有效，2 个高电平有效）
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 9.5
CON (typ) (pF): 20
ON-state leakage current (max) (µA): 0.025
Supply current (typ) (µA): 300
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 10
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -44
Configuration: 1:1 SPST
Number of channels: 4
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 9.5
CON (typ) (pF): 20
ON-state leakage current (max) (µA): 0.025
Supply current (typ) (µA): 300
Bandwidth (MHz): 500
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 10
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -44
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 5, 12, 16, 20, 24
Power supply voltage - dual (V): +/-10, +/-12, +/-5
Protocols: Analog
Ron (typ) (Ω): 60
CON (typ) (pF): 11
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 20
Bandwidth (MHz): 400
Operating temperature range (°C): -55 to 125
Features: 1.8-V compatible control inputs
Input/output continuous current (max) (mA): 10
Rating: Catalog
Drain supply voltage (max) (V): 24
Supply voltage (max) (V): 24
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 5, 12, 16, 20, 24
Power supply voltage - dual (V): +/-10, +/-12, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 60
CON (typ) (pF): 11
ON-state leakage current (max) (µA): 0.1
Supply current (typ) (µA): 20
Bandwidth (MHz): 400
Operating temperature range (°C): -55 to 125
Features: 1.8-V compatible control inputs
Input/output continuous current (max) (mA): 10
Rating: Catalog
Drain supply voltage (max) (V): 24
Supply voltage (max) (V): 24
TMUX6236
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有闩锁效应抑制特性和 1.8V 逻辑电平的 36V、低 RON、2:1 (SPDT)、双通道精密开关
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 5, 12, 16, 20, 36
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 200
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 7
Bandwidth (MHz): 30
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 36
Supply voltage (max) (V): 36
Negative rail supply voltage (max) (V): 36
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 5, 12, 16, 20, 36
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 200
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 7
Bandwidth (MHz): 30
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 36
Supply voltage (max) (V): 36
Negative rail supply voltage (max) (V): 36
TMUX7236
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有闩锁效应抑制和 1.8V 逻辑电平的 44V、低导通电阻、2:1 (SPDT) 双通道精密开关
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 200
ON-state leakage current (max) (µA): 0.05
Supply current (typ) (µA): 35
Bandwidth (MHz): 30
Operating temperature range (°C): -40 to 125
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): 44
Configuration: 2:1 SPDT
Number of channels: 2
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
更多
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 2
CON (typ) (pF): 200
ON-state leakage current (max) (µA): 0.05
Supply current (typ) (µA): 35
Bandwidth (MHz): 30
Operating temperature range (°C): -40 to 125
Features: 1.8-V compatible control inputs, Break-before-make
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): 44
TMUX7219M
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有 1.8V 逻辑扩展温度的 44V、低 Ron、2:1、1 通道闩锁效应抑制精密多路复用器
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 2.1
CON (typ) (pF): 150
ON-state leakage current (max) (µA): 0.029
Supply current (typ) (µA): 25
Bandwidth (MHz): 40
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
Configuration: 2:1 SPDT
Number of channels: 1
Power supply voltage - single (V): 5, 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 2.1
CON (typ) (pF): 150
ON-state leakage current (max) (µA): 0.029
Supply current (typ) (µA): 25
Bandwidth (MHz): 40
Operating temperature range (°C): -55 to 125
Input/output continuous current (max) (mA): 330
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -22
TMUX7348F
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路
描述: 具有故障阈值、闩锁效应抑制和 1.8V 逻辑电平的 ±60V 故障保护、8:1 多路复用器
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog
Ron (typ) (Ω): 180
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 0.14
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -48
Configuration: 8:1
Number of channels: 1
Power supply voltage - single (V): 12, 16, 20, 36, 44
Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
更多
Protocols: Analog
Ron (typ) (Ω): 180
CON (typ) (pF): 30
ON-state leakage current (max) (µA): 0.022
Supply current (typ) (µA): 0.14
Bandwidth (MHz): 150
Operating temperature range (°C): -40 to 125
Input/output continuous current (max) (mA): 5
Rating: Catalog
Drain supply voltage (max) (V): 44
Supply voltage (max) (V): 44
Negative rail supply voltage (max) (V): -48
