TMUX6212


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑电平控制的 36V、低 RON、1:1 四通道多路复用器

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 5, 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 2 CON (typ) (pF): 145 ON-state leakage current (max) (µA): 0.06 Supply current (typ) (µA): 65 Bandwidth (MHz): 45 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 370 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -18 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 5, 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
Protocols: Analog Ron (typ) (Ω): 2 CON (typ) (pF): 145 ON-state leakage current (max) (µA): 0.06 Supply current (typ) (µA): 65 Bandwidth (MHz): 45 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 370 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -18

TMUX6219


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑控制的 36V 低 RON、2:1 单通道多路复用器

Configuration: 2:1 SPDT Number of channels: 1 Power supply voltage - single (V): 5, 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5 Protocols: Analog Ron (typ) (Ω): 2 CON (typ) (pF): 150 ON-state leakage current (max) (µA): 0.07 Supply current (typ) (µA): 35 Bandwidth (MHz): 43 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 330 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -18 Configuration: 2:1 SPDT Number of channels: 1 Power supply voltage - single (V): 5, 12, 16, 20, 36 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-5
Protocols: Analog Ron (typ) (Ω): 2 CON (typ) (pF): 150 ON-state leakage current (max) (µA): 0.07 Supply current (typ) (µA): 35 Bandwidth (MHz): 43 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 330 Rating: Catalog Drain supply voltage (max) (V): 36 Supply voltage (max) (V): 36 Negative rail supply voltage (max) (V): -18

TMUX7208


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑电平和闩锁效应抑制的 44V、8:1 精密多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5 Protocols: Analog Ron (typ) (Ω): 4 CON (typ) (pF): 185 ON-state leakage current (max) (µA): 0.04 Supply current (typ) (µA): 3 Bandwidth (MHz): 30 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 300 Rating: Catalog Drain supply voltage (max) (V): 22 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -4.5 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog Ron (typ) (Ω): 4 CON (typ) (pF): 185 ON-state leakage current (max) (µA): 0.04 Supply current (typ) (µA): 3 Bandwidth (MHz): 30 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 300 Rating: Catalog Drain supply voltage (max) (V): 22 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -4.5

TMUX7212


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑电平（逻辑高电平）的 44V、低 RON、1:1 (SPST) 四通道精密多路复用器

Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 5, 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5 Protocols: Analog Ron (typ) (Ω): 1.7 CON (typ) (pF): 144 ON-state leakage current (max) (µA): 0.0033 Supply current (typ) (µA): 65 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 370 Rating: Catalog Drain supply voltage (max) (V): 22 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -22 Configuration: 1:1 SPST Number of channels: 4 Power supply voltage - single (V): 5, 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5 Protocols: Analog
Ron (typ) (Ω): 1.7 CON (typ) (pF): 144 ON-state leakage current (max) (µA): 0.0033 Supply current (typ) (µA): 65 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 370 Rating: Catalog Drain supply voltage (max) (V): 22 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -22

TMUX7219


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑的 44V、抗锁存、2:1 (SPDT) 精密开关

Configuration: 2:1 SPDT Number of channels: 1 Power supply voltage - single (V): 5, 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5 Protocols: Analog Ron (typ) (Ω): 2.1 CON (typ) (pF): 150 ON-state leakage current (max) (µA): 0.029 Supply current (typ) (µA): 25 Bandwidth (MHz): 40 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 330 Rating: Catalog Drain supply voltage (max) (V): 44 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -22 Configuration: 2:1 SPDT Number of channels: 1 Power supply voltage - single (V): 5, 12, 16, 20, 36, 44 Power supply voltage - dual (V): +/-10, +/-15, +/-18, +/-22, +/-5
Protocols: Analog Ron (typ) (Ω): 2.1 CON (typ) (pF): 150 ON-state leakage current (max) (µA): 0.029 Supply current (typ) (µA): 25 Bandwidth (MHz): 40 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 330 Rating: Catalog Drain supply voltage (max) (V): 44 Supply voltage (max) (V): 44 Negative rail supply voltage (max) (V): -22

TMUX1309


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑控制的单通道、4:2 通用模拟多路复用器

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog, LVDS Ron (typ) (Ω): 59 CON (typ) (pF): 11 ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog, LVDS Ron (typ) (Ω): 59 CON (typ) (pF): 11
ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

TMUX1309-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

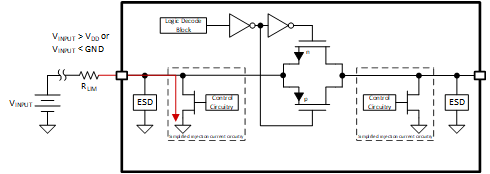

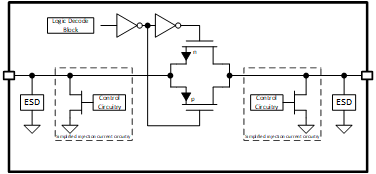

描述: 具有注入控制和 1.8V 逻辑电平的汽车类 5V、4:1、双通道多路复用器

Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog, LVDS Ron (typ) (Ω): 59 CON (typ) (pF): 11 ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Automotive Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 4:1 Number of channels: 2 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog, LVDS Ron (typ) (Ω): 59 CON (typ) (pF): 11
ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Automotive Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

TMUX1575


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.2V 逻辑的低电容、2:1 (SPDT) 4 通道断电保护开关

Configuration: 2:1 SPDT Number of channels: 4 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, MIPI, RGMII, SPI, TDM, UART Ron (typ) (Ω): 1.7 CON (typ) (pF): 10 ON-state leakage current (max) (µA): 0.01 Supply current (typ) (µA): 7 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6 Configuration: 2:1 SPDT Number of channels: 4 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3 Protocols: Analog, I2C, I2S, JTAG, MIPI, RGMII, SPI, TDM, UART Ron (typ) (Ω): 1.7 CON (typ) (pF): 10 ON-state leakage current (max) (µA): 0.01
Supply current (typ) (µA): 7 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 30 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

TMUX1208-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑电平的汽车类 5V、8:1、单通道多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 5 CON (typ) (pF): 85 ON-state leakage current (max) (µA): 0.75 Supply current (typ) (µA): 0.02 Bandwidth (MHz): 65 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 30 Rating: Automotive Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.2, 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 5 CON (typ) (pF): 85
ON-state leakage current (max) (µA): 0.75 Supply current (typ) (µA): 0.02 Bandwidth (MHz): 65 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 30 Rating: Automotive Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

TMUX1308


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 模拟开关电路

描述: 具有 1.8V 逻辑电平控制的 5V、8:1、单通道通用多路复用器

Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 59 CON (typ) (pF): 11 ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5 Configuration: 8:1 Number of channels: 1 Power supply voltage - single (V): 1.8, 2.5, 3.3, 5 Protocols: Analog Ron (typ) (Ω): 59 CON (typ) (pF): 11
ON-state leakage current (max) (µA): 0.8 Supply current (typ) (µA): 0.003 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 125 Input/output continuous current (max) (mA): 100 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5
