Ron (max) (mΩ): 10000 Turnoff time (disable) (max) (ns): 3.5 Turnon time (enable) (max) (ns): 6.5 VIH (min) (V): 2 VIL (max) (V): 0.8 Protocols: Composite, RGB Configuration: 2:1 SPDT Number of channels: 4 Bandwidth (MHz): 300 Supply voltage (max) (V): 3.6 Supply voltage (min) (V): 3 Ron (typ) (mΩ): 5000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 Supply current (typ) (µA): 10 ESD HBM (typ) (kV): 2 Operating temperature range (°C): -40 to 85 Crosstalk (dB): -80 ESD CDM (kV): 1 Input/output continuous current (max) (mA): 128 COFF (typ) (pF): 10 CON (typ) (pF): 17 Off isolation (typ) (dB): -50 OFF-state leakage current (max) (µA): 1 Propagation delay time (µs): 0.0025 Ron (max) (mΩ): 10000 Turnoff time (disable) (max) (ns): 3.5 Turnon time (enable) (max) (ns): 6.5 VIH (min) (V): 2 VIL (max) (V): 0.8

Turnoff time (disable) (max) (ns): 6 Turnon time (enable) (max) (ns): 6 VIH (min) (V): 2 VIL (max) (V): 0.8 Protocols: Composite, RGB Configuration: 2:1 SPDT Number of channels: 4 Bandwidth (MHz): 300 Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 4 Ron (typ) (mΩ): 3000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 5.5 Supply current (typ) (µA): 3 Operating temperature range (°C): -40 to 85 Crosstalk (dB): -63 ESD CDM (kV): 1 Input/output continuous current (max) (mA): 128 COFF (typ) (pF): 4 CON (typ) (pF): 14 Off isolation (typ) (dB): -60 OFF-state leakage current (max) (µA): 1 Propagation delay time (µs): 0.006 Ron (max) (mΩ): 10000 Turnoff time (disable) (max) (ns): 6 Turnon time (enable) (max) (ns): 6 VIH (min) (V): 2 VIL (max) (V): 0.8

CON (typ) (pF): 17.5 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 1 Bandwidth (MHz): 220 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 50 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5

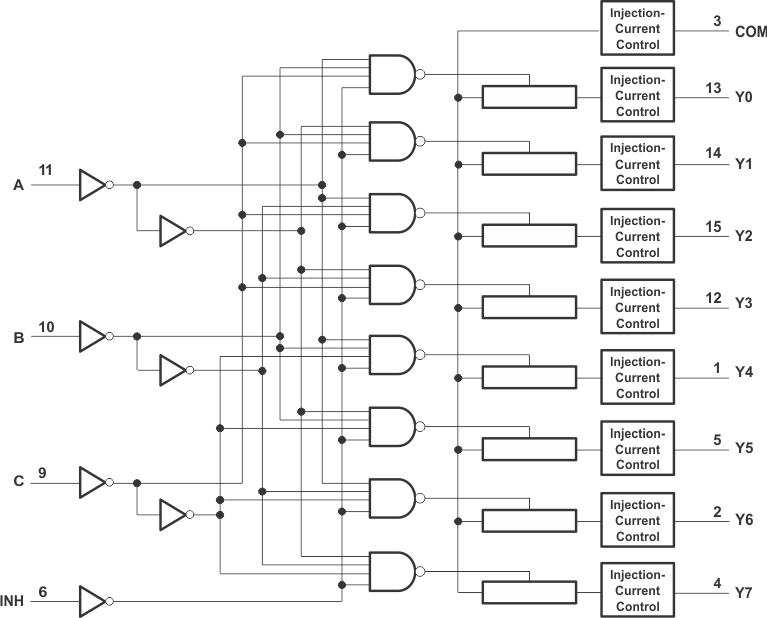

ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 2 Operating temperature range (°C): -40 to 125 Features: Injection current control Input/output continuous current (max) (mA): 25 Rating: Automotive Drain supply voltage (max) (V): 6 Supply voltage (max) (V): 6

Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 85 Input/output continuous current (max) (mA): 50 Rating: Catalog Drain supply voltage (max) (V): 2.7 Supply voltage (max) (V): 2.7

CON (typ) (pF): 8 ON-state leakage current (max) (µA): 1 Supply current (typ) (µA): 2000 Bandwidth (MHz): 500 Operating temperature range (°C): -40 to 85 Features: Powered-off protection, Supports input voltage beyond supply Input/output continuous current (max) (mA): 64 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

Operating temperature range (°C): -40 to 85 Features: Powered-off protection, Signal path translation Input/output continuous current (max) (mA): 100 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

ON-state leakage current (max) (µA): 20 Bandwidth (MHz): 100 Operating temperature range (°C): -40 to 85 Features: Powered-off protection, Signal path translation Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 3.6 Supply voltage (max) (V): 3.6

Power supply voltage - dual (V): +/-2.5, +/-5 Protocols: Analog Ron (typ) (Ω): 40 CON (typ) (pF): 25 ON-state leakage current (max) (µA): 2 Supply current (typ) (µA): 8 Bandwidth (MHz): 180 Operating temperature range (°C): -40 to 125 Features: Break-before-make Input/output continuous current (max) (mA): 25 Rating: Automotive Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 10 Negative rail supply voltage (max) (V): 0

Operating temperature range (°C): -40 to 85 Features: Powered-off protection, Undershoot protection Input/output continuous current (max) (mA): 128 Rating: Catalog Drain supply voltage (max) (V): 5.5 Supply voltage (max) (V): 5.5
