UC2846M

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 电流模式 PWM 控制器

Vin (max) (V): 40 Operating temperature range (°C): -40 to 85 Control mode: Current Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Military Duty cycle (max) (%): 50 Vin (max) (V): 40 Operating temperature range (°C): -40 to 85 Control mode: Current Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Military Duty cycle (max) (%): 50

UC2901

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 温度范围为 –40°C 至 85°C 的隔离式反馈生成器

Vin (max) (V): 40 Operating temperature range (°C): -40 to 85 Control mode: Voltage Rating: Catalog Features: 1% reference, Isolated feedback generator, Synchronizable Vin (max) (V): 40 Operating temperature range (°C): -40 to 85 Control mode: Voltage Rating: Catalog Features: 1% reference, Isolated feedback generator, Synchronizable

UC3526

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 工作温度范围为 0°C 至 70°C 的 35V、双路 0.1A 400KHz PWM 控制器

Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Catalog, Military Features: Error amplifier, Multi-topology, Soft start, Synchronization pin Duty cycle (max) (%): 50 Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Catalog, Military Features: Error amplifier, Multi-topology, Soft start, Synchronization pin Duty cycle (max) (%): 50

UC3526A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 工作温度范围为 0°C 至 70°C 的 35V、双路 0.2A 600KHz PWM 控制器

Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Rating: Catalog Duty cycle (max) (%): 50 Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Rating: Catalog Duty cycle (max) (%): 50

UC3526AM

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 稳压脉宽调制器

Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Rating: Military Duty cycle (max) (%): 50 Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Rating: Military Duty cycle (max) (%): 50

UC3526M

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 稳压脉宽调制器

Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Military Features: Error amplifier, Multi-topology, Soft start, Synchronization pin Duty cycle (max) (%): 50 Vin (max) (V): 35 Operating temperature range (°C): 0 to 70 Control mode: Voltage Topology: Boost, Flyback, Forward, Full bridge, Half bridge, Push pull Rating: Military Features: Error amplifier, Multi-topology, Soft start, Synchronization pin Duty cycle (max) (%): 50

UC3543M

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 电源监控电路

Operating temperature range (°C): 0 to 70 Rating: Military Iq (typ) (µA): 7000 Operating temperature range (°C): 0 to 70 Rating: Military Iq (typ) (µA): 7000

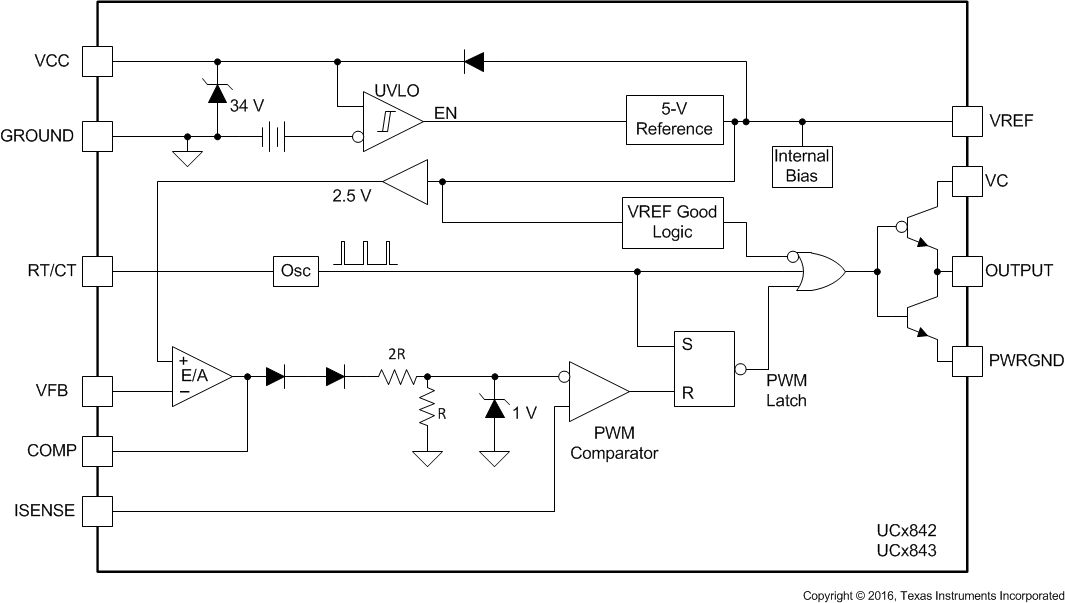

UC3842

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 具有 16V/10V UVLO 和 100% 占空比、温度范围为 0°C 至 70°C 的单端 500KHz 电流模式 PWM 控制器

Vin (max) (V): 28 Operating temperature range (°C): 0 to 70 Control mode: Peak current mode Topology: Boost, Buck, Buck boost, Flyback, Forward Rating: Catalog Duty cycle (max) (%): 100 Vin (max) (V): 28 Operating temperature range (°C): 0 to 70 Control mode: Peak current mode Topology: Boost, Buck, Buck boost, Flyback, Forward Rating: Catalog Duty cycle (max) (%): 100

UC3842M

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 电流模式 PWM 控制器

Vin (max) (V): 28 Operating temperature range (°C): -40 to 85 Control mode: Peak current mode Topology: Boost, Buck, Buck boost, Flyback, Forward Rating: Military Duty cycle (max) (%): 100 Vin (max) (V): 28 Operating temperature range (°C): -40 to 85 Control mode: Peak current mode Topology: Boost, Buck, Buck boost, Flyback, Forward Rating: Military Duty cycle (max) (%): 100

UC3843

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路

描述: 具有 8.4V/7.6V UVLO 和 100% 占空比、温度范围为 0°C 至 70°C 的单端 500KHz 电流模式 PWM 控制器
