V[CC] max: 25.0V
I[CC] max: 20.0mA
I[q]: 300.0µA
I[Q] max: 2.0mA
Operating Temperature max: 125.0°C
Applications: SMPS
Output Current Type: MOSFET Gate Driver
Mounting: SMT

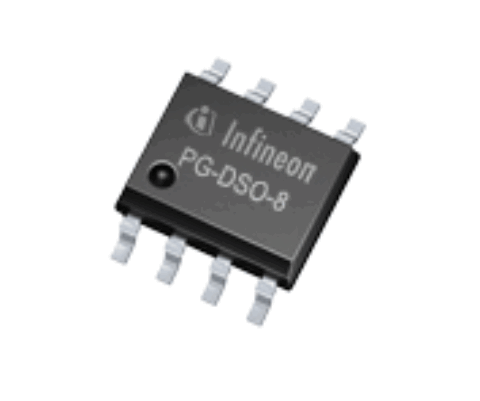

Package: PG-DSO-8
Frequency Range max: 285.0kHz
Budgetary Price €/1k: 0.46

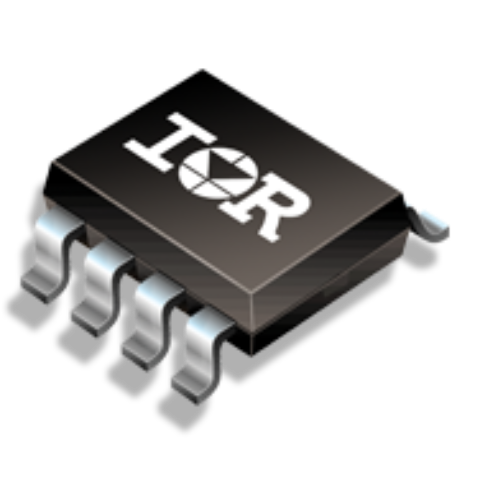

IR11662SPBF
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路
描述: 200V Secondary Side High Speed SR Controller in a 8-Lead SOIC Package.
Package: 8-Pin SOIC(NB)
V[CC] max: 18.0V
Applications: LCD TV, PDP TV, Telecom SMPS, AC-DC adapter, Server SMPS
Frequency Range: 500.0kHz

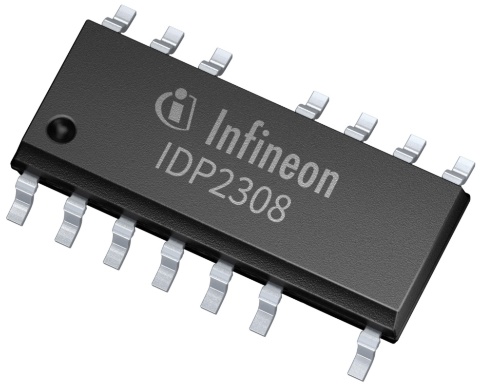

IDP2308
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路
描述: Digital multi-mode PFC and LLC combo controllers
Applications: Embedded PSU
Frequency Range(PFC) max: 300.0kHz
Frequency Range(LLC) max: 300.0kHz
Package: PG-DSO-14
Output Current Type: Mosfet Gate
Mode: DCM (PFC)
V[CC] max: 26.0V
Operating Temperature max: 125.0°C
V[CC] max: 25.0V
I[CC] max: 8.5mA
I[q]: 380.0µA
Operating Temperature max: 125.0°C
Applications: SMPS
Output Current Type: MOSFET Gate Driver
Mounting: SMT
Package: PG-DSO-8
Language: PowerEsim
Product Category: AC-DC Power Conversion
Frequency Range: 100.0kHz
Budgetary Price €/1k: 0.64
IRS27952
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路
描述: 600V Half Bridge High Voltage Controller IC for Fixed/Variable Frequency DC-DC Resonant Converters with Overcurrent Vs Threshold Fixed at 3V
Adjustable Dead Time: 200-2000
OCP Threshold: 3.0V
Output Current(Source): 300.0mA
Package: 8-lead SOIC
V[CC] max: 20.0V
Frequency max: 500.0kHz
Output Current(Sink): 900.0mA
Applications: LCD TV, PDP TV, Telecom SMPS, PC SMPS, Home audio
I[CC]: 8.7mA
f[SW]: 600.0kHz
V[CC] max: 18.0V
Softstart: yes
OCP: yes
OLP: yes
Brown Out Protection: yes
Applications: Off-Line SMPS
Output Current Type: 2
Frequency max: 250.0kHz
I[CC]: 5.8mA
I[CC] max: 13.0mA
I[Q] max: 2.0A
I[q]: 300.0µA
Operating Temperature max: 125.0°C
V[CC] max: 25.0V
Applications: SMPS
Mounting: SMT
Output Current Type: MOSFET Gate Driver
Package: PG-DSO-8
Frequency Range: 65.0kHz
Budgetary Price €/1k: 0.4

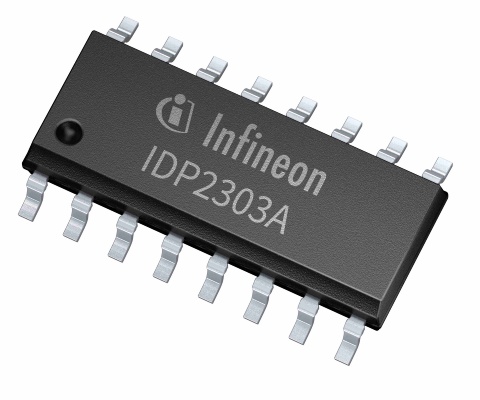

IDP2303A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路
描述: Digital multi-mode PFC and LLC combo controllers
Applications: Adapter
Operating Temperature max: 125.0°C
V[CC] max: 26.0V
Current mode control: No
Mode(PFC): DCM
Output Current Type: Mosfet Gate
Frequency Range(PFC) max: 300.0kHz
Frequency Range(LLC) max: 300.0kHz
Budgetary Price €/1k: 1.65
ICC80QSG
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 脉宽调制电路
描述: Single-stage flyback controller IC for battery charging
Applications: Charger, SMPS
Current mode control: no
I[CC]: 2.0mA
I[q]: 220.0µA
Mounting: SMT
Operating Temperature max: 150.0°C
Output Current Type: Constant current+constant voltage

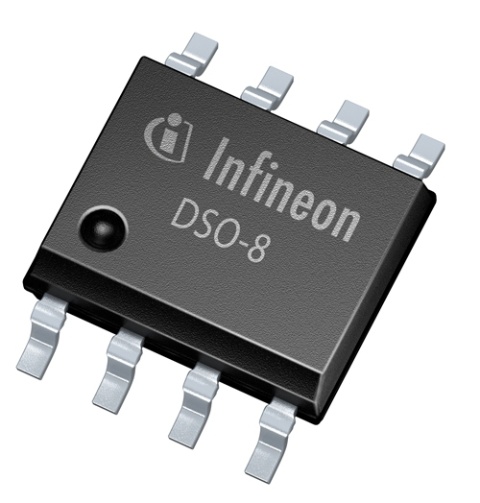

Package: PG-DSO-8
Product Category: AC-DC Power Conversion
V[CC] max: 26.0V
Switching Frequency max: 500.0kHz
Topology: QR Flyback
Type: AC-DC Controller
f[SW] max: 500.0kHz
I[CC] max: 2.5mA
V[CC] max: 25.0V
I[q]: 150.0µA
Operating Temperature max: 130.0°C
I[GATE] max: 0.39A
Function: Current Mode PWM
Frequency Range: 100 kHz (fixed)
Mounting: SMT
Package: PG-DSO-8
Switching Frequency: 100.0kHz
Topology: Flyback
Moisture Sensitivity Level: 3
Budgetary Price €/1k: 0.46
