天天芯片 - 物料搜索

TLE8386-2EL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLE8386-2EL is a low-side-sense boost controller with built in protection features.

I[q]: 7000.0µA Comments: Automotive boost converter Comments: Can be used in SEPIC- or FLYBACK-configuration as well Inhibit: yes V[Q] (multiple): adj (max 9-times of VS) Watchdog: no Protect: yes Reset: no Tolerance: 4% Mounting: SMT Operating Temperature max: 150.0°C Output Current Type: Boost Converter Regulator Type: Boost Controller Base Product: TLE8386 Product Name: TLE8386-2EL Family: OPTIREG™ Switcher Currently planned availability until at least: 2037 |Product Group|: Switching regulators Budgetary Price €/1k: 0.96 Green: RoHS compliant Green: Halogen free

TLE6389-3GV50

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLE6389-3G V50 step-down DC-DC switching controllers provide high efficiency over loads ranging from 1mA up to 2.5A.

I[q]: 130.0µA Inhibit: yes V[Q] (multiple): 5.0V Watchdog: no Protect: yes Regulator Type: Buck Controller Reset: yes Tolerance: 3% I[Q] max: 2300.0mA Mounting: SMT Operating Temperature max: 150.0°C Output Current Type: Buck Converter Base Product: TLE6389-xGVxx Budgetary Price €/1k: 1.18 |Product Group|: Switching regulators Green: RoHS compliant Green: Halogen free

TLS4125D0EPV50

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The OPTIREG™ Switcher TLS4125D0EP V50 is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

I[q]: 31.0µA Comments: 5V/2.5A Comments: Iq<31µA Comments: f=320..2,8MHz Comments: 100% duty cycle Inhibit: yes V[Q] (multiple): 5 V Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: yes Tolerance: 1.5% I[Q] max: 2500.0mA Operating Temperature max: 150.0°C Base Product: TLS412xD0xxVxx Family: OPTIREG™ Switcher Currently planned availability until at least: 2038 |Product Group|: Switching regulators Green: RoHS compliant Green: Halogen free

TLE6389-2GV50

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLE6389-2G V50 step-down DC-DC switching controllers provide high efficiency over loads ranging from 1mA up to 2.5A.

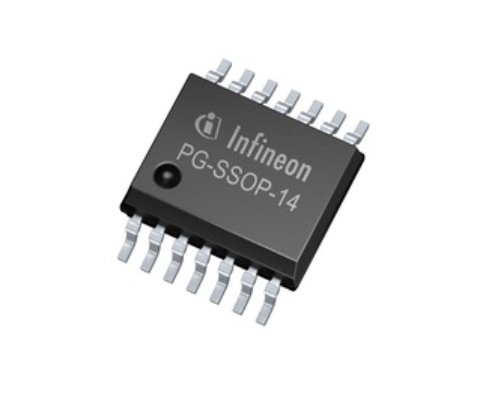

TLF50241EL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLF50241EL is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14 with exposed pad

I[q]: 45.0µA Comments: Iq<45µA Comments: f=2,2MHz Comments: 100%DC Comments: RES Inhibit: no V[Q] (multiple): 5V Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: yes Tolerance: 2% I[Q] max: 500.0mA Mounting: SMT Operating Temperature max: 150.0°C Output Current Type: Buck Converter Base Product: TLF502xx |Product Group|: Switching regulators Budgetary Price €/1k: 1.05 Green: RoHS compliant Green: Halogen free

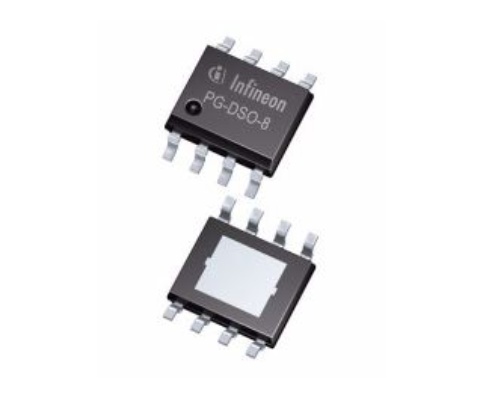

TLE8366EV

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLE8366 is a PWM step-down DC/DC converter with an integrated 1.8 A power switch, packaged in a small PG-DSO-8 with exposed pad.

I[q]: 7000.0µA Comments: Automotive Step-down converter in robust DSO-8 EP package Inhibit: yes V[Q] (multiple): adjustable Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: no Tolerance: 2(4)% I[Q] max: 1800.0mA Mounting: SMT Operating Temperature max: 150.0°C Output Current Type: Buck Converter Base Product: TLE8366EVxx Product Name: TLE8366EV Family: OPTIREG™ Switcher Currently planned availability until at least: 2037 |Product Group|: Switching regulators Budgetary Price €/1k: 1.11 Green: RoHS compliant Green: Halogen free

TLS4125D0EPV

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The OPTIREG™ Switcher TLS4125D0EPV is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

I[q]: 31.0µA Comments: adjustable voltage with max 2.5 A Comments: Iq<31µA Comments: f=320..2,8MHz Comments: 100% duty cycle Inhibit: yes V[Q] (multiple): adjustable Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: yes Tolerance: 1.5% I[Q] max: 2500.0mA Operating Temperature max: 150.0°C Base Product: TLS412xD0xxVxx |Product Group|: Switching regulators Green: RoHS compliant Green: Halogen free

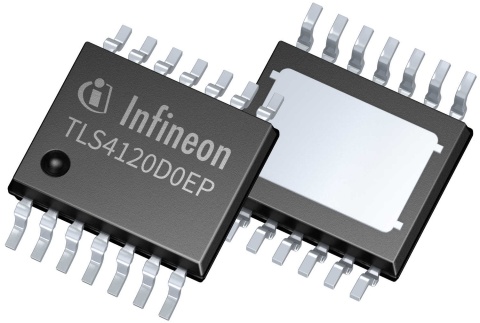

TLS4120D0EPV33

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The OPTIREG™ Switcher TLS4120D0EP V33 is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

I[q]: 31.0µA Comments: 3.3V/2A Comments: Iq<31µA Comments: f=320..2,8MHz Comments: 100% duty cycle Inhibit: yes V[Q] (multiple): 3.3 V Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: yes Tolerance: 1.5% I[Q] max: 2000.0mA Operating Temperature max: 150.0°C Base Product: TLS412xD0xxVxx Family: OPTIREG™ Switcher Currently planned availability until at least: 2038 |Product Group|: Switching regulators Green: RoHS compliant Green: Halogen free

TLS4120D0EPV50

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The OPTIREG™ Switcher TLS4120D0EP V50 is a synchronous standalone step-down DC/DC-converter especially designed for automotive applications.

I[q]: 31.0µA Comments: 5V/2A Comments: Iq<31µA Comments: f=320..2,8MHz Comments: 100% duty cycle Inhibit: yes V[Q] (multiple): 5 V Watchdog: no Protect: yes Regulator Type: Buck Converter Reset: yes Tolerance: 1.5% I[Q] max: 2000.0mA Operating Temperature max: 150.0°C Base Product: TLS412xD0xxVxx |Product Group|: Switching regulators

TLF50211EL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: The TLF50211EL is a high frequency PWM step-down DC/DC converter with an integrated PMOS power switch, packaged in a small PG-SSOP-14 with exposed pad

I[q]: 45.0µA Comments: Iq<45µA Comments: f=2,2MHz Comments: 100%DC Comments: EN Inhibit: yes V[Q] (multiple): 5V Watchdog: no Protect: yes Reset: no Tolerance: 2% I[Q] max: 500.0mA Mounting: SMT Operating Temperature max: 150.0°C Output Current Type: Buck Converter Regulator Type: Buck Converter Base Product: TLF502xx |Product Group|: Switching regulators Budgetary Price €/1k: 1.05 Green: RoHS compliant Green: Halogen free
