TLE4241GM
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The TLE 4241GM is an integrated adjustable constant current source
I[q]: 1.0µA
Operating Temperature max: 150.0°C
V[Q] max: 40.0V
I[Q] max: 70.0mA
V[S] max: 45.0V
Inhibit: Yes
Tolerance: 20%
Topology: Linear
Short Circuit Protection: Yes
PWM: Yes
Open Load Detection: Yes
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Linear
Currently planned availability until at least: 2038
TLD1313EL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: LITIX™ Basic TLD1313EL is a three channel high side driver IC with integrated output stages
V[S] max: 40.0V
Output Current: 60.0mA
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Topology: Linear
V[Q] (multiple): 40.0 V
Tolerance: 7%
Short Circuit Protection: Yes
Inhibit: Yes
PWM: Yes
Open Load Detection: Yes
Output Channels: 3.0
PWM engine: No
Short GND Detection: Yes
Feedback Output: No
Control Inputs: 1.0
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Basic
Currently planned availability until at least: 2038
TLD2314EL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: LITIX™ Basic TLD2314EL is a three channel high side driver IC with integrated output stages
V[S] max: 40.0V
Output Current: 60.0mA
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Topology: Linear
V[Q] (multiple): 40.0 V
Tolerance: 7%
Short Circuit Protection: Yes
Inhibit: No
PWM: Yes
Open Load Detection: Yes
Control Inputs: 3.0
Output Channels: 3.0
PWM engine: No
Short GND Detection: Yes
Feedback Output: No
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Basic
Currently planned availability until at least: 2038
TLD2311EL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: LITIX™ Basic TLD2311EL is a three channel high side driver IC with integrated output stages
V[S] max: 40.0V
Output Current: 60.0mA
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Topology: Linear
V[Q] (multiple): 40.0 V
Tolerance: 7%
Short Circuit Protection: Yes
Inhibit: Yes
PWM: Yes
Open Load Detection: Yes
Control Inputs: 3.0
Output Channels: 3.0
PWM engine: No
Short GND Detection: Yes
Feedback Output: No
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Basic
Currently planned availability until at least: 2038
TLD1211SJ
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The TLD1211SJ is an integrated adjustable constant current source realized in a bipolar IC technology
I[q]: 0.1µA
Operating Temperature max: 150.0°C
V[S] max: 28.0V
I[Q] max: 85.0mA
Short Circuit Protection: Yes
Inhibit: No
PWM: Yes
Open Load Detection: No
Topology: Linear
Language: SPICE
Product Category: Automotive Lighting ICs
Family: LITIX™ Linear
Currently planned availability until at least: 2038

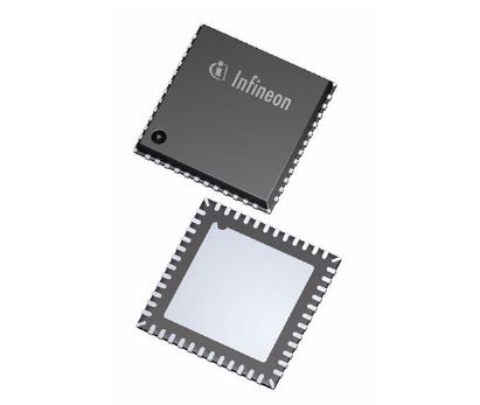

TLD5190QV
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The TLD5190QV is a synchronous MOSFET H-Bridge DC-DC controller with built in protection features
Topology: DC-DC Synchronous H-Bridge
f[SW] max: 700.0kHz
Tolerance: 3%
Short Circuit Protection: Yes
Inhibit: Yes
PWM: Yes
Open Load Detection: Yes
I[q]: 1.5µA
Operating Temperature max: 150.0°C
Classification: NA
Dimming: Analog and Digital
Type: Buck-boost
V[S] max: 40.0V
TLD2252-2EP
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The LITIX™ Basic+ TLD2252-2EP is a dual channel high-side driver IC with integrated output stages.
Control Inputs: 2.0
Output Channels: 2.0
Short Circuit Protection: Yes
PWM: Yes
Power Offloading: No
PWM engine: Yes
Open Load Detection: Yes
Short GND Detection: Yes
Single LED short detection: No
I[q]: 0.1µA
Operating Temperature max: 150.0°C
V[S] max: 40.0V
Language: SPICE
Product Category: Automotive Lighting ICs
Output Current per channel max: 60.0mA
Output Current per channel max: 120.0mA
Parallelized Output Current: 180.0mA
Tolerance: 3.3%
Topology: Linear
Family: LITIX™ Basic+
Currently planned availability until at least: 2038
TLD2331-3EP
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The LITIX™ Basic+ TLD2331-3EP is a triple channel high-side driver IC with integrated output stages
Topology: Linear
V[S] max: 40.0V
V[Q] (multiple): 40.0 V
Tolerance: 5%
Short Circuit Protection: Yes
PWM: Yes
Open Load Detection: Yes
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Control Inputs: 3.0
Output Channels: 3.0
Power Offloading: No
PWM engine: No
Short GND Detection: Yes
Single LED short detection: Yes
Language: SPICE
Product Category: Automotive Lighting ICs
Output Current per channel max: 80.0mA
Parallelized Output Current: 240.0mA
Family: LITIX™ Basic+
Currently planned availability until at least: 2038
TLD1114-1EP
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路
描述: The LITIX™ Basic+ TLD1114-1EP is a single channel high-side driver IC with integrated output stage
Topology: Linear
V[S] max: 40.0V
Tolerance: 3,33%
Short Circuit Protection: Yes
PWM: Yes
V[Q] (multiple): 40.0 V
Open Load Detection: No
I[q]: 0.1µA
Operating Temperature max: 150.0°C
Control Inputs: 1.0
Output Channels: 1.0
PWM engine: No
Short GND Detection: No
Power Offloading: Yes
Single LED short detection: No
Language: SPICE
Product Category: Automotive Lighting ICs
Output Current per channel max: 360.0mA
Parallelized Output Current: 360.0mA
Family: LITIX™ Basic+
Currently planned availability until at least: 2038
Topology: Multitopology DC-DC controller
f[SW] max: 2200.0kHz
Tolerance: 3.5%
Short Circuit Protection: Yes
PWM: Yes
Open Load Detection: Yes
I[Q]: 5000.0µA
Operating Temperature max: 150.0°C
Dimming: Analog and Digital
Type: Multitopology
V[S] max: 60.0V
Family: LITIX™ Power
Currently planned availability until at least: 2038
