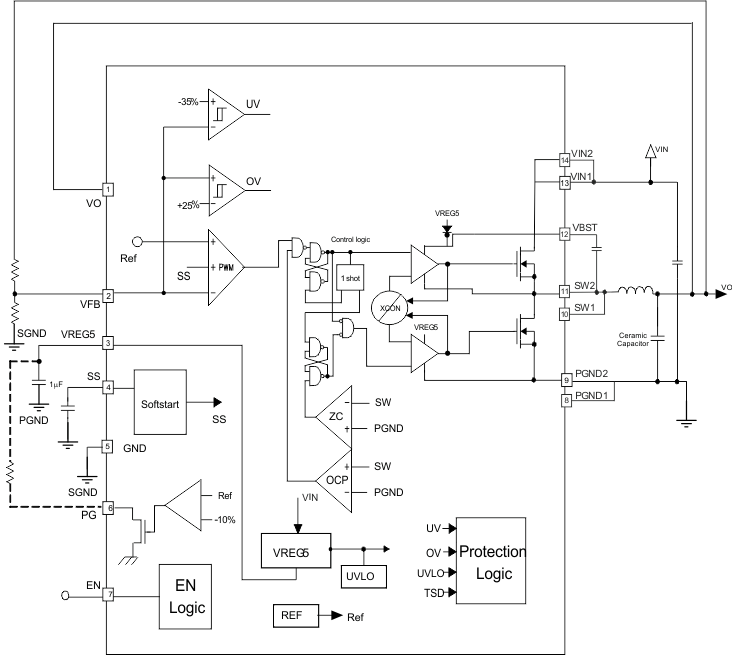

TPS54526


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Eco-Mode™ 的 4.5V 至 18V 输入、5.5A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 5.5 Vin (min) (V): 4.5 Vin (max) (V): 18 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 5.5 Iq (typ) (µA): 900 Duty cycle (max) (%): 95 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 5.5 Vin (min) (V): 4.5
Vin (max) (V): 18 Switching frequency (min) (kHz): 650 Switching frequency (max) (kHz): 650 Control mode: D-CAP2 Vout (min) (V): 0.76 Vout (max) (V): 5.5 Iq (typ) (µA): 900 Duty cycle (max) (%): 95

TPS53319


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Eco-Mode 的 1.5V 至 22V、14A 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 14 Vin (min) (V): 1.5 Vin (max) (V): 22 Switching frequency (min) (kHz): 250 Switching frequency (max) (kHz): 1000 Control mode: D-CAP Vout (min) (V): 0.6 Vout (max) (V): 5.5 Iq (typ) (µA): 320 Duty cycle (max) (%): 90 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 14 Vin (min) (V): 1.5
Vin (max) (V): 22 Switching frequency (min) (kHz): 250 Switching frequency (max) (kHz): 1000 Control mode: D-CAP Vout (min) (V): 0.6 Vout (max) (V): 5.5 Iq (typ) (µA): 320 Duty cycle (max) (%): 90

TPS54719


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 2.95V 至 6V 输入、7A 同步降压直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 140 Topology: Buck Type: Converter Iout (max) (A): 7 Vin (min) (V): 2.95 Vin (max) (V): 6 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2000 Control mode: current mode Vout (min) (V): 0.6 Vout (max) (V): 4.5 Iq (typ) (µA): 455 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 140 Topology: Buck Type: Converter Iout (max) (A): 7 Vin (min) (V): 2.95
Vin (max) (V): 6 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2000 Control mode: current mode Vout (min) (V): 0.6 Vout (max) (V): 4.5 Iq (typ) (µA): 455 Duty cycle (max) (%): 100

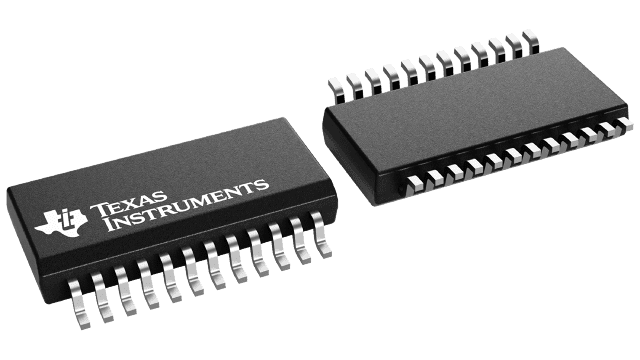

TLC59283


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有预充电 FET 的 16 通道恒流 LED 驱动器

Number of channels: 16 LED current per channel (mA): 35 Vin (min) (V): 3 Vin (max) (V): 5.5 Features: Constant current, Serial interface Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 16 LED current per channel (mA): 35 Vin (min) (V): 3 Vin (max) (V): 5.5 Features: Constant current, Serial interface Operating temperature range (°C): -40 to 85 Rating: Catalog

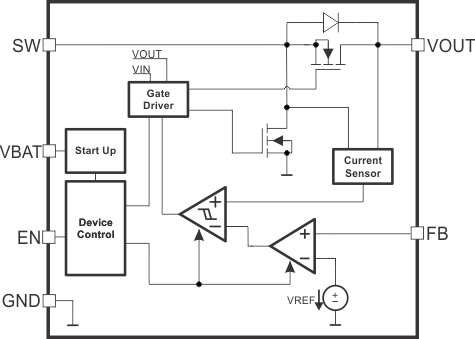

TLV61220


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 5uA Iq 的 0.7V 低输入电压升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 2000 Features: Synchronous Rectification Vout (min) (V): 1.8 Vout (max) (V): 5.5 Iq (typ) (µA): 5 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.4 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Boost Type: Converter Vin (min) (V): 0.7 Vin (max) (V): 5.5
Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 2000 Features: Synchronous Rectification Vout (min) (V): 1.8 Vout (max) (V): 5.5 Iq (typ) (µA): 5 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 0.4

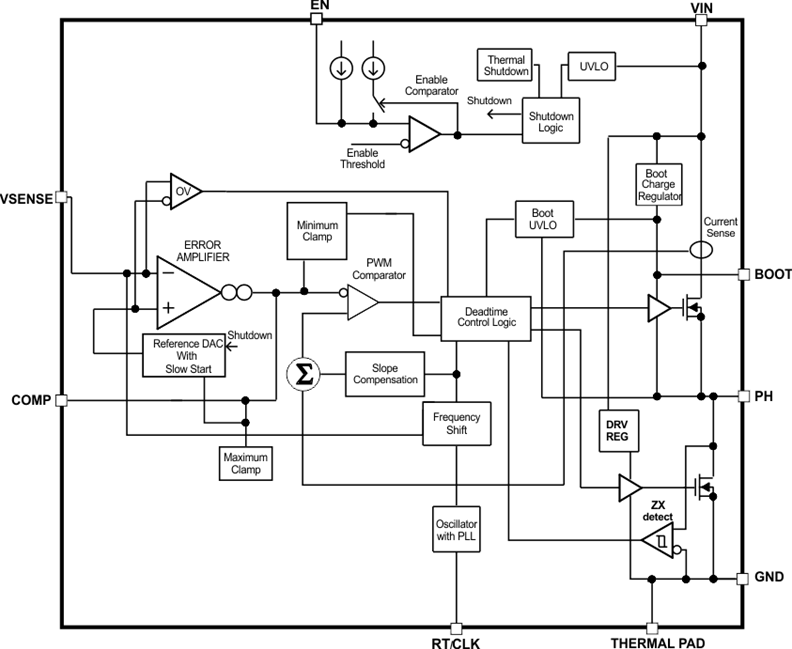

TPS54061


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有低静态电流 (IQ) 的 4.7V 至 60V 输入，200mA 同步降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 0.2 Vin (min) (V): 4.7 Vin (max) (V): 60 Switching frequency (min) (kHz): 50 Switching frequency (max) (kHz): 1100 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 58 Iq (typ) (µA): 90 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 0.2 Vin (min) (V): 4.7
Vin (max) (V): 60 Switching frequency (min) (kHz): 50 Switching frequency (max) (kHz): 1100 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 58 Iq (typ) (µA): 90 Duty cycle (max) (%): 98

TPS54140A


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Eco-Mode 的 3.5V 至 42V 输入、1.5A 降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 3.5 Vin (max) (V): 42 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 39 Iq (typ) (µA): 116 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 3.5
Vin (max) (V): 42 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 39 Iq (typ) (µA): 116 Duty cycle (max) (%): 98

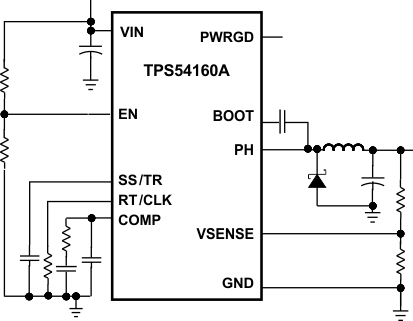

TPS54160A


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 Eco-Mode 的 3.5V 至 60V 输入、1.5A 降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 3.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 58 Iq (typ) (µA): 116 Duty cycle (max) (%): 98 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1.5 Vin (min) (V): 3.5
Vin (max) (V): 60 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2500 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 58 Iq (typ) (µA): 116 Duty cycle (max) (%): 98

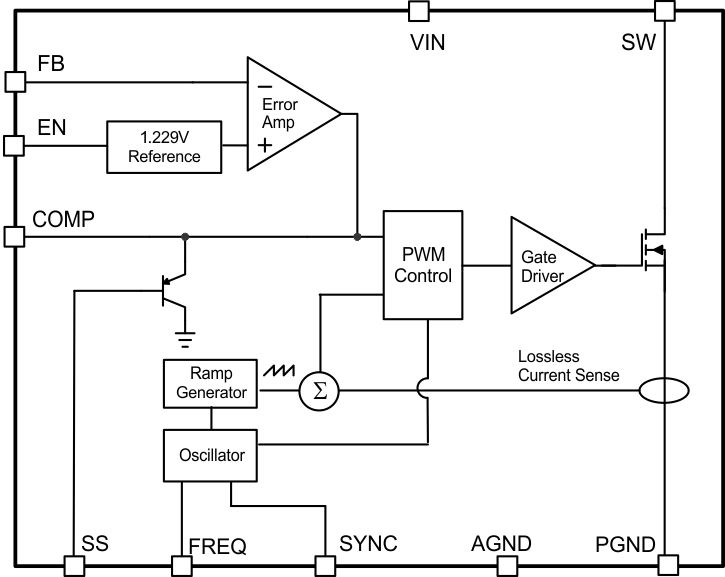

TPS55340


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 5A、40V 宽输入电压升压、反激式和 SEPIC 转换器

Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 2.9 Vin (max) (V): 32 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 1200 Vout (min) (V): 3 Vout (max) (V): 38 Iq (typ) (µA): 500 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 6.6 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 2.9 Vin (max) (V): 32 Switching frequency (min) (kHz): 100
Switching frequency (max) (kHz): 1200 Vout (min) (V): 3 Vout (max) (V): 38 Iq (typ) (µA): 500 Duty cycle (max) (%): 90 Switch current limit (typ) (A): 6.6

TPS61253


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 1.2mm x 1.3mm WCSP 封装的 3.5MHz、5V、1.5A 负载升压转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.65 Vin (max) (V): 4.85 Switching frequency (min) (kHz): 3500 Switching frequency (max) (kHz): 3500 Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 20 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 3.6 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.65 Vin (max) (V): 4.85 Switching frequency (min) (kHz): 3500
Switching frequency (max) (kHz): 3500 Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 20 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 3.6
