TPS60151


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 2x2 QFN 封装的 140mA、5V 电荷泵

Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.14 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1500 Switching frequency (max) (kHz): 1500 Features: Enable, Regulated Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 80 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.14 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1500 Switching frequency (max) (kHz): 1500
Features: Enable, Regulated Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 80

TPS61029-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 符合 AEC-Q100 标准的 0.9V 至 5.5V 输入范围、1.8A 升压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.9 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 480 Switching frequency (max) (kHz): 600 Vout (min) (V): 1.8 Vout (max) (V): 5.5 Iq (typ) (µA): 25 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 1.8 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 0.9 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 480
Switching frequency (max) (kHz): 600 Vout (min) (V): 1.8 Vout (max) (V): 5.5 Iq (typ) (µA): 25 Duty cycle (max) (%): 100 Switch current limit (typ) (A): 1.8

TPS61093


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有集成功率二极管和输入/输出隔离的低输入、20V/1.1A 升压直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.6 Vin (max) (V): 6 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1400 Features: Enable, Output discharge, Synchronous Rectification Vout (min) (V): 1.7 Vout (max) (V): 17 Iq (typ) (µA): 900 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 1.1 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 1.6 Vin (max) (V): 6
Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1400 Features: Enable, Output discharge, Synchronous Rectification Vout (min) (V): 1.7 Vout (max) (V): 17 Iq (typ) (µA): 900 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 1.1

TPS61166


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有集成功率二极管和快速突发调光模式的白光 LED 驱动器

Number of channels: 1 Vin (min) (V): 2.5 Vin (max) (V): 10 Vout (min) (V): 2.5 Vout (max) (V): 17 Type: Inductive Switching frequency (max) (kHz): 1400 Duty cycle (max) (%): 93 LED current per channel (mA): 400 Peak efficiency (%): 85 Topology: Boost Features: EasyScale 1-Wire Interface, OVP Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 1 Vin (min) (V): 2.5 Vin (max) (V): 10 Vout (min) (V): 2.5 Vout (max) (V): 17 Type: Inductive
Switching frequency (max) (kHz): 1400 Duty cycle (max) (%): 93 LED current per channel (mA): 400 Peak efficiency (%): 85 Topology: Boost Features: EasyScale 1-Wire Interface, OVP Operating temperature range (°C): -40 to 85 Rating: Catalog

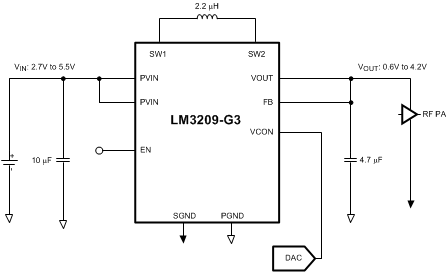

LM3209-G3


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 用于射频功率放大器的无缝转换降压/升压直流/直流稳压器

Rating: Catalog Operating temperature range (°C): -30 to 85 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 2100 Switching frequency (max) (kHz): 2700 Control mode: current mode Vout (min) (V): 0.6 Vout (max) (V): 4.2 Iq (typ) (µA): 800 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -30 to 85 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 2.7
Vin (max) (V): 5.5 Switching frequency (min) (kHz): 2100 Switching frequency (max) (kHz): 2700 Control mode: current mode Vout (min) (V): 0.6 Vout (max) (V): 4.2 Iq (typ) (µA): 800 Duty cycle (max) (%): 100

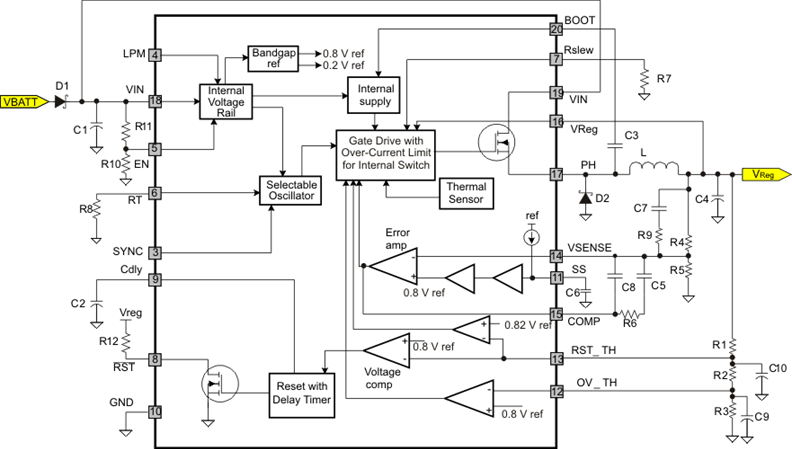

TPS54262-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有低 Iq 和电压监控功能的汽车类 3.6V 至 60V、2A 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 3.6 Vin (max) (V): 60 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 Control mode: Voltage mode Vout (min) (V): 0.9 Vout (max) (V): 18 Iq (typ) (µA): 50 Duty cycle (max) (%): 90 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 3.6
Vin (max) (V): 60 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 Control mode: Voltage mode Vout (min) (V): 0.9 Vout (max) (V): 18 Iq (typ) (µA): 50 Duty cycle (max) (%): 90

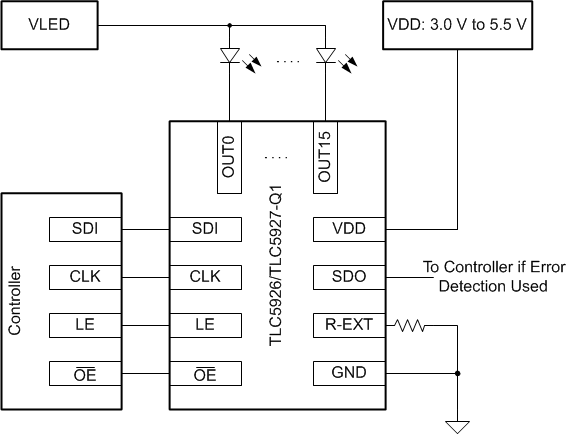

TLC5927-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 VLED 短路检测功能的汽车类 16 位恒流 LED 灌流驱动器

Number of channels: 16 Topology: Current Sink Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 3 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 17 Iout (max) (A): 1.92 Iq (typ) (mA): 11 Number of channels: 16 Topology: Current Sink Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 3 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 17 Iout (max) (A): 1.92 Iq (typ) (mA): 11

TPS5410-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 汽车类 5.5V 至 36V、500kHz 固定频率双通道 1A 降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 5.5 Vin (max) (V): 36 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 500 Features: Enable, Over Current Protection, Soft Start Fixed Control mode: Voltage mode Vout (min) (V): 1.22 Vout (max) (V): 31 Iq (typ) (µA): 3000 Duty cycle (max) (%): 89 Rating: Automotive Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1
Vin (min) (V): 5.5 Vin (max) (V): 36 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 500 Features: Enable, Over Current Protection, Soft Start Fixed Control mode: Voltage mode Vout (min) (V): 1.22 Vout (max) (V): 31 Iq (typ) (µA): 3000 Duty cycle (max) (%): 89

TPS61161-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 2mm x 2mm QFN 封装且具有数字和 PWM 亮度控制功能的汽车类白光 LED 驱动器

Number of channels: 1 Topology: Boost Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 2.7 Vin (max) (V): 18 Vout (min) (V): 2.7 Vout (max) (V): 38 Iout (max) (A): 0.02 Iq (typ) (mA): 1.5 Switching frequency (max) (kHz): 600 Features: Global dimming, Thermal shutdown Number of channels: 1 Topology: Boost Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 2.7 Vin (max) (V): 18 Vout (min) (V): 2.7 Vout (max) (V): 38
Iout (max) (A): 0.02 Iq (typ) (mA): 1.5 Switching frequency (max) (kHz): 600 Features: Global dimming, Thermal shutdown

TPS62751


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 用于 USB 供电应用的具有可编程输入电流限制的 2.25MHz 降压转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 1.3 Vin (min) (V): 2.9 Vin (max) (V): 6 Switching frequency (min) (kHz): 2000 Switching frequency (max) (kHz): 2500 Control mode: Voltage mode Vout (min) (V): 0.8 Vout (max) (V): 5.1 Iq (typ) (µA): 780 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 1.3 Vin (min) (V): 2.9
Vin (max) (V): 6 Switching frequency (min) (kHz): 2000 Switching frequency (max) (kHz): 2500 Control mode: Voltage mode Vout (min) (V): 0.8 Vout (max) (V): 5.1 Iq (typ) (µA): 780 Duty cycle (max) (%): 100
