Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 3.5 Vin (min) (V): 3.5 Vin (max) (V): 28 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Control mode: current mode Vout (min) (V): 0.8 Vout (max) (V): 25 Iq (typ) (µA): 82 Duty cycle (max) (%): 90 Rating: Catalog Operating temperature range (°C): -40 to 150 Topology: Buck Type: Converter Iout (max) (A): 3.5 Vin (min) (V): 3.5 更多

Input voltage type: DC/DC Topology: Boost, current mode Vin (min) (V): 2.5 Vin (max) (V): 5.5 Vout (max) (V): 5.5 Vout (min) (V): 2.5 Iout (max) (A): 0.5 Iq (typ) (mA): 3.5 Features: OVP Operating temperature range (°C): -30 to 85 Dimming method: Analog, PWM Number of channels: 1 Rating: Catalog Input voltage type: DC/DC Topology: Boost, current mode Vin (min) (V): 2.5 Vin (max) (V): 5.5 Vout (max) (V): 5.5 Vout (min) (V): 2.5 Iout (max) (A): 0.5 更多

Number of channels: 8 LED current per channel (mA): 120 LED configuration: Parallel, Series, Single Topology: Linear Vin (min) (V): 3 Vin (max) (V): 5.5 Iout (max) (A): 0.96 Iq (typ) (mA): 17 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): 120 LED configuration: Parallel, Series, Single Topology: Linear Vin (min) (V): 3 Vin (max) (V): 5.5 Iout (max) (A): 0.96 Iq (typ) (mA): 17 Operating temperature range (°C): -40 to 85 Rating: Catalog

Number of channels: 8 LED current per channel (mA): 120 LED configuration: Parallel, Series, Single Program memory: No Topology: Current Sink, Linear Programmable ramp control: No Vin (min) (V): 3 Vin (max) (V): 5.5 Iout (max) (A): 0.96 Features: I2C control Iq (typ) (mA): 6 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): 120 LED configuration: Parallel, Series, Single Program memory: No Topology: Current Sink, Linear Programmable ramp control: No Vin (min) (V): 3 更多

Number of channels: 8 LED current per channel (mA): 200 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No Vin (min) (V): 3.3 Vin (max) (V): 5 Iout (max) (A): 1.6 Features: GPIO interface Iq (typ) (mA): 0 Shutdown current (ISD) (typ) (µA): 0 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): 200 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No 更多

Number of channels: 8 LED current per channel (mA): 200 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No Vin (min) (V): 3.3 Vin (max) (V): 5 Iout (max) (A): 1.6 Features: GPIO interface Iq (typ) (mA): 0 Shutdown current (ISD) (typ) (µA): 0 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): 200 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No 更多

Number of channels: 8 LED current per channel (mA): 40 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No Vin (min) (V): 4.5 Vin (max) (V): 5.5 Iout (max) (A): 0.32 Features: GPIO interface Iq (typ) (mA): 0 Shutdown current (ISD) (typ) (µA): 0 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): 40 LED configuration: Parallel, Series Program memory: No Topology: Current Sink Programmable ramp control: No 更多

Number of channels: 8 LED current per channel (mA): -500 LED configuration: Parallel, Series Program memory: No Topology: Linear Programmable ramp control: No Vin (min) (V): 4.5 Vin (max) (V): 13.2 Iout (max) (A): -4 Features: GPIO interface Iq (typ) (mA): 4.6 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of channels: 8 LED current per channel (mA): -500 LED configuration: Parallel, Series Program memory: No Topology: Linear Programmable ramp control: No Vin (min) (V): 4.5 更多

Number of channels: 16 Topology: Current Sink Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 3 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 17 Iout (max) (A): 0.96 Iq (typ) (mA): 0.9 Features: LED Open Detection, Thermal Error Flag Number of channels: 16 Topology: Current Sink Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 3 Vin (max) (V): 5.5 Vout (min) (V): 0 Vout (max) (V): 17 Iout (max) (A): 0.96 更多

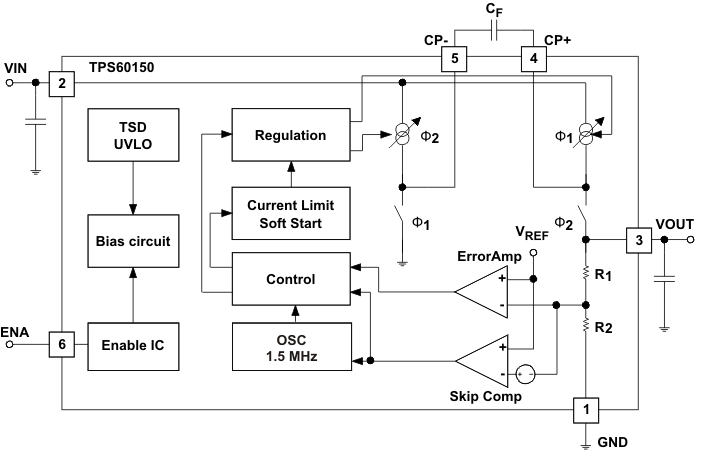

Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.14 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1500 Switching frequency (max) (kHz): 1500 Features: Enable, Regulated Vout (min) (V): 5 Vout (max) (V): 5 Iq (typ) (µA): 80 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.14 Vin (min) (V): 2.7 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1500 Switching frequency (max) (kHz): 1500 更多
