TPS62007


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用 MSOP-10 封装的 3.3V 输出 600mA 95% 效率步降转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 2 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1000 Control mode: current mode Vout (min) (V): 3.3 Vout (max) (V): 3.3 Iq (typ) (µA): 50 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 85 Topology: Buck Type: Converter Iout (max) (A): 0.6 Vin (min) (V): 2
Vin (max) (V): 5.5 Switching frequency (min) (kHz): 500 Switching frequency (max) (kHz): 1000 Control mode: current mode Vout (min) (V): 3.3 Vout (max) (V): 3.3 Iq (typ) (µA): 50 Duty cycle (max) (%): 100

LM2590HV


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有多种特性的 SIMPLE SWITCHER 电源转换器 150 KHz 1A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1
Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

LM2591HV


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: SIMPLE SWITCHER 电源转换器 150 kHz 1A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 1000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1
Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 1000 Duty cycle (max) (%): 100

LM2592HV


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: SIMPLE SWITCHER 电源转换器 150 KHz 2A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 10000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2
Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 57 Iq (typ) (µA): 10000 Duty cycle (max) (%): 100

LM2700


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 600kHz/1.25MHz、2.5A、升压 PWM 直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 2.2 Vin (max) (V): 12 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 1250 Features: Enable, Nonsynchronous rectification Vout (min) (V): 1.26 Vout (max) (V): 17.5 Iq (typ) (µA): 1300 Duty cycle (max) (%): 85 Switch current limit (typ) (A): 3.6 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 2.2 Vin (max) (V): 12
Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 1250 Features: Enable, Nonsynchronous rectification Vout (min) (V): 1.26 Vout (max) (V): 17.5 Iq (typ) (µA): 1300 Duty cycle (max) (%): 85 Switch current limit (typ) (A): 3.6

LM2593HV


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有多种特性的 SIMPLE SWITCHER 电源转换器 150 KHz 2A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 1.2 Vout (max) (V): 57 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 2
Vin (min) (V): 4.5 Vin (max) (V): 60 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 1.2 Vout (max) (V): 57 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

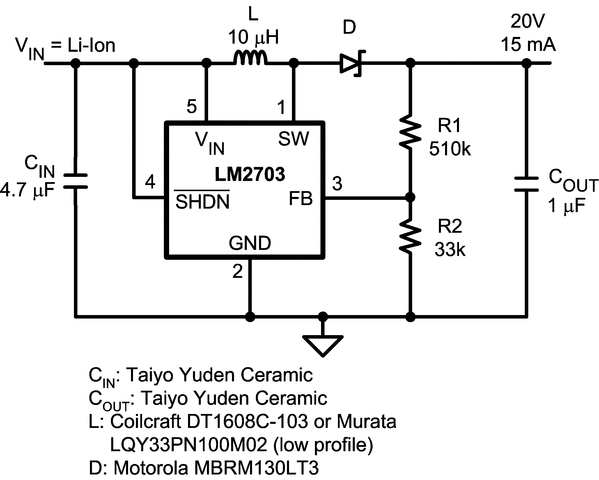

LM2703


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有 350mA 峰值电流限制的微功耗升压 DC/DC 转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.2 Vin (max) (V): 7 Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 2500 Features: Enable, Nonsynchronous rectification Vout (min) (V): 1.24 Vout (max) (V): 21 Iq (typ) (µA): 235 Duty cycle (max) (%): 76 Switch current limit (typ) (A): 0.35 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost Type: Converter Vin (min) (V): 2.2 Vin (max) (V): 7
Switching frequency (min) (kHz): 600 Switching frequency (max) (kHz): 2500 Features: Enable, Nonsynchronous rectification Vout (min) (V): 1.24 Vout (max) (V): 21 Iq (typ) (µA): 235 Duty cycle (max) (%): 76 Switch current limit (typ) (A): 0.35

REG711-25


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 50mA 开关电容器直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Features: Enable, Regulated Vout (min) (V): 2.5 Vout (max) (V): 2.5 Iq (typ) (µA): 60 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000
Features: Enable, Regulated Vout (min) (V): 2.5 Vout (max) (V): 2.5 Iq (typ) (µA): 60

REG711-3


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 50mA 开关电容器直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Features: Enable, Regulated Vout (min) (V): 3 Vout (max) (V): 3 Iq (typ) (µA): 60 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000
Features: Enable, Regulated Vout (min) (V): 3 Vout (max) (V): 3 Iq (typ) (µA): 60

REG711-33


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 50mA 开关电容器直流/直流转换器

Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000 Features: Enable, Regulated Vout (min) (V): 3.3 Vout (max) (V): 3.3 Iq (typ) (µA): 60 Rating: Catalog Operating temperature range (°C): -40 to 85 Type: Charge pump Iout (max) (A): 0.05 Vin (min) (V): 1.8 Vin (max) (V): 5.5 Switching frequency (min) (kHz): 1000 Switching frequency (max) (kHz): 1000
Features: Enable, Regulated Vout (min) (V): 3.3 Vout (max) (V): 3.3 Iq (typ) (µA): 60
