LM2595


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: SIMPLE SWITCHER 电源转换器 150kHz 1A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1 Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 1
Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

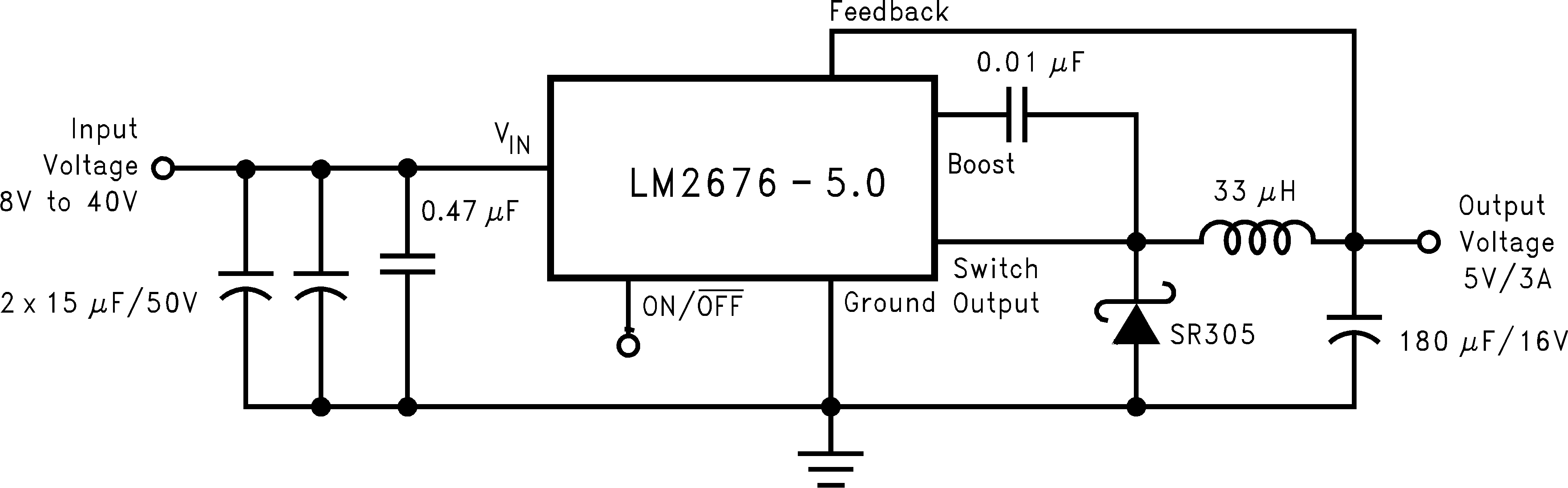

LM2676


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 元件数量较少的 SIMPLE SWITCHER® 8V 至 40V、3A 降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 8 Vin (max) (V): 40 Switching frequency (min) (kHz): 260 Switching frequency (max) (kHz): 260 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 1.23 Vout (max) (V): 37 Iq (typ) (µA): 4200 Duty cycle (max) (%): 91 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3
Vin (min) (V): 8 Vin (max) (V): 40 Switching frequency (min) (kHz): 260 Switching frequency (max) (kHz): 260 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 1.23 Vout (max) (V): 37 Iq (typ) (µA): 4200 Duty cycle (max) (%): 91

LM2596


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 元件数量较少的 SIMPLE SWITCHER® 4.5V 至 40V、3A 降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3
Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

LM2599


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有多种特性的 SIMPLE SWITCHER 电源转换器 150kHz 3A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 3
Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

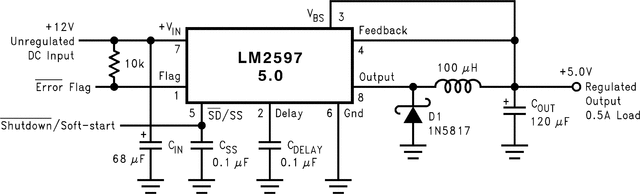

LM2597


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: SIMPLE SWITCHER 电源转换器 150kHz 0.5A 降压电压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.5 Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.5
Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Over Current Protection, Power good Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

LM2594


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 元件数量较少的 SIMPLE SWITCHER® 40V、500mA 降压稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.5 Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Buck Type: Converter Iout (max) (A): 0.5
Vin (min) (V): 4.5 Vin (max) (V): 40 Switching frequency (min) (kHz): 110 Switching frequency (max) (kHz): 173 Features: Enable, Over Current Protection Control mode: Voltage mode Vout (min) (V): 3.3 Vout (max) (V): 37 Iq (typ) (µA): 5000 Duty cycle (max) (%): 100

LM2588


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有频率同步功能的 4V 至 40V、5A 升压宽输入电压反激式稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 75 Switching frequency (max) (kHz): 125 Features: Enable, Frequency synchronization, Nonsynchronous rectification Vout (min) (V): 1.23 Vout (max) (V): 60 Iq (typ) (µA): 11000 Duty cycle (max) (%): 98 Switch current limit (typ) (A): 6.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 4 Vin (max) (V): 40
Switching frequency (min) (kHz): 75 Switching frequency (max) (kHz): 125 Features: Enable, Frequency synchronization, Nonsynchronous rectification Vout (min) (V): 1.23 Vout (max) (V): 60 Iq (typ) (µA): 11000 Duty cycle (max) (%): 98 Switch current limit (typ) (A): 6.5

LM2587


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 4V 至 40V 宽输入电压、5A 降压反激稳压器

Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 4 Vin (max) (V): 40 Switching frequency (min) (kHz): 85 Switching frequency (max) (kHz): 115 Features: Nonsynchronous rectification, UVLO Fixed Vout (min) (V): 1.23 Vout (max) (V): 60 Iq (typ) (µA): 11000 Duty cycle (max) (%): 98 Switch current limit (typ) (A): 6.5 Rating: Catalog Operating temperature range (°C): -40 to 125 Topology: Boost, Flyback, Forward, SEPIC Type: Converter Vin (min) (V): 4 Vin (max) (V): 40
Switching frequency (min) (kHz): 85 Switching frequency (max) (kHz): 115 Features: Nonsynchronous rectification, UVLO Fixed Vout (min) (V): 1.23 Vout (max) (V): 60 Iq (typ) (µA): 11000 Duty cycle (max) (%): 98 Switch current limit (typ) (A): 6.5

TPIC6B259


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 150mA/通道 8 位可寻址锁存器

Number of channels: 8 Topology: Open drain Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (max) (V): 50 Features: Enable/Shutdown, Thermal shutdown Number of channels: 8 Topology: Open drain Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (max) (V): 50 Features: Enable/Shutdown, Thermal shutdown

TPIC6B273


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 八通道、150mA/通道 D 类锁存器

Number of channels: 8 Topology: Open drain Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (max) (V): 50 Features: Enable/Shutdown, Thermal shutdown Number of channels: 8 Topology: Open drain Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 5.5 Vout (max) (V): 50 Features: Enable/Shutdown, Thermal shutdown
