LM5157


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用双随机展频技术的 6A/4A、50V、2.2MHz 宽输入电压升压、反激式和 SEPIC 转换器

Rating: Catalog Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Boost, Flyback, SEPIC Type: Converter Vin (min) (V): 1.5 Vin (max) (V): 45 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2200 Control mode: current mode Vout (min) (V): 1.5 Vout (max) (V): 48 Iq (typ) (µA): 670 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 7.5 Rating: Catalog Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Boost, Flyback, SEPIC Type: Converter
Vin (min) (V): 1.5 Vin (max) (V): 45 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2200 Control mode: current mode Vout (min) (V): 1.5 Vout (max) (V): 48 Iq (typ) (µA): 670 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 7.5

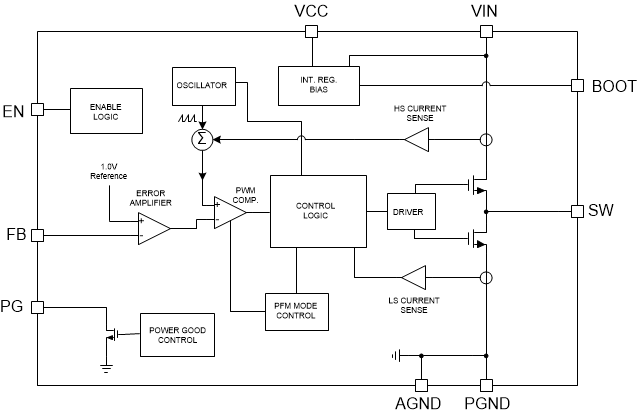

LMR33620AP-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 3.8V 至 36V、2A 同步降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 2 Vin (min) (V): 3.8 Vin (max) (V): 36 Switching frequency (min) (kHz): 400 Switching frequency (max) (kHz): 2100 EMI features: Low parasitic Hotrod packaging Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34 Iq (typ) (µA): 24 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 2 Vin (min) (V): 3.8 Vin (max) (V): 36 Switching frequency (min) (kHz): 400 Switching frequency (max) (kHz): 2100 EMI features: Low parasitic Hotrod packaging Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34 Iq (typ) (µA): 24 Duty cycle (max) (%): 98

LMR33630AP-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 汽车 3.8V 至 36V、3A 同步降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 3 Vin (min) (V): 3.8 Vin (max) (V): 36 Switching frequency (min) (kHz): 400 Switching frequency (max) (kHz): 2100 EMI features: Low parasitic Hotrod packaging Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34 Iq (typ) (µA): 24 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 3 Vin (min) (V): 3.8 Vin (max) (V): 36 Switching frequency (min) (kHz): 400 Switching frequency (max) (kHz): 2100 EMI features: Low parasitic Hotrod packaging Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34 Iq (typ) (µA): 24 Duty cycle (max) (%): 98

TPS92380


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有三通道 120mA 输出的 45V LED 背光驱动器

Number of channels: 3 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 6 Vout (max) (V): 45 Type: Inductive Switching frequency (max) (kHz): 2200 LED current per channel (mA): 120 Peak efficiency (%): 90 Topology: Boost, Current Sink Operating temperature range (°C): -40 to 125 Rating: Catalog Number of channels: 3 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 6 Vout (max) (V): 45 Type: Inductive Switching frequency (max) (kHz): 2200 LED current per channel (mA): 120
Peak efficiency (%): 90 Topology: Boost, Current Sink Operating temperature range (°C): -40 to 125 Rating: Catalog

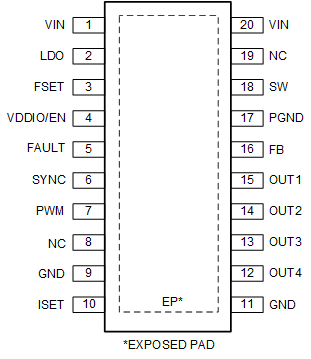

TPS92381


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有四通道 120mA 输出的 45V LED 背光驱动器

Number of channels: 4 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 6 Vout (max) (V): 45 Type: Inductive Switching frequency (max) (kHz): 2200 LED current per channel (mA): 120 Peak efficiency (%): 90 Topology: Boost, Current Sink Operating temperature range (°C): -40 to 125 Rating: Catalog Number of channels: 4 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 6 Vout (max) (V): 45 Type: Inductive Switching frequency (max) (kHz): 2200 LED current per channel (mA): 120
Peak efficiency (%): 90 Topology: Boost, Current Sink Operating temperature range (°C): -40 to 125 Rating: Catalog

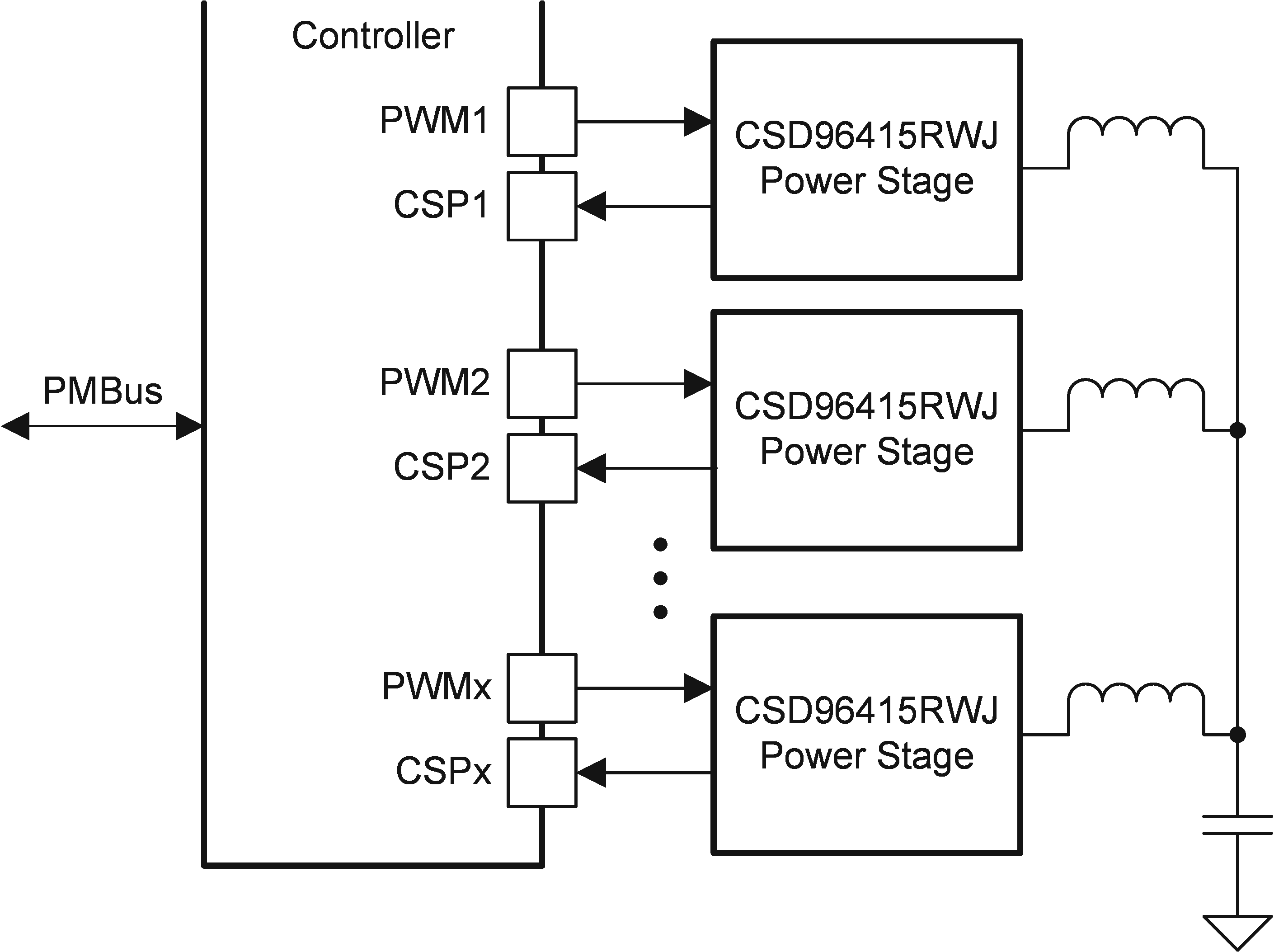

CSD96415


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 80A 峰值连续电流同步降压 NexFET™ 功率级

VDS (V): 25 Ploss current (A): 30 Rating: Catalog Operating temperature range (°C): -40 to 125 VDS (V): 25 Ploss current (A): 30 Rating: Catalog Operating temperature range (°C): -40 to 125

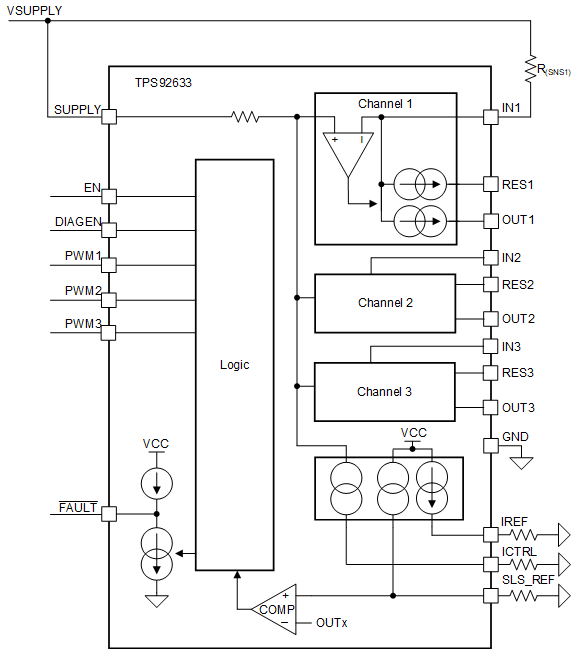

TPS92633


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有热共享和非板载分级功能的三通道高侧 LED 驱动器

Input voltage type: Linear Topology: Current Source Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (max) (V): 40 Vout (min) (V): 0 Iout (max) (A): 0.45 Iq (typ) (mA): 1.5 Operating temperature range (°C): -55 to 125 Dimming method: PWM Number of channels: 0 Rating: Catalog Input voltage type: Linear Topology: Current Source Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (max) (V): 40 Vout (min) (V): 0 Iout (max) (A): 0.45 Iq (typ) (mA): 1.5
Operating temperature range (°C): -55 to 125 Dimming method: PWM Number of channels: 0 Rating: Catalog

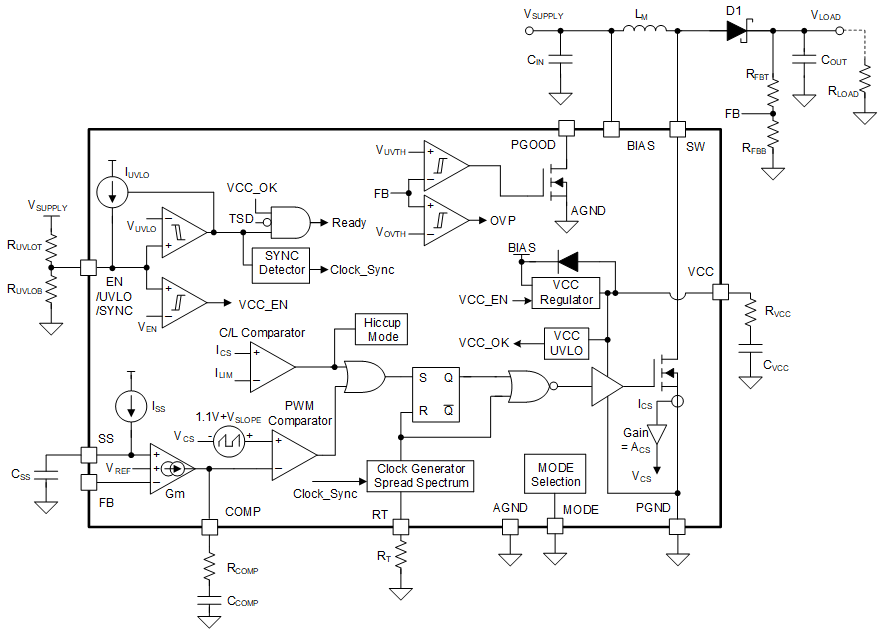

LM5157-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 采用双随机展频技术的 6A、50V、2.2MHz 宽输入电压升压、反激式和 SEPIC 转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Boost, Flyback, SEPIC Type: Converter Vin (min) (V): 1.5 Vin (max) (V): 45 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2200 Control mode: current mode Vout (min) (V): 2 Vout (max) (V): 48 Iq (typ) (µA): 670 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 7.5 Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Boost, Flyback, SEPIC Type: Converter
Vin (min) (V): 1.5 Vin (max) (V): 45 Switching frequency (min) (kHz): 100 Switching frequency (max) (kHz): 2200 Control mode: current mode Vout (min) (V): 2 Vout (max) (V): 48 Iq (typ) (µA): 670 Duty cycle (max) (%): 93 Switch current limit (typ) (A): 7.5

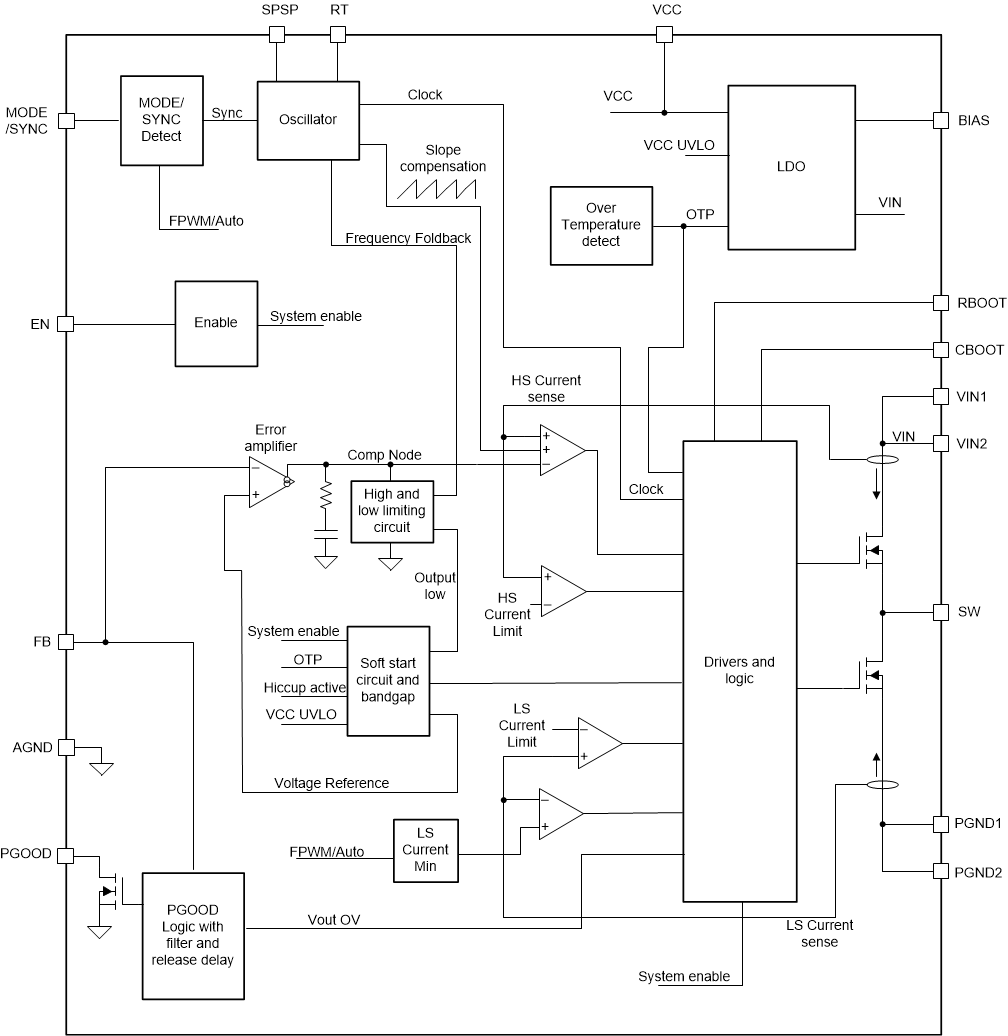

LM62460-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 针对功率密度进行了优化且具有低 EMI 的 6A 汽车类降压转换器

Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck Type: Converter Iout (max) (A): 6 Vin (min) (V): 3 Vin (max) (V): 36 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34.2 Iq (typ) (µA): 5 Duty cycle (max) (%): 98 Rating: Automotive Operating temperature range (°C): -40 to 150 TI functional safety category: Functional Safety-Capable Topology: Buck
Type: Converter Iout (max) (A): 6 Vin (min) (V): 3 Vin (max) (V): 36 Switching frequency (min) (kHz): 200 Switching frequency (max) (kHz): 2200 EMI features: Spread Spectrum Control mode: current mode Vout (min) (V): 1 Vout (max) (V): 34.2 Iq (typ) (µA): 5 Duty cycle (max) (%): 98

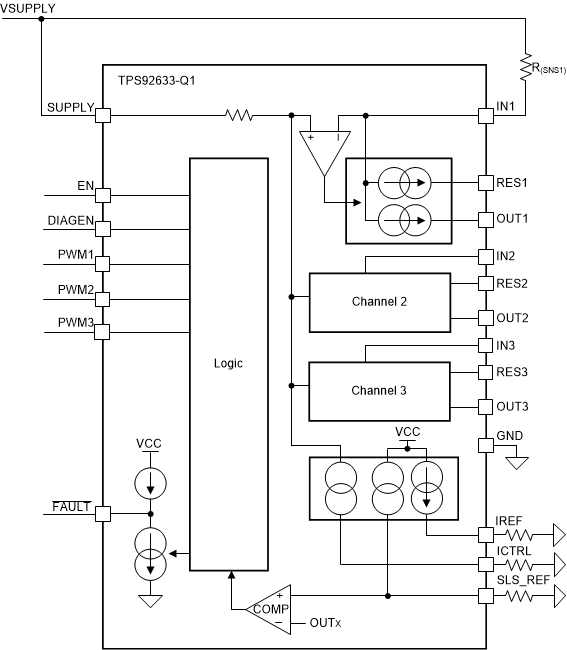

TPS92633-Q1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 开关电源电路

描述: 具有热共享和非板载分级功能的汽车类三通道高侧 LED 驱动器

Number of channels: 3 Topology: Current Source Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 0 Vout (max) (V): 40 Iout (max) (A): 0.45 Iq (typ) (mA): 1.5 Number of channels: 3 Topology: Current Source Rating: Automotive Operating temperature range (°C): -40 to 125 Vin (min) (V): 4.5 Vin (max) (V): 40 Vout (min) (V): 0 Vout (max) (V): 40 Iout (max) (A): 0.45 Iq (typ) (mA): 1.5
