CDCE706

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 300MHz、LVCMOS、可编程 3-PLL 时钟合成器/倍频器/分频器

Function: Clock generator, Spread-spectrum clock generator Number of outputs: 6 Output frequency (max) (MHz): 300 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: Differential, LVCMOS, XTAL Output type: LVCMOS Operating temperature range (°C): -40 to 85 Rating: Catalog Function: Clock generator, Spread-spectrum clock generator Number of outputs: 6 Output frequency (max) (MHz): 300 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: Differential, LVCMOS, XTAL Output type: LVCMOS Operating temperature range (°C): -40 to 85 Rating: Catalog

CDCF5801A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 具有低至 10ps 以下可编程延迟线路的低抖动、基于 PLL 的倍频器和分频器

Function: Clock generator Number of outputs: 1 Output frequency (max) (MHz): 280 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: HSTL, LVPECL, LVTTL Output type: LVDS, LVPECL, LVTTL Operating temperature range (°C): -40 to 85 Features: 3.3-V VCC/VDD, Pin programmable Rating: Catalog Function: Clock generator Number of outputs: 1 Output frequency (max) (MHz): 280 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: HSTL, LVPECL, LVTTL Output type: LVDS, LVPECL, LVTTL Operating temperature range (°C): -40 to 85 Features: 3.3-V VCC/VDD, Pin programmable Rating: Catalog

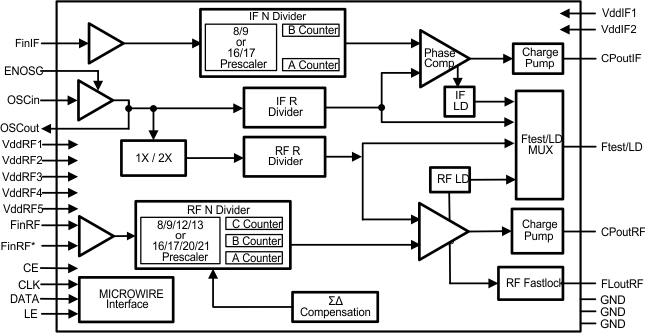

LMX2485E

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 用于射频个人通信的 50MHz 至 3GHz Δ-Σ 低功耗双通道 PLL

Integrated VCO: No Output frequency (min) (MHz): 50 Output frequency (max) (MHz): 3000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 3.3 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 50 Output frequency (max) (MHz): 3000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 3.3 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent

CDC5801A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 具有可编程延迟和相位对齐的低抖动时钟倍频器和分频器

Function: Clock generator, Spread-spectrum clock generator Number of outputs: 1 Output frequency (max) (MHz): 62.5 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: LVCMOS Output type: LVDS, LVPECL, LVTTL Operating temperature range (°C): -40 to 85 Features: Pin programmable, Spread-spectrum clocking (SSC) Rating: Catalog Function: Clock generator, Spread-spectrum clock generator Number of outputs: 1 Output frequency (max) (MHz): 62.5 Core supply voltage (V): 3.3 Output supply voltage (V): 3.3 Input type: LVCMOS Output type: LVDS, LVPECL, LVTTL Operating temperature range (°C): -40 to 85 Features: Pin programmable, Spread-spectrum clocking (SSC) Rating: Catalog

LMX2487

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 具有 3.0GHz 整数 PLL 的 1 至 6GHz Δ-Σ 低功耗双路 PLLatinum 频率合成器

Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 6000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 5.7 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 6000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 5.7 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent

LMX2485

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 用于射频个人通信的 500MHz 至 3GHz Δ-Σ 低功耗双路 PLL

Integrated VCO: No Output frequency (min) (MHz): 500 Output frequency (max) (MHz): 3000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 3.3 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 500 Output frequency (max) (MHz): 3000 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 3.3 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent

LMX2486

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 用于射频个人通信的 1GHz 至 4.5GHz Δ-Σ 低功耗双路 PLL

Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 4500 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 5.7 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 4500 Normalized PLL phase noise (dBc/Hz): -210 Current consumption (mA): 5.7 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent

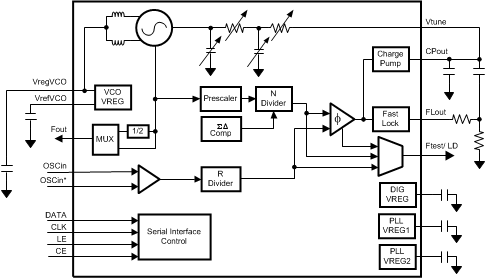

LMX2531

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 具有集成 VCO 的高性能频率合成器系统

Integrated VCO: Yes Output frequency (min) (MHz): 553 Output frequency (max) (MHz): 3132 Normalized PLL phase noise (dBc/Hz): -212 Current consumption (mA): 34 Features: Integrated VCO 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): 300 Integrated VCO: Yes Output frequency (min) (MHz): 553 Output frequency (max) (MHz): 3132 Normalized PLL phase noise (dBc/Hz): -212 Current consumption (mA): 34 Features: Integrated VCO 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -104 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): 300

LMX2434

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 用于射频个人通信的 5.0GHz/2.5GHz PLLatinum 低功耗双路频率合成器

Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 5000 Normalized PLL phase noise (dBc/Hz): -218 Current consumption (mA): 4.6 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -100 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 1000 Output frequency (max) (MHz): 5000 Normalized PLL phase noise (dBc/Hz): -218 Current consumption (mA): 4.6 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -100 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent

LMX2433

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 非线性电路 / 频率合成器

描述: 用于射频个人通信的 3.6GHz/1.7GHz PLLatinum 双路高频合成器

Integrated VCO: No Output frequency (min) (MHz): 500 Output frequency (max) (MHz): 3600 Normalized PLL phase noise (dBc/Hz): -218 Current consumption (mA): 3.2 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -100 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent Integrated VCO: No Output frequency (min) (MHz): 500 Output frequency (max) (MHz): 3600 Normalized PLL phase noise (dBc/Hz): -218 Current consumption (mA): 3.2 1/f noise (10-kHz offset at 1-GHz carrier) (dBc/Hz): -100 Rating: Catalog Operating temperature range (°C): -40 to 85 Lock time (µs) (typ) (s): Loop BW dependent
