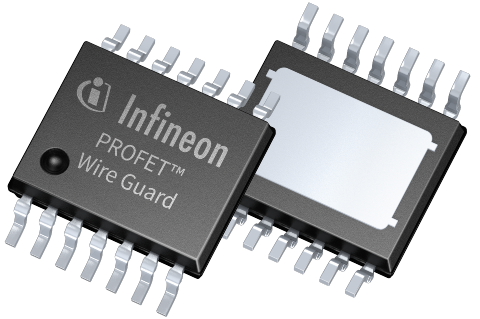

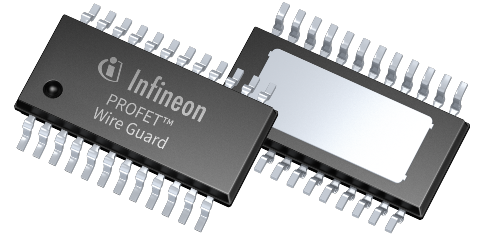

BTG7003A-1EPW
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: 12 V | 3.6 mΩ | 15.7 A | integrated I²t wire protection| automatic Idle mode | 1 channel smart high-side power switch | analog current sense, sequential diagnosis | PG-TSDSO-14 | ISO 26262-compliant | PROFET™ Wire Guard 12V
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 6.6mΩ
Diagnostics: SENSE
Operating Temperature max: 150.0°C
Mounting: SMT
Halogen-free: yes
Adjustable overcurrent protection max: 137.5A
Load Current: 15.7A
Certifications: ISO 26262-compliant
Classification: ISO 26262-compliant
Nominal Load Current per channel: 15.7A
Recommended Operating Voltage max: 28.0V
R[DS (on)](@ Tj = 25°C): 3.6mΩ
Qualification: Automotive
Family: PROFET™ Wire Guard 12V
Currently planned availability until at least: 2038
BTG7016A-1EPW
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: 12 V | 18 mΩ | 6.8 A | integrated I²t wire protection| automatic Idle mode | 1 channel smart high-side power switch | analog current sense, sequential diagnosis | PG-TSDSO-14 | ISO 26262-compliant | PROFET™ Wire Guard 12V
Channels: 1.0
Diagnostics: SENSE
R[DS (on)](@ Tj = 150°C) max: 33.0mΩ
Mounting: SMT
Operating Temperature max: 150.0°C
Halogen-free: yes
I²t wire protection range max: 7.5A
Adjustable overcurrent protection max: 43.0A
Load Current: 6.8A
Certifications: ISO 26262-compliant
Recommended Operating Voltage max: 28.0V
Nominal Load Current per channel: 6.8A
Classification: ISO 26262-compliant
R[DS (on)](@ Tj = 25°C): 18.0mΩ
Qualification: Automotive
Family: PROFET™ Wire Guard 12V
Currently planned availability until at least: 2038

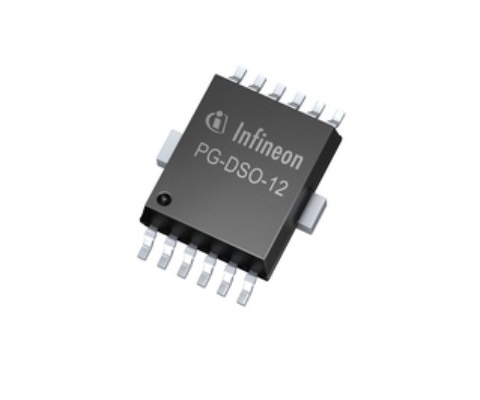

BTS5210L
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic function
P[tot] max: 3.05W
Operating Temperature max: 150.0°C
IL(Short Circuit Current): 9.0A
Recommended Operating Voltage max: 40.0V
t[on](Turn ON time) max: 250.0µs
t[off](Turn OFF time) max: 270.0µs
Current Limit min: 5.0A
Channels: 2.0
Diagnostics: Digital
Mounting: SMT
Nominal Load Current per channel(All channels active): 2.4A
R[DS (on)](@ Tj = 25°C): 110.0mΩ
Load Current: 2.4A
Qualification: Automotive
Family: Classic PROFET™ 24V
Currently planned availability until at least: 2033

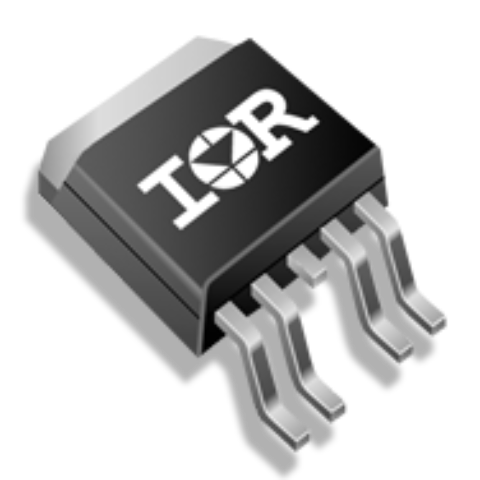

AUIPS7221R
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: High frequency Protected High Side Switch with integrated bootstrap and charge pump in D-Pak-5 Leads package
Channels: 1.0
Mounting: SMD
R[DS (on)](@ Tj = 150°C) max: 70.0mΩ
R[DS (on)](@ Tj = 25°C): 30.0mΩ
Recommended Operating Voltage max: 60.0V
IL(Short Circuit Current): 30.0A
Diagnostics: Digital
Operating Temperature max: 150.0°C
t[on](Turn ON time) max: 1.2µs
t[off](Turn OFF time) max: 1.3µs
Qualification: Automotive
Family: Classic PROFET™
Classification: n.a
Currently planned availability until at least: n.a
Undervoltage Recovery Delay: n.a

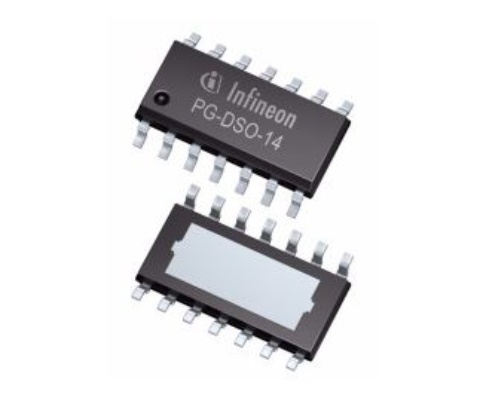

BTS5090-2EKA
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: BTS5090-2EKA, 90 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis
Recommended Operating Voltage max: 28.0V
IL(Short Circuit Current): 20.0A
P[tot] max: 1.9W
Operating Temperature max: 150.0°C
t[on](Turn ON time) max: 230.0µs
t[off](Turn OFF time) max: 230.0µs
Current Limit min: 22.0A
Channels: 2.0
Diagnostics: Sense
Mounting: SMT
Nominal Load Current per channel(All channels active): 2.5A
R[DS (on)](@ Tj = 150°C) max: 180.0mΩ
R[DS (on)](@ Tj = 25°C): 90.0mΩ
Load Current: 2.5A
Qualification: Automotive
Currently planned availability until at least: 2034
Family: PROFET™ + 12V

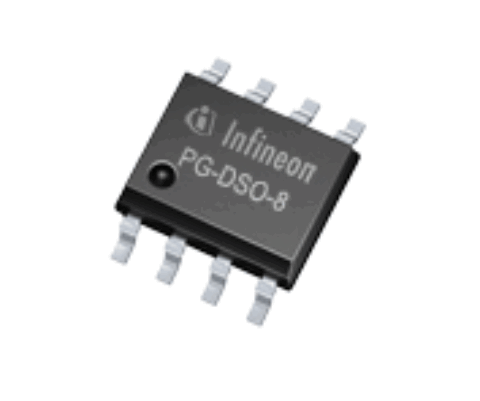

BSP742RI
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
P[tot] max: 1.5W
Operating Temperature max: 150.0°C
IL(Short Circuit Current): 1.0A
Recommended Operating Voltage max: 34.0V
t[on](Turn ON time) max: 140.0µs
t[off](Turn OFF time) max: 170.0µs
Channels: 1.0
Diagnostics: Digital
Mounting: SMT
R[DS (on)](@ Tj = 25°C): 250.0mΩ
R[DS (on)](@ Tj = 150°C) max: 700.0mΩ
Nominal Load Current per channel(All channels active): 0.4A
Load Current: 0.4A
Qualification: Automotive
Family: Classic PROFET™ 12V
Currently planned availability until at least: 2033
BTG70013A-1ESW
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: 12 V | 1.5 mΩ | 26.6 A | integrated I²t wire protection| automatic Idle mode | 1 channel smart high-side power switch | analog current sense, sequential diagnosis | PG-TSDSO-14 | ISO 26262-compliant | PROFET™ Wire Guard 12V
Classification: ISO 26262-compliant
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 2.8mΩ
Diagnostics: SENSE
Operating Temperature max: 150.0°C
Mounting: SMT
Halogen-free: yes
Adjustable overcurrent protection max: 211.0A
I²t wire protection range max: 29.5A
Load Current: 26.6A
Certifications: ISO 26262-compliant
Recommended Operating Voltage max: 28.0V
Nominal Load Current per channel: 26.6A
R[DS (on)](@ Tj = 25°C): 1.5mΩ
Qualification: Automotive
Family: PROFET™ Wire Guard 12V
Currently planned availability until at least: 2038
Product Lifecycle: 最后订购
Package: CHIPS OR DIE
RF Primary Function: PA Bias Controller
Vs+ (min): 5V
Vs+ (max): 16.5V
Vs Drain (min): 5V
Vs Drain (max): 16.5V
Idrain (min): 0.05A
Idrain (max): 1.6A
Igate Drive (min): -4mA
Igate Drive (max): 4mA
Vgate (min): -2.46V
Vgate (max): 2.04V
Over/Under Idrain Alarm: Yes
Low Vsupply Alarm: No
Export Classification: EAR99
Automotive: No
Temp Range: -55 to 85°C
EP: No
Product Lifecycle: 量产
Package: 24-Lead QFN (4mm x 4mm w/ EP)
RF Primary Function: PA Bias Controller
Vs+ (min): 5V
Vs+ (max): 16.5V
Vs Drain (min): 5V
Vs Drain (max): 16.5V
Idrain (min): 0.05A
Idrain (max): 1.6A
Igate Drive (min): -4mA
Igate Drive (max): 4mA
Vgate (min): -2.46V
Vgate (max): 2.04V
Over/Under Idrain Alarm: Yes
Low Vsupply Alarm: No
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (24-Lead QFN (4mm x 4mm w/ EP)) (HMC980LP4ETR)mm²
更多
Package Height: 1mm (24-Lead QFN (4mm x 4mm w/ EP)) (HMC980LP4ETR)mm
EP: No
Product Lifecycle: 量产
Package: 24-Lead QFN (4mm x 4mm w/ EP)
RF Primary Function: PA Bias Controller
Vs+ (min): 5V
Vs+ (max): 16.5V
Vs Drain (min): 5V
Vs Drain (max): 16.5V
Idrain (min): 0.05A
Idrain (max): 1.6A
Igate Drive (min): -4mA
Igate Drive (max): 4mA
Vgate (min): -2.46V
Vgate (max): 2.04V
Over/Under Idrain Alarm: Yes
Low Vsupply Alarm: No
Eval / Ref Circuit: Evaluation board
Export Classification: EAR99
Automotive: No
Temp Range: -40 to 85°C
Package Area: 16mm² (24-Lead QFN (4mm x 4mm w/ EP)) (HMC980LP4ETR)mm²
更多
Package Height: 1mm (24-Lead QFN (4mm x 4mm w/ EP)) (HMC980LP4ETR)mm
EP: No
