BTS716GB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS716GB is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 9.0A Recommended Operating Voltage max: 40.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 5.0A Channels: 4.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 2.6A R[DS (on)](@ Tj = 150°C) max: 280.0mΩ R[DS (on)](@ Tj = 25°C): 110.0mΩ Load Current: 2.6A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS40K2-1ENC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

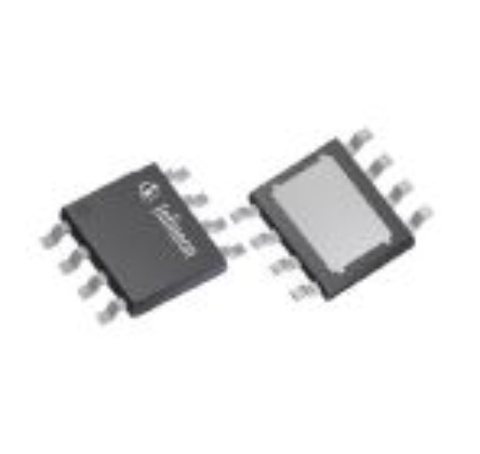

描述: BTS40k2-1ENC, 200mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-8-31, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 Diagnostics: Sense IL(Short Circuit Current): 50.0A Mounting: SMD Nominal Load Current per channel(All channels active): 1.5A Operating Temperature max: 150.0°C R[DS (on)](@ Tj = 150°C) max: 400.0mΩ R[DS (on)](@ Tj = 25°C): 200.0mΩ t[off](Turn OFF time) max: 120.0µs t[on](Turn ON time) max: 120.0µs Load Current: 1.5A Family: Classic PROFET™ 24V Qualification: Automotive Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS4300SGA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4300SGA is a single channel Smart High-Side Power Switch.

IL(Short Circuit Current): 4.0A P[tot] max: 1.5W Operating Temperature max: 150.0°C Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 140.0µs t[off](Turn OFF time) max: 170.0µs Current Limit min: 0.4A Channels: 1.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 300.0mΩ R[DS (on)](@ Tj = 150°C) max: 600.0mΩ Nominal Load Current per channel(All channels active): 0.4A Load Current: 0.4A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS50085-1TMA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50085-1TMA is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 170.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 50.0A Recommended Operating Voltage max: 58.0V t[on](Turn ON time) max: 400.0µs t[off](Turn OFF time) max: 110.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: SMT Nominal Load Current per channel(All channels active): 11.1A R[DS (on)](@ Tj = 25°C): 7.2mΩ Family: Classic PROFET™ 24V Load Current: 11.1A Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS452T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS452T is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 41.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 6.5A Recommended Operating Voltage max: 52.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: n.a. Mounting: SMT Nominal Load Current per channel(All channels active): 2.2A R[DS (on)](@ Tj = 25°C): 150.0mΩ Load Current: 2.2A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS50085-1TMB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50085-1TMB is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 170.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 50.0A Recommended Operating Voltage max: 58.0V t[on](Turn ON time) max: 400.0µs t[off](Turn OFF time) max: 110.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: THT Nominal Load Current per channel(All channels active): 11.1A R[DS (on)](@ Tj = 25°C): 7.2mΩ R[DS (on)](@ Tj = 150°C) max: 17.0mΩ Family: Classic PROFET™ 24V Load Current: 11.1A Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS50080-1TMA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

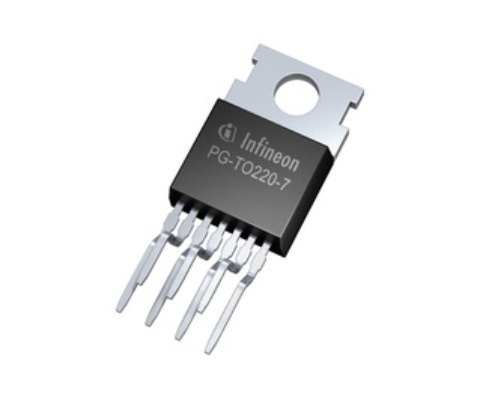

描述: The BTS50080-1TMA is a one channel high-side power switch in PG-TO220-7-4 package providing embedded protective functions

P[tot] max: 81.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 90.0A Recommended Operating Voltage max: 38.0V t[on](Turn ON time) max: 550.0µs t[off](Turn OFF time) max: 600.0µs Current Limit min: 90.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 12.0A Nominal Load Current per channel(All channels active): 12.0A R[DS (on)](@ Tj = 25°C): 7.0mΩ Load Current: 12.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

AUIPS7111S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

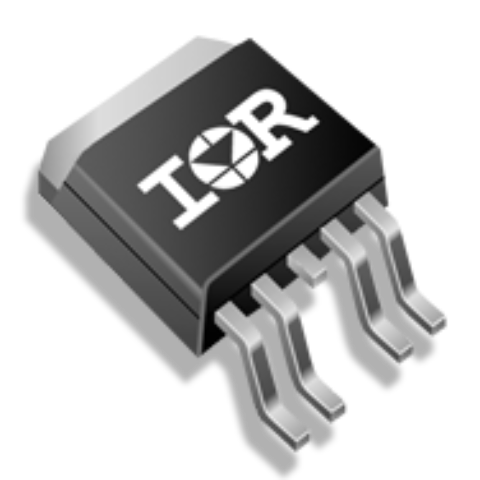

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D2-Pak 5-Lead Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 15.0mΩ R[DS (on)](@ Tj = 25°C): 6.0mΩ Recommended Operating Voltage max: 50.0V IL(Short Circuit Current): 45.0A Diagnostics: Sense t[on](Turn ON time) max: 75.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 155.0µs Qualification: Automotive Family: Classic PROFET™ 24V Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTG7007A-1EPW

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

Channels: 1.0 Diagnostics: SENSE Halogen-free: yes Mounting: SMT Operating Temperature max: 150.0°C R[DS (on)](@ Tj = 150°C) max: 14.7mΩ Adjustable overcurrent protection max: 77.5A I²t wire protection range max: 11.4A Certifications: ISO 26262-compliant Load Current: 10.3A Classification: ISO 26262-compliant Nominal Load Current per channel: 10.3A Recommended Operating Voltage max: 28.0V R[DS (on)](@ Tj = 25°C): 8.0mΩ Qualification: Automotive Family: PROFET™ Wire Guard 12V Currently planned availability until at least: 2038

BTG70020A-1ESW

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

Channels: 1.0 Diagnostics: SENSE R[DS (on)](@ Tj = 150°C) max: 4.1mΩ Operating Temperature max: 150.0°C Mounting: SMT Halogen-free: yes I²t wire protection range max: 23.9A Adjustable overcurrent protection max: 168.0A Load Current: 21.5A Certifications: ISO 26262-compliant Classification: ISO 26262-compliant R[DS (on)](@ Tj = 25°C): 2.2mΩ Qualification: Automotive Nominal Load Current per channel: 21.5A Recommended Operating Voltage max: 28.0V Currently planned availability until at least: 2038 Family: EiceDRIVER™ isolated gate driver ICs for EV
