BTS4175SGA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

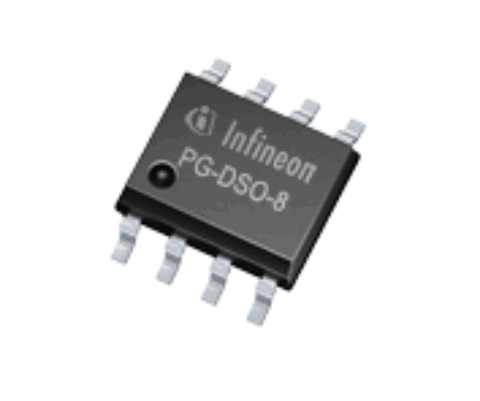

描述: BTS4175SGA is a single channel Smart High-Side Power Switch. It is embedded in a PG-DSO-8-24 package, providing protective functions and diagnostics.

IL(Short Circuit Current): 6.5A P[tot] max: 1.5W Operating Temperature max: 150.0°C Recommended Operating Voltage max: 52.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 175.0mΩ R[DS (on)](@ Tj = 150°C) max: 350.0mΩ Nominal Load Current per channel(All channels active): 1.3A Load Current: 1.3A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BSP762T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BSP762T is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 10.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 170.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 70.0mΩ R[DS (on)](@ Tj = 150°C) max: 200.0mΩ Nominal Load Current per channel(All channels active): 2.4A Load Current: 2.4A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS5215L

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS5215L is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.1W Operating Temperature max: 150.0°C IL(Short Circuit Current): 15.0A Recommended Operating Voltage max: 40.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 9.0A Channels: 2.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 4.7A R[DS (on)](@ Tj = 150°C) max: 180.0mΩ R[DS (on)](@ Tj = 25°C): 70.0mΩ Load Current: 4.7A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

AUIPS7141R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

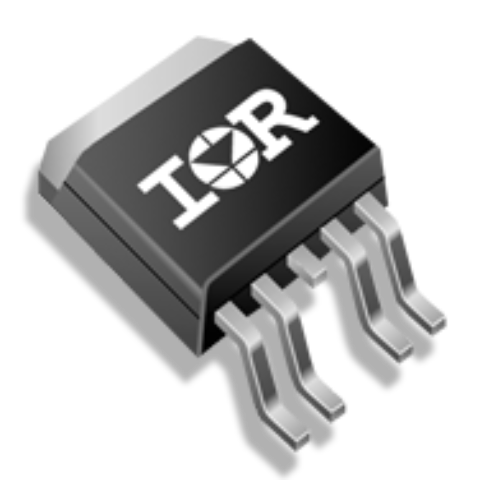

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D-Pak 5-Lead Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 180.0mΩ R[DS (on)](@ Tj = 25°C): 75.0mΩ Recommended Operating Voltage max: 60.0V IL(Short Circuit Current): 25.0A Diagnostics: Sense t[on](Turn ON time) max: 30.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 90.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS452R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS452R is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 41.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 6.5A Recommended Operating Voltage max: 52.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 2.2A R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 270.0mΩ Load Current: 2.2A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS4141N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4141N is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.4W Operating Temperature max: 125.0°C IL(Short Circuit Current): 2.1A Recommended Operating Voltage max: 45.0V t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 150.0µs Current Limit min: 0.7A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 320.0mΩ Nominal Load Current per channel(All channels active): 0.7A Load Current: 0.7A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS6163D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS6163D is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 59.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 50.0A Recommended Operating Voltage max: 62.0V t[on](Turn ON time) max: 300.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 6.5A R[DS (on)](@ Tj = 150°C) max: 40.0mΩ R[DS (on)](@ Tj = 25°C): 19.0mΩ Load Current: 6.5A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS41K0S-ME-N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS41k0S-ME-N is a protected 1 Ω single channel Smart High-Side NMOS-Power Switch monolithically integrated in a smart power technology.

Channels: 1.0 Recommended Operating Voltage max: 45.0V IL(Short Circuit Current): 0.9A P[tot] max: 1.7W t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 140.0µs Operating Temperature max: 150.0°C Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 800.0mΩ Nominal Load Current per channel(All channels active): 0.2A Load Current: 0.2A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

AUIPS7145R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D-Pak 5-Lead Package

AUIPS7091G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

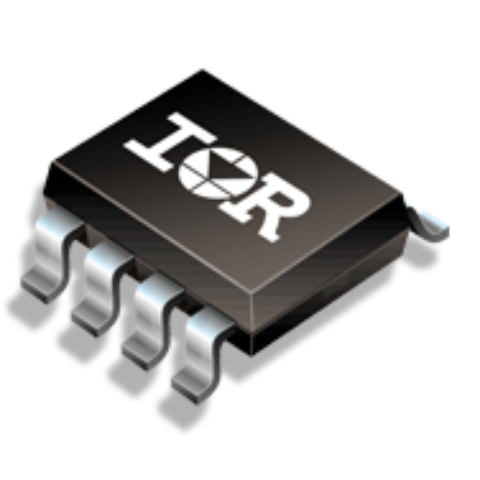

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a SO-8 Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 230.0mΩ R[DS (on)](@ Tj = 25°C): 80.0mΩ Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 5.0A Diagnostics: Digital t[on](Turn ON time) max: 125.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 70.0µs Load Current: 1.5A Family: Classic PROFET™ 24V Qualification: Automotive
