BTS724G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS724 is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 15.0A Recommended Operating Voltage max: 40.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 9.0A Channels: 4.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 3.3A R[DS (on)](@ Tj = 25°C): 70.0mΩ R[DS (on)](@ Tj = 150°C) max: 180.0mΩ Load Current: 3.3A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS4140N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4140N is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.7W Operating Temperature max: 150.0°C IL(Short Circuit Current): 0.9A Recommended Operating Voltage max: 60.0V t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 140.0µs Current Limit min: 0.2A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 1000.0mΩ R[DS (on)](@ Tj = 150°C) max: 3000.0mΩ Nominal Load Current per channel(All channels active): 0.2A Load Current: 0.2A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS4130QGA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4130QGA is a quad channel Smart High-Side Power Switch. It is embedded in a PG-DSO-20-32package, providing protective functions and diagnostics

IL(Short Circuit Current): 9.0A P[tot] max: 1.4W Operating Temperature max: 150.0°C Recommended Operating Voltage max: 20.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 5.0A Channels: 4.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 130.0mΩ R[DS (on)](@ Tj = 150°C) max: 260.0mΩ Nominal Load Current per channel(All channels active): 1.8A Load Current: 2.1A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS441RG

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET with charge pump, ground referenced CMOS compatible input and monolithically integrated in Smart SIPMOS technology

P[tot] max: 125.0mW Operating Temperature max: 150.0°C IL(Short Circuit Current): 65.0A Recommended Operating Voltage max: 41.0V t[on](Turn ON time) max: 200.0µs t[off](Turn OFF time) max: 250.0µs Channels: 1.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 17.0A R[DS (on)](@ Tj = 25°C): 15.0mΩ R[DS (on)](@ Tj = 150°C) max: 37.0mΩ Load Current: 21.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BSP752R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BSP752R is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 6.5A Recommended Operating Voltage max: 52.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 380.0mΩ Nominal Load Current per channel(All channels active): 1.7A Load Current: 1.7A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS4142N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4142N is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.4W Operating Temperature max: 125.0°C IL(Short Circuit Current): 3.0A Recommended Operating Voltage max: 45.0V t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 150.0µs Current Limit min: 1.4A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 320.0mΩ Nominal Load Current per channel(All channels active): 1.4A Load Current: 1.4A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

AUIR3320S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

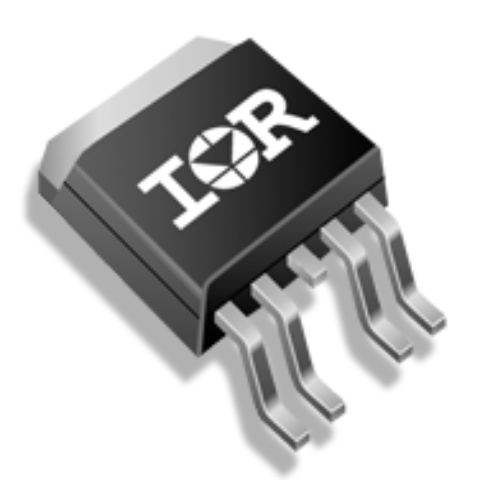

描述: Automotive Q100 Protected High Side Switch in a 5-Lead D2-Pak Package

Channels: 1.0 R[DS (on)](@ Tj = 150°C) max: 6.5mΩ R[DS (on)](@ Tj = 25°C): 3.3mΩ Recommended Operating Voltage max: 26.0V Mounting: SMD IL(Short Circuit Current): 75.0A Diagnostics: Sense Operating Temperature max: 150.0°C t[on](Turn ON time) max: 660.0µs t[off](Turn OFF time) max: 390.0µs Qualification: Automotive Family: Classic PROFET™ 12V Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS436L2G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS436L2G is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Recommended Operating Voltage max: 41.0V IL(Short Circuit Current): 40.0A Diagnostics: Status P[tot] max: 75.0W t[on](Turn ON time) max: 200.0µs t[off](Turn OFF time) max: 250.0µs Operating Temperature max: 150.0°C Mounting: SMD Current Limit(at 25°C) min: 39.0A Nominal Load Current per channel(All channels active): 9.8A R[DS (on)](@ Tj = 25°C): 35.0mΩ R[DS (on)](@ Tj = 150°C) max: 72.0mΩ Channels: 1.0 Load Current: 9.8A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS441TG

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS441TG is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

IL(Short Circuit Current): 65.0A Recommended Operating Voltage max: 41.0V P[tot] max: 125.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 200.0µs t[off](Turn OFF time) max: 250.0µs Channels: 1.0 Diagnostics: Digital Mounting: THT Nominal Load Current per channel(All channels active): 17.0A R[DS (on)](@ Tj = 25°C): 15.0mΩ R[DS (on)](@ Tj = 150°C) max: 37.0mΩ Load Current: 21.0A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS50080-1TEB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

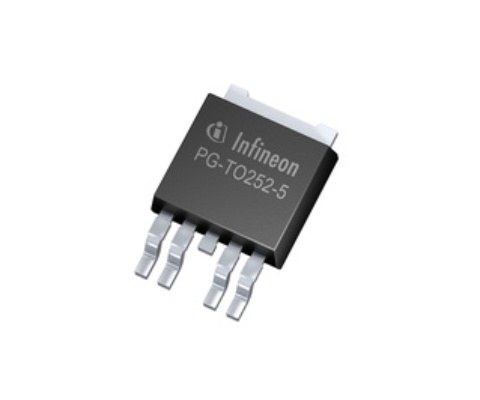

描述: The BTS50080-1TEB is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions

Operating Temperature max: 150.0°C IL(Short Circuit Current): 70.0A Recommended Operating Voltage max: 30.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 70.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 10.0A R[DS (on)](@ Tj = 25°C): 8.0mΩ R[DS (on)](@ Tj = 150°C) max: 16.0mΩ Family: Classic PROFET™ 12V Load Current: 10.0A Qualification: Automotive Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a
