BTS443P

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 42.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 35.0A Recommended Operating Voltage max: 36.0V t[on](Turn ON time) max: 410.0µs t[off](Turn OFF time) max: 410.0µs Current Limit min: 35.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: SMT Nominal Load Current per channel(All channels active): 25.0A R[DS (on)](@ Tj = 25°C): 13.0mΩ R[DS (on)](@ Tj = 150°C) max: 31.0mΩ Family: Classic PROFET™ 12V Load Current: 7.6A Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS50080-1TMC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50080-1TMC is a one channel high-side power switch in PG-TO220-7-4 package providing embedded protective functions

IL(Short Circuit Current): 90.0A P[tot] max: 81.0W Operating Temperature max: 150.0°C Recommended Operating Voltage max: 38.0V t[on](Turn ON time) max: 550.0µs t[off](Turn OFF time) max: 600.0µs Current Limit min: 90.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: SMT Nominal Load Current per channel(All channels active): 12.0A R[DS (on)](@ Tj = 25°C): 8.0mΩ R[DS (on)](@ Tj = 150°C) max: 16.0mΩ Family: Classic PROFET™ 12V Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIPS6041G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

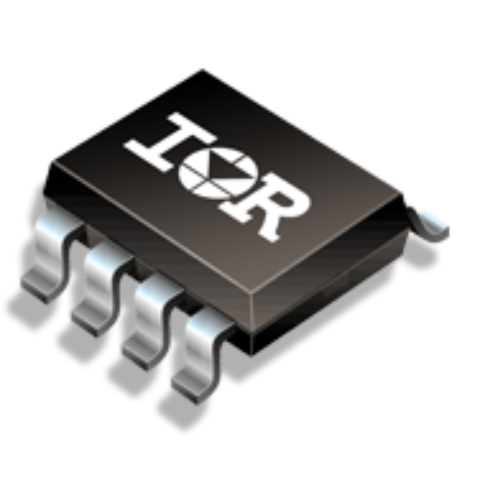

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a SO-8 Package

Channels: 1.0 R[DS (on)](@ Tj = 150°C) max: 230.0mΩ R[DS (on)](@ Tj = 25°C): 110.0mΩ Mounting: SMD Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 7.0A Diagnostics: Digital t[on](Turn ON time) max: 55.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 30.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIR3315S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

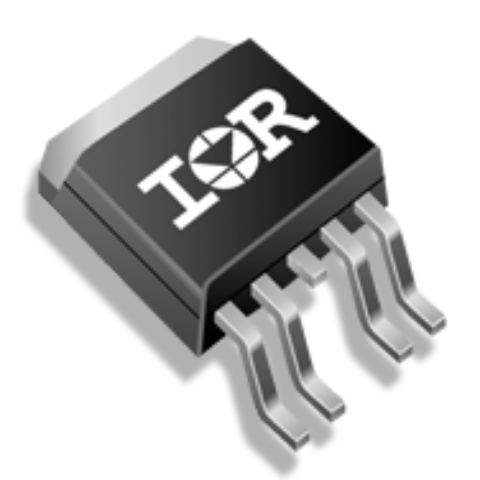

描述: Automotive Q100 Programmable Current Sense High Side Switch in a 5-Lead D2-Pak Package

Channels: 1.0 Recommended Operating Voltage max: 32.0V Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 38.0mΩ R[DS (on)](@ Tj = 25°C): 15.0mΩ IL(Short Circuit Current): 38.0A Diagnostics: Sense Operating Temperature max: 150.0°C t[on](Turn ON time) max: 60.0µs t[off](Turn OFF time) max: 120.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIPS72211R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High frequency Protected High Side Switch with integrated bootstrap optimized EMI and charge pump in D-Pak-5 Leads package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 70.0mΩ R[DS (on)](@ Tj = 25°C): 30.0mΩ Recommended Operating Voltage max: 60.0V IL(Short Circuit Current): 30.0A Diagnostics: Digital t[on](Turn ON time) max: 1.8µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 2.6µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS723GW

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BZS723GW is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 9.0A Recommended Operating Voltage max: 58.0V t[on](Turn ON time) max: 55.0µs t[off](Turn OFF time) max: 95.0µs Current Limit min: 5.0A Channels: 2.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 2.9A R[DS (on)](@ Tj = 25°C): 90.0mΩ R[DS (on)](@ Tj = 150°C) max: 210.0mΩ Load Current: 2.9A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS716G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS 716G is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 9.0A Recommended Operating Voltage max: 40.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 5.0A Channels: 4.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 2.6A R[DS (on)](@ Tj = 150°C) max: 280.0mΩ R[DS (on)](@ Tj = 25°C): 110.0mΩ Load Current: 2.6A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS4880R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS4880R is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.3W Operating Temperature max: 125.0°C IL(Short Circuit Current): 3.0A Recommended Operating Voltage max: 45.0V t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 150.0µs Current Limit min: 3.0A Channels: 8.0 Diagnostics: Digital Mounting: SMT Nominal Load Current per channel(All channels active): 1.0A R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 320.0mΩ Load Current: 0.625A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BSP752T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BSP752T is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 6.5A Recommended Operating Voltage max: 52.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 4.0A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 150.0mΩ R[DS (on)](@ Tj = 150°C) max: 380.0mΩ Nominal Load Current per channel(All channels active): 1.7A Load Current: 1.7A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

BTS428L2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS428L2 is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 75.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 22.0A Recommended Operating Voltage max: 41.0V t[on](Turn ON time) max: 200.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 12.0A Channels: 1.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 50.0mΩ Nominal Load Current per channel(All channels active): 7.0A Load Current: 7.0A Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033
