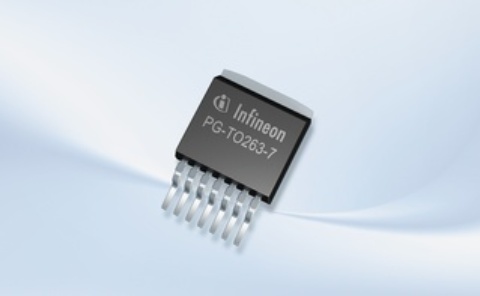

BTS50055-1TMC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 170.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 45.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 470.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 45.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: SMT Nominal Load Current per channel(All channels active): 17.0A R[DS (on)](@ Tj = 25°C): 4.4mΩ Family: Classic PROFET™ 12V Load Current: 17.0A Classification: n.a Undervoltage Recovery Delay: n.a Currently planned availability until at least: n.a

AUIPS7081R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D-Pak Package

Channels: 1.0 R[DS (on)](@ Tj = 150°C) max: 130.0mΩ R[DS (on)](@ Tj = 25°C): 55.0mΩ Mounting: SMD Recommended Operating Voltage max: 35.0V IL(Short Circuit Current): 5.0A Diagnostics: Digital t[on](Turn ON time) max: 195.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 75.0µs Qualification: Automotive Family: Classic PROFET™

BTS721L1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

IL(Short Circuit Current): 8.0A Recommended Operating Voltage max: 34.0V Current Limit min: 5.0A Channels: 4.0 Diagnostics: Digital Nominal Load Current per channel(All channels active): 2.9A R[DS (on)](@ Tj = 150°C) max: 200.0mΩ R[DS (on)](@ Tj = 25°C): 85.0mΩ Load Current: 2.9A Operating Temperature max: 150.0°C Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034

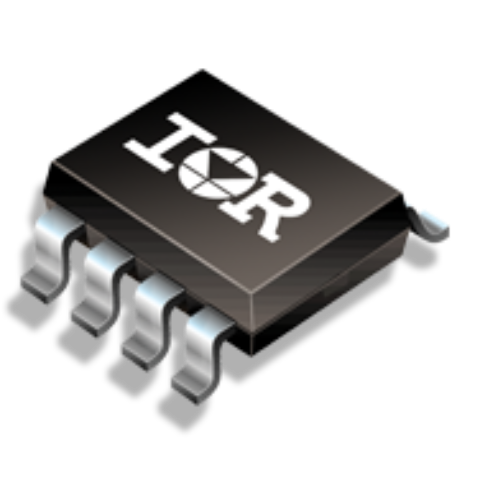

AUIPS71451G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a SO-8 Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 180.0mΩ R[DS (on)](@ Tj = 25°C): 75.0mΩ Recommended Operating Voltage max: 60.0V IL(Short Circuit Current): 7.0A Diagnostics: Sense t[on](Turn ON time) max: 30.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 90.0µs Qualification: Automotive Family: Classic PROFET™

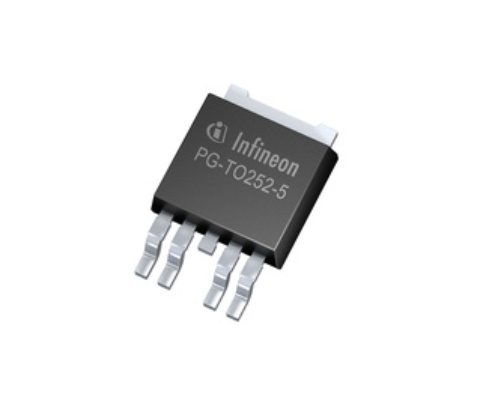

BTS5014SDA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS5014SDA is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions

Operating Temperature max: 150.0°C IL(Short Circuit Current): 55.0A Recommended Operating Voltage max: 20.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 55.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 6.0A R[DS (on)](@ Tj = 25°C): 14.0mΩ R[DS (on)](@ Tj = 150°C) max: 28.0mΩ Family: Classic PROFET™ 12V Load Current: 7.0A Qualification: Automotive Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

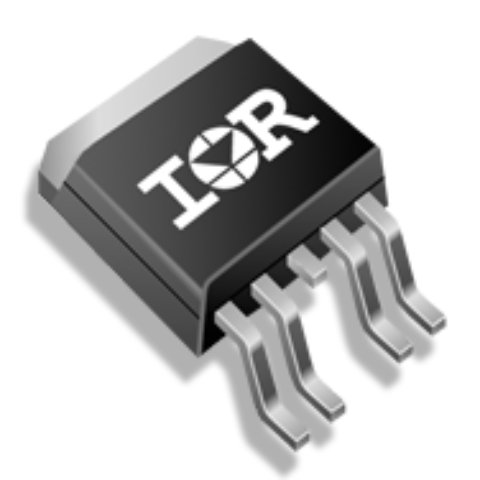

AUIR3314S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Programmable Current Sense High Side Switch in a 5-Lead D2-Pak Package

Channels: 1.0 Recommended Operating Voltage max: 32.0V Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 23.0mΩ R[DS (on)](@ Tj = 25°C): 9.0mΩ IL(Short Circuit Current): 72.0A Diagnostics: Sense Operating Temperature max: 150.0°C t[on](Turn ON time) max: 145.0µs t[off](Turn OFF time) max: 195.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIPS7121R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D-Pak 5-Lead Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 55.0mΩ R[DS (on)](@ Tj = 25°C): 24.0mΩ Recommended Operating Voltage max: 60.0V IL(Short Circuit Current): 60.0A Diagnostics: Sense t[on](Turn ON time) max: 60.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 130.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIPS7081S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D2-Pak Package

AUIR3316S

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Low EMI Current Sense High Side Switch in a 5-Lead D2-Pak Package

Channels: 1.0 Recommended Operating Voltage max: 32.0V Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 13.5mΩ R[DS (on)](@ Tj = 25°C): 5.5mΩ IL(Short Circuit Current): 120.0A Diagnostics: Sense Operating Temperature max: 150.0°C t[on](Turn ON time) max: 625.0µs t[off](Turn OFF time) max: 600.0µs Qualification: Automotive Family: Classic PROFET™ 12V Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

AUIPS7125R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: Automotive Q100 Intelligent Power Switch 1 Channel High Side Driver in a D-Pak 5-Lead Package

Channels: 1.0 Mounting: SMD R[DS (on)](@ Tj = 150°C) max: 55.0mΩ R[DS (on)](@ Tj = 25°C): 24.0mΩ Recommended Operating Voltage max: 60.0V IL(Short Circuit Current): 60.0A Diagnostics: Sense t[on](Turn ON time) max: 60.0µs Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 150.0µs Qualification: Automotive Family: Classic PROFET™ Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a
