BTS4160DGA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

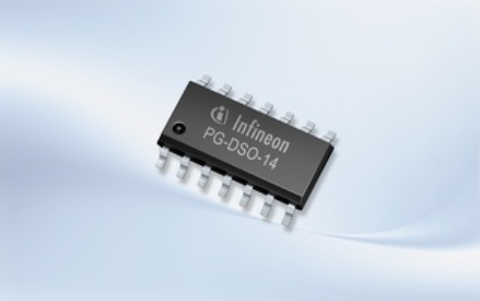

描述: BTS4160DGA is a dual channel Smart High-Side Power Switch. It is embedded in a PG-DSO-14-37 package, providing protective functions and diagnostics.

IL(Short Circuit Current): 9.0A P[tot] max: 1.4W Operating Temperature max: 150.0°C Recommended Operating Voltage max: 20.0V t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 270.0µs Current Limit min: 5.0A Channels: 2.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 160.0mΩ R[DS (on)](@ Tj = 150°C) max: 320.0mΩ Nominal Load Current per channel(All channels active): 1.7A Load Current: 1.7A Qualification: Automotive Currently planned availability until at least: 2033 Family: EiceDRIVER™ isolated gate driver ICs for EV

BTT6050-2ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

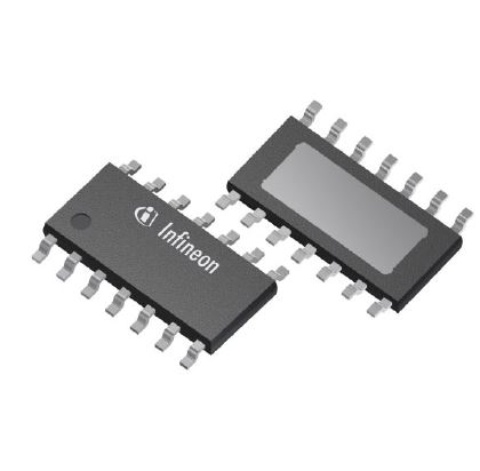

描述: BTT6050-2ERA is a 50mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Diagnostics: Current Sense Operating Temperature max: 150.0°C Mounting: SMD Recommended Operating Voltage max: 48.0V R[DS (on)](@ Tj = 25°C): 50.0mΩ t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs P[tot] max: 2.1W R[DS (on)](@ Tj = 150°C) max: 100.0mΩ IL(Short Circuit Current): 38.0A Channels: 2.0 Load Current: 3.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 3.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 4.0A Certifications: ISO 26262-ready Classification: ISO 26262-ready

BTS50060-1TEA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

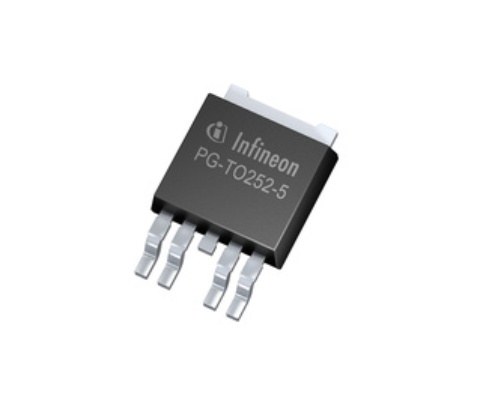

描述: Embedded in a PG-TO252-5-11 package, the BTS50060-1TEA is a 6mΩ single Smart High-Side Power Switch

IL(Short Circuit Current): 60.0A Recommended Operating Voltage max: 28.0V Operating Temperature max: 150.0°C t[on](Turn ON time) max: 130.0µs t[off](Turn OFF time) max: 150.0µs Current Limit min: 60.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 13.5A R[DS (on)](@ Tj = 25°C): 6.0mΩ R[DS (on)](@ Tj = 150°C) max: 12.0mΩ Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS426L1E3062A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

Channels: 1.0 Recommended Operating Voltage max: 34.0V IL(Short Circuit Current): 16.0A t[on](Turn ON time) max: 400.0µs t[off](Turn OFF time) max: 450.0µs Operating Temperature max: 150.0°C Diagnostics: Digital R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 120.0mΩ Nominal Load Current per channel(All channels active): 7.0A Load Current: 7.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034 Mounting: n.a Undervoltage Recovery Delay: n.a Classification: -

BTS621L1E3128A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

IL(Short Circuit Current): 8.0A Recommended Operating Voltage max: 34.0V Channels: 2.0 t[off](Turn OFF time) max: 400.0µs t[on](Turn ON time) max: 400.0µs Operating Temperature max: 150.0°C Diagnostics: Digital Nominal Load Current per channel(All channels active): 8.5A R[DS (on)](@ Tj = 25°C): 80.0mΩ Load Current: 4.4A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034 Mounting: n.a Undervoltage Recovery Delay: n.a Classification: -

BTS5012SDA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS5012SDA is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions

Operating Temperature max: 150.0°C IL(Short Circuit Current): 65.0A Recommended Operating Voltage max: 20.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 65.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 6.5A R[DS (on)](@ Tj = 25°C): 12.0mΩ R[DS (on)](@ Tj = 150°C) max: 24.0mΩ Load Current: 8.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS50055-1TMA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

IL(Short Circuit Current): 65.0A Recommended Operating Voltage max: 34.0V Current Limit min: 65.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: SMT Nominal Load Current per channel(All channels active): 17.0A R[DS (on)](@ Tj = 25°C): 4.4mΩ R[DS (on)](@ Tj = 150°C) max: 10.5mΩ Family: Classic PROFET™ 12V Load Current: 17.0A Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS612N1E3128A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Channels: 2.0 Recommended Operating Voltage max: 34.0V IL(Short Circuit Current): 4.0A t[on](Turn ON time) max: 400.0µs t[off](Turn OFF time) max: 400.0µs Operating Temperature max: 150.0°C Diagnostics: Digital Nominal Load Current per channel(All channels active): 1.7A R[DS (on)](@ Tj = 150°C) max: 500.0mΩ R[DS (on)](@ Tj = 25°C): 160.0mΩ Load Current: 2.3A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034 Mounting: n.a Undervoltage Recovery Delay: n.a Classification: -

BTS50055-1TMB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 170.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 65.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 470.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 65.0A Channels: 1.0 Diagnostics: Sense Qualification: Automotive Mounting: THT Nominal Load Current per channel(All channels active): 17.0A R[DS (on)](@ Tj = 25°C): 4.4mΩ R[DS (on)](@ Tj = 150°C) max: 10.5mΩ Family: Classic PROFET™ 12V Load Current: 17.0A Classification: n.a Currently planned availability until at least: n.a Undervoltage Recovery Delay: n.a

BTS6142D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS 6142D is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions including ReverSave™

P[tot] max: 50.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 50.0A Recommended Operating Voltage max: 24.0V t[on](Turn ON time) max: 600.0µs t[off](Turn OFF time) max: 600.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 8.5A R[DS (on)](@ Tj = 150°C) max: 22.0mΩ R[DS (on)](@ Tj = 25°C): 10.0mΩ Load Current: 8.5A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033
