BTS5030-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

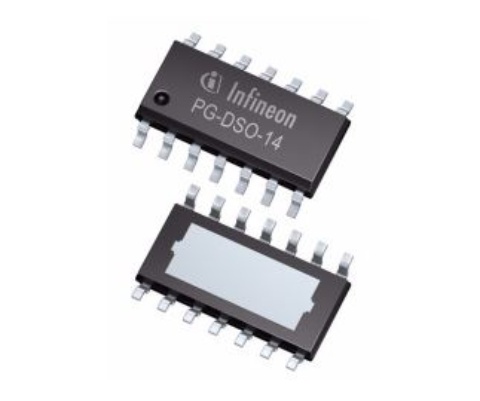

描述: BTS5030-2EKA, 30 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 36.0A P[tot] max: 2.1W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 33.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 4.0A R[DS (on)](@ Tj = 150°C) max: 60.0mΩ R[DS (on)](@ Tj = 25°C): 30.0mΩ Load Current: 4.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BSP742T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 3.0A Recommended Operating Voltage max: 34.0V t[off](Turn OFF time) max: 170.0µs Current Limit min: 2.0A Channels: 1.0 t[on](Turn ON time) max: 140.0µs Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 260.0mΩ Nominal Load Current per channel(All channels active): 0.8A Load Current: 1.1A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS5020-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

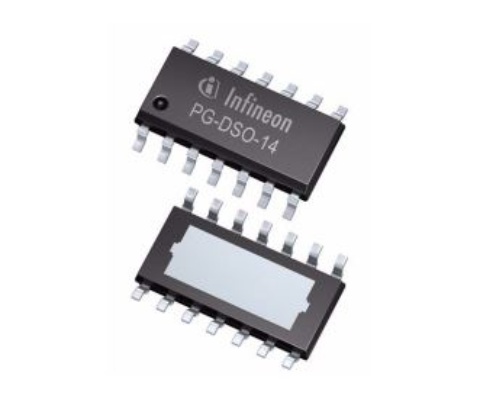

描述: BTS5020-2EKA, 20 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.2W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 50.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 5.0A R[DS (on)](@ Tj = 150°C) max: 44.0mΩ R[DS (on)](@ Tj = 25°C): 20.0mΩ Load Current: 5.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5016SDA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

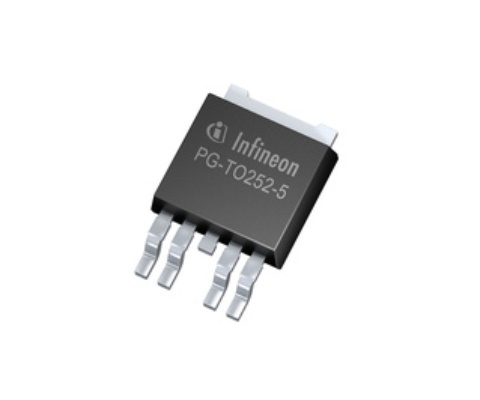

描述: The BTS5016SDA is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions

Operating Temperature max: 150.0°C IL(Short Circuit Current): 45.0A Recommended Operating Voltage max: 20.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 45.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 5.5A R[DS (on)](@ Tj = 25°C): 16.0mΩ R[DS (on)](@ Tj = 150°C) max: 32.0mΩ Load Current: 6.5A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS711L1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

IL(Short Circuit Current): 4.0A Recommended Operating Voltage max: 35.0V Current Limit min: 2.5A Channels: 4.0 Diagnostics: Digital Nominal Load Current per channel(All channels active): 1.9A R[DS (on)](@ Tj = 25°C): 165.0mΩ Load Current: 1.9A Operating Temperature max: 150.0°C Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034

BTS50080-1TMB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

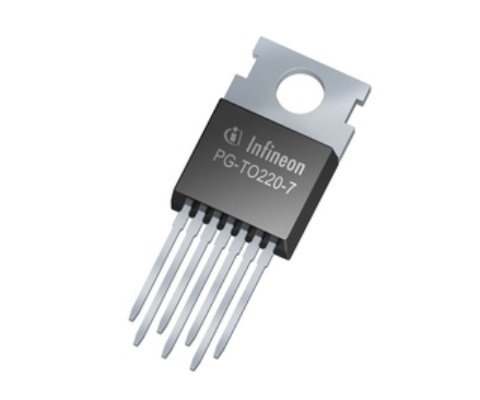

描述: The BTS50080-1TMB is a one channel high-side power switch in PG-TO220-7-4 package providing embedded protective functions

P[tot] max: 81.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 90.0A Recommended Operating Voltage max: 38.0V t[on](Turn ON time) max: 550.0µs t[off](Turn OFF time) max: 600.0µs Current Limit min: 90.0A Channels: 1.0 Diagnostics: Sense Mounting: THT Nominal Load Current per channel(All channels active): 12.0A R[DS (on)](@ Tj = 25°C): 7.0mΩ R[DS (on)](@ Tj = 150°C) max: 16.0mΩ Load Current: 12.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BSP452

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.8W Operating Temperature max: 150.0°C IL(Short Circuit Current): 1.5A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 100.0µs t[off](Turn OFF time) max: 150.0µs Current Limit min: 0.7A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 160.0mΩ Nominal Load Current per channel(All channels active): 0.7A Load Current: 0.7A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034

BTS6133D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 59.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 70.0A Recommended Operating Voltage max: 38.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 70.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 10.0A R[DS (on)](@ Tj = 25°C): 10.0mΩ Load Current: 10.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS409L1E3062A

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Current Limit min: 3.0A Channels: 1.0 t[off](Turn OFF time) max: 400.0µs t[on](Turn ON time) max: 400.0µs Operating Temperature max: 150.0°C Diagnostics: Digital R[DS (on)](@ Tj = 25°C): 160.0mΩ R[DS (on)](@ Tj = 150°C) max: 400.0mΩ Load Current: 2.3A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034 Undervoltage Recovery Delay: n.a Mounting: n.a Classification: -

BTF50060-1TEA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 60.0A Operating Temperature max: 150.0°C t[on](Turn ON time) max: 1.0µs t[off](Turn OFF time) max: 1.5µs Current Limit min: 60.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT R[DS (on)](@ Tj = 25°C): 6.0mΩ R[DS (on)](@ Tj = 150°C) max: 12.0mΩ Nominal Load Current per channel(All channels active): 13.5A Qualification: Automotive Currently planned availability until at least: 2033 Family: Classic PROFET™ 12V
