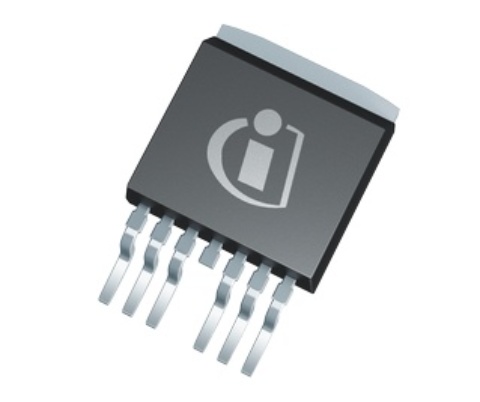

BTS462T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 41.6W Operating Temperature max: 150.0°C IL(Short Circuit Current): 14.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 170.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 7.0A Channels: 1.0 Diagnostics: n.a. Mounting: SMT Nominal Load Current per channel(All channels active): 4.4A R[DS (on)](@ Tj = 25°C): 70.0mΩ Load Current: 4.4A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

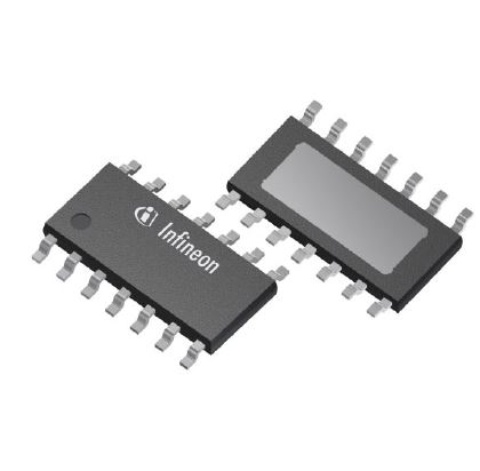

BTT6030-2ERB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6030-2ERB is a 32mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 2.0 R[DS (on)](@ Tj = 25°C): 32.0mΩ R[DS (on)](@ Tj = 150°C) max: 62.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 40.0A Recommended Operating Voltage max: 48.0V P[tot] max: 2.0W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 4.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 4.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 4.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready

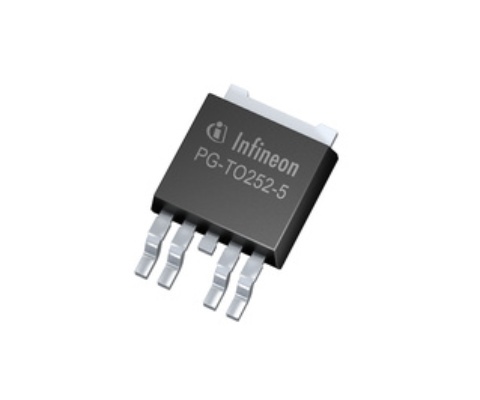

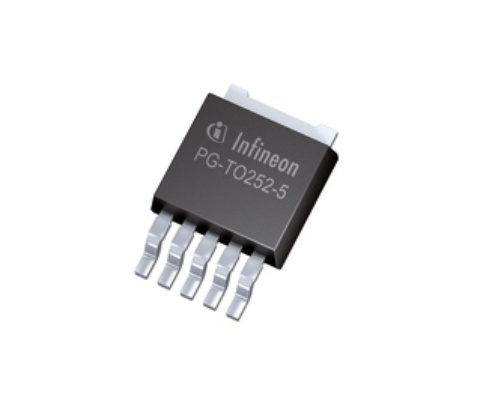

BTS50080-1TEA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50080-1TEA is a one channel high-side power switch in PG-TO252-5-11 package providing embedded protective functions

Operating Temperature max: 150.0°C IL(Short Circuit Current): 70.0A Recommended Operating Voltage max: 30.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 70.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 10.0A R[DS (on)](@ Tj = 25°C): 8.0mΩ R[DS (on)](@ Tj = 150°C) max: 16.0mΩ Load Current: 10.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

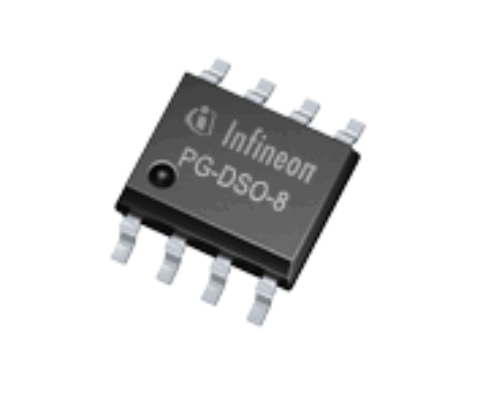

BSP772T

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 17.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 180.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 9.0A Channels: 1.0 Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 120.0mΩ Nominal Load Current per channel(All channels active): 3.1A Load Current: 3.1A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BSP742R

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 1.5W Operating Temperature max: 150.0°C IL(Short Circuit Current): 1.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 140.0µs t[off](Turn OFF time) max: 170.0µs Current Limit min: 0.4A Channels: 1.0 Diagnostics: Digital Mounting: SMT R[DS (on)](@ Tj = 25°C): 250.0mΩ R[DS (on)](@ Tj = 150°C) max: 700.0mΩ Nominal Load Current per channel(All channels active): 0.4A Load Current: 0.4A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS640S2G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions

IL(Short Circuit Current): 40.0A Recommended Operating Voltage max: 34.0V Channels: 1.0 Diagnostics: Sense Nominal Load Current per channel(All channels active): 4.5A R[DS (on)](@ Tj = 150°C) max: 60.0mΩ R[DS (on)](@ Tj = 25°C): 27.0mΩ Load Current: 4.5A Operating Temperature max: 150.0°C Qualification: Automotive Family: Classic PROFET™ 24V Currently planned availability until at least: 2033

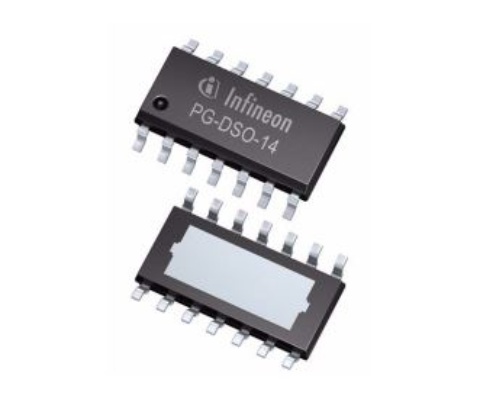

BTS5020-1EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5020-1EKA, 20 mΩ single channel Smart High-Side Switch, embedded in PG-DSO-14-47- EP, Exposed Pad package, with protective functions&diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.2W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 6.5A R[DS (on)](@ Tj = 25°C): 20.0mΩ Load Current: 6.5A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS740S2

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS740S2 is a high side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 3.8W Operating Temperature max: 150.0°C IL(Short Circuit Current): 50.0A Recommended Operating Voltage max: 34.0V t[on](Turn ON time) max: 150.0µs t[off](Turn OFF time) max: 200.0µs Current Limit min: 31.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 5.5A R[DS (on)](@ Tj = 25°C): 27.0mΩ R[DS (on)](@ Tj = 150°C) max: 60.0mΩ Load Current: 5.5A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS6143D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

P[tot] max: 59.0W Operating Temperature max: 150.0°C IL(Short Circuit Current): 70.0A Recommended Operating Voltage max: 38.0V t[on](Turn ON time) max: 500.0µs t[off](Turn OFF time) max: 500.0µs Current Limit min: 70.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 10.0A R[DS (on)](@ Tj = 150°C) max: 18.0mΩ R[DS (on)](@ Tj = 25°C): 10.0mΩ Load Current: 10.0A Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2033

BTS712N1

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

IL(Short Circuit Current): 4.0A Recommended Operating Voltage max: 34.0V Current Limit min: 2.5A Channels: 4.0 Diagnostics: Digital Nominal Load Current per channel(All channels active): 1.9A R[DS (on)](@ Tj = 150°C) max: 400.0mΩ R[DS (on)](@ Tj = 25°C): 165.0mΩ Load Current: 1.9A Operating Temperature max: 150.0°C Qualification: Automotive Family: Classic PROFET™ 12V Currently planned availability until at least: 2034
