BTT6080-1ERL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: RDS(on) @ Tj = 25°C: 75 mΩ | adjustable current limitation |1 channel| Vs(max) = 48V | PRO-SIL™ ISO 26262-ready

Operating Temperature max: 150.0°C Mounting: SMT Qualification: Automotive Recommended Operating Voltage max: 36.0V R[DS (on)](@ Tj = 25°C): 75.0mΩ Channels: 1.0 R[DS (on)](@ Tj = 150°C) max: 150.0mΩ Certifications: ISO 26262-ready Diagnostics: Current Sense IL Nominal Current: 2.5A Currently planned availability until at least: 2038 t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 2.5A Classification: ISO 26262-ready Family: PROFET™ + 24V

BTT6100-2ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6100-2ERA is a 100mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 2.0 R[DS (on)](@ Tj = 25°C): 100.0mΩ R[DS (on)](@ Tj = 150°C) max: 200.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 20.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.8W Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Operating Temperature max: 150.0°C Load Current: 2.2A Qualification: Automotive Nominal Load Current per channel(All channels active): 2.2A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 2.2A Certifications: ISO 26262-ready Classification: ISO 26262-ready

BTT6200-1ENA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

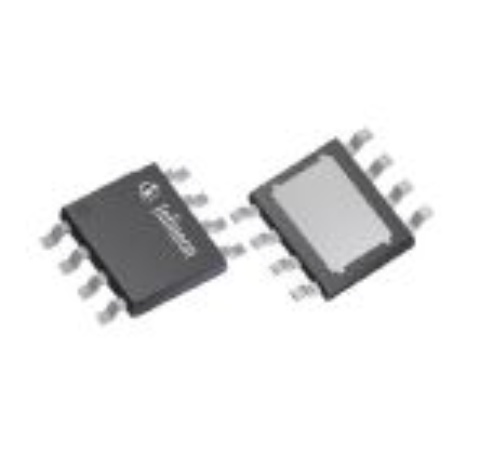

描述: BTT6200-1ENA, 200mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-8-31, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 Diagnostics: Current Sense IL(Short Circuit Current): 9.0A Mounting: SMD Nominal Load Current per channel(All channels active): 1.5A Operating Temperature max: 150.0°C P[tot] max: 1.8W R[DS (on)](@ Tj = 150°C) max: 400.0mΩ R[DS (on)](@ Tj = 25°C): 200.0mΩ Recommended Operating Voltage max: 48.0V t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 1.5A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 1.5A Certifications: ISO 26262-ready Classification: ISO 26262-ready

BTF6070-2ERV

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTF6070-2ERV is a 60mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 2.0 IL(Short Circuit Current): 9.0A Mounting: SMD Operating Temperature max: 150.0°C P[tot] max: 1.8W R[DS (on)](@ Tj = 150°C) max: 135.0mΩ R[DS (on)](@ Tj = 25°C): 60.0mΩ Recommended Operating Voltage max: 48.0V t[off](Turn OFF time) max: 70.0µs t[on](Turn ON time) max: 70.0µs Diagnostics: Current Sense Classification: ISO 26262-compliant Load Current: 2.3A Qualification: Automotive Nominal Load Current per channel(All channels active): 2.3A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 3.0A Certifications: ISO 26262-compliant

BTT6050-1ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6050-1ERA is a 50mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 100.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 38.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.6W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 4.5A Qualification: Automotive Nominal Load Current per channel(All channels active): 4.5A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 4.5A Certifications: ISO 26262-ready Classification: ISO 26262-ready

BTT6030-2ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6030-2ERA is a 32mΩ dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 2.0 R[DS (on)](@ Tj = 25°C): 32.0mΩ R[DS (on)](@ Tj = 150°C) max: 62.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 56.0A Recommended Operating Voltage max: 48.0V P[tot] max: 2.0W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 4.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 4.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 4.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready

BTT6200-4ESA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

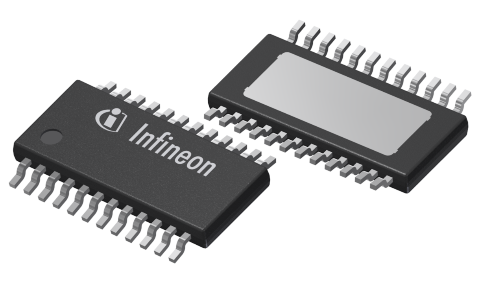

描述: BTT6200-4ESA is a 200 mΩ quad channel Smart High-Side Power Switch, embedded in a PG-TSDSO-24 package, providing protective functions and diagnosis

Channels: 4.0 R[DS (on)](@ Tj = 25°C): 200.0mΩ R[DS (on)](@ Tj = 150°C) max: 400.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 9.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.8W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 1.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 1.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 1.0A Certifications: ISO 26262-ready Classification: ISO 26262-ready

BTT6010-1ERB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6010-1ERB is a 10mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 10.0mΩ R[DS (on)](@ Tj = 150°C) max: 22.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 68.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.6W Operating Temperature max: 150.0°C Mounting: SMD t[on](Turn ON time) max: 150.0µs t[off](Turn OFF time) max: 150.0µs Load Current: 9.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 9.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 9.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready

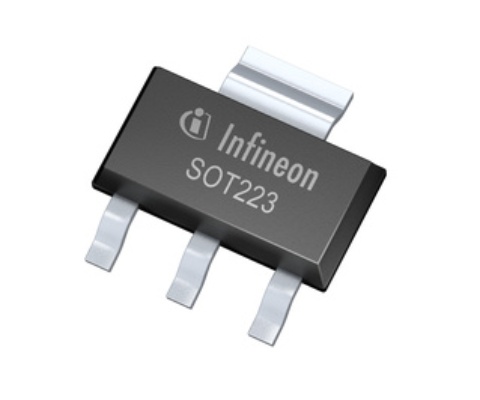

BTS3134N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS® technology. Fully protected by embedded protection function.

V[DS] max: 42.0V EAS/Avalanche Energy: 500.0mJ I[D ]: 3.0A I[D(lim)] min: 18.0A Load Current: 3.0A Mounting: SMT P[tot] max: 43.0W Control Interface: Discrete I[L(nom)]: 3.0A Recommended Operating Voltage max: 42.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 500.0mJ t[off](Turn OFF time) max: 100.0µs t[on](Turn ON time) max: 100.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 45.0mΩ R[DS (on)](@ Tj = 150°C) max: 100.0mΩ Diagnostics: - Protection strategy: Latch 更多

Nominal Load Current per channel: 3.0A I[L](Short Circuit Current): 18.0A Family: Classic HITFET™ 12V Currently planned availability until at least: 2038

BTT6010-1ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6010-1ERA is a 10mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 10.0mΩ R[DS (on)](@ Tj = 150°C) max: 22.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 90.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.6W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 9.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 9.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 9.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready
