BTS5120-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

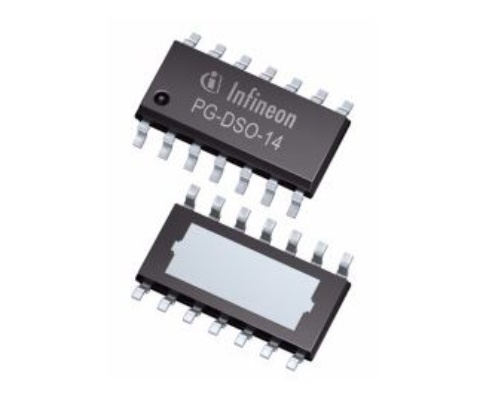

描述: BTS5120-2EKA, 120 mΩ dual channel Smart High-Side Power Switch, embedded in PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 9.0A P[tot] max: 1.8W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 8.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 2.0A R[DS (on)](@ Tj = 150°C) max: 240.0mΩ R[DS (on)](@ Tj = 25°C): 120.0mΩ Load Current: 2.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5045-1EJA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

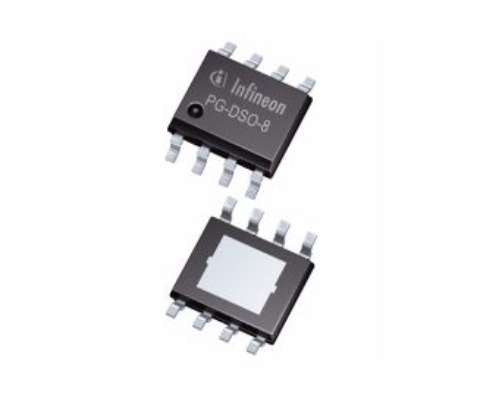

描述: BTS5045-1EJA, 45 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-8-43 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 25.0A P[tot] max: 1.9W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 22.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 3.0A R[DS (on)](@ Tj = 150°C) max: 90.0mΩ R[DS (on)](@ Tj = 25°C): 45.0mΩ Load Current: 4.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5008-1EKB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

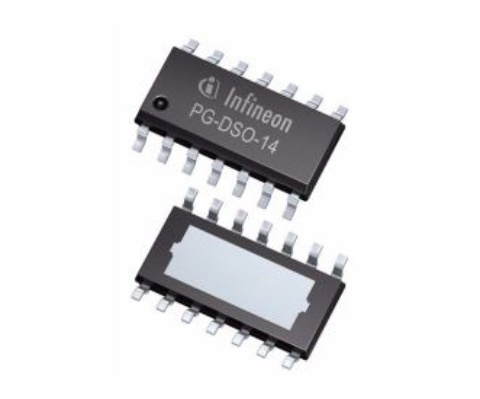

描述: BTS5008-1EKB, 8 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-14-47 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 65.0A P[tot] max: 2.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 250.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 11.0A R[DS (on)](@ Tj = 25°C): 8.0mΩ R[DS (on)](@ Tj = 150°C) max: 16.0mΩ Load Current: 11.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5016-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5016-2EKA, 16 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO14-40-EP, Exposed Pad package, with protective functions & diagnosis

Channels: 2.0 Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.0W t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 250.0µs Operating Temperature max: 150.0°C Current Limit min: 50.0A Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 8.0A R[DS (on)](@ Tj = 25°C): 16.0mΩ R[DS (on)](@ Tj = 150°C) max: 32.0mΩ Load Current: 6.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5180-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5180-2EKA, 180 mΩ dual channel Smart High-Side Power Switch, embedded in PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 8.0A P[tot] max: 1.6W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 8.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 1.4A R[DS (on)](@ Tj = 150°C) max: 360.0mΩ R[DS (on)](@ Tj = 25°C): 180.0mΩ Load Current: 1.5A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5045-2EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5045-2EKA, 45 mΩ dual channel Smart High-Side Power Switch, embedded in a PG-DSO-14-40 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 25.0A P[tot] max: 2.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 22.0A Channels: 2.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 3.0A R[DS (on)](@ Tj = 150°C) max: 90.0mΩ R[DS (on)](@ Tj = 25°C): 45.0mΩ Load Current: 3.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTT6030-1ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

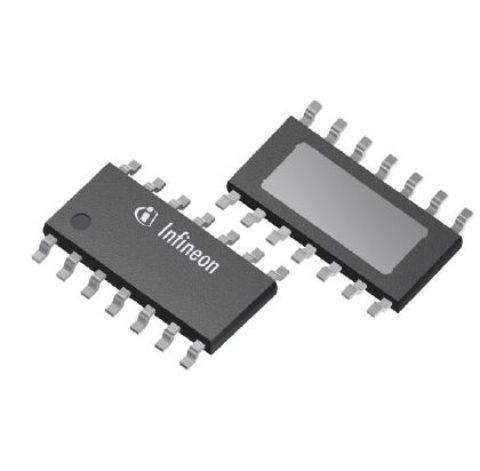

描述: BTT6030-1ERA is a 31mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 31.0mΩ R[DS (on)](@ Tj = 150°C) max: 62.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 60.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.6W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 6.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 6.0A Currently planned availability until at least: 2034 IL Nominal Current: 6.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready Family: EiceDRIVER™ isolated gate driver ICs for EV

BTS5030-1EJA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5030-1EJA, 30 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-8-43 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 36.0A P[tot] max: 1.9W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 33.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 4.0A R[DS (on)](@ Tj = 150°C) max: 60.0mΩ R[DS (on)](@ Tj = 25°C): 30.0mΩ Load Current: 5.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTT6035-1ERL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

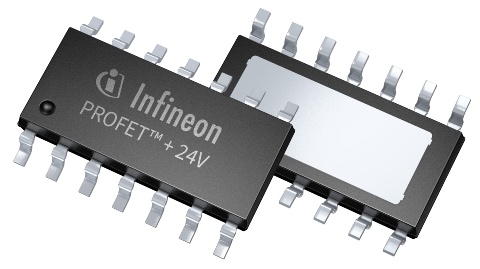

描述: RDS(on) @ Tj = 25°C: 35 mΩ | adjustable current limitation |1 channel| Vs(max) = 48V | PRO-SIL™ ISO 26262-ready

Certifications: ISO 26262-ready Channels: 1.0 Classification: ISO 26262-ready Mounting: SMT Operating Temperature max: 150.0°C Qualification: Automotive R[DS (on)](@ Tj = 150°C) max: 70.0mΩ R[DS (on)](@ Tj = 25°C): 35.0mΩ Recommended Operating Voltage max: 36.0V Diagnostics: Current Sense IL Nominal Current: 5.0A Currently planned availability until at least: 2038 t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 5.0A Family: PROFET™ + 24V

BTT6020-1ERA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTT6020-1ERA is a 20mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 20.0mΩ R[DS (on)](@ Tj = 150°C) max: 40.0mΩ Diagnostics: Current Sense IL(Short Circuit Current): 70.0A Recommended Operating Voltage max: 48.0V P[tot] max: 1.6W Operating Temperature max: 150.0°C Mounting: SMD t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 150.0µs Load Current: 7.0A Qualification: Automotive Nominal Load Current per channel(All channels active): 7.0A Currently planned availability until at least: 2034 Family: PROFET™ + 24V IL Nominal Current: 7.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready
