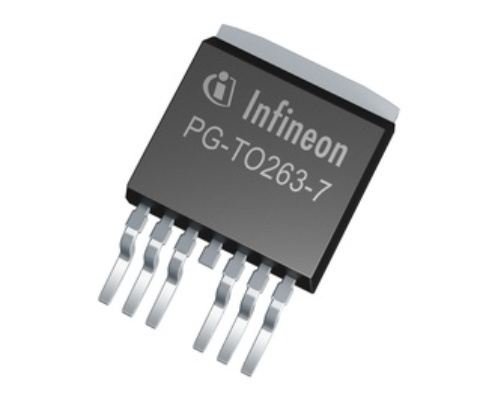

BTS50025-1TAD

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50025-1TAD is a 2.5 mΩ single channel Smart High-Side Power Switch providing protective functions and diagnosis

Diagnostics: Sense IL(Short Circuit Current): 70.0A Mounting: SMD Operating Temperature max: 150.0°C P[tot] max: 200.0W R[DS (on)](@ Tj = 150°C) max: 5.0mΩ t[off](Turn OFF time) max: 700.0µs t[on](Turn ON time) max: 700.0µs Channels: 1.0 R[DS (on)](@ Tj = 25°C): 2.5mΩ Recommended Operating Voltage max: 28.0V Nominal Load Current per channel: 30.0A Load Current: 30.0A Qualification: Automotive Family: Power PROFET™ 12V Currently planned availability until at least: 2033

BTS50010-1TAD

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50010-1TAD is a 1.0 mΩ single channel Smart High-Side Power Switch providing protective functions and diagnosis

Diagnostics: Sense IL(Short Circuit Current): 150.0A Mounting: SMD Operating Temperature max: 150.0°C P[tot] max: 200.0W R[DS (on)](@ Tj = 150°C) max: 2.0mΩ R[DS (on)](@ Tj = 25°C): 1.0mΩ t[on](Turn ON time) max: 700.0µs t[off](Turn OFF time) max: 700.0µs Channels: 1.0 Nominal Load Current per channel: 48.0A Recommended Operating Voltage max: 28.0V Load Current: 48.0A Qualification: Automotive Family: Power PROFET™ 12V Currently planned availability until at least: 2033

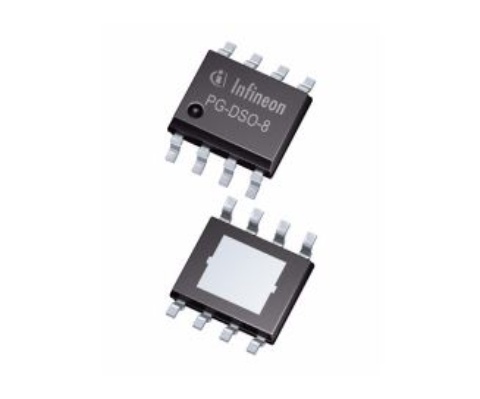

BTS5090-1EJA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5090-1EJA, 90 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-8-43 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 20.0A P[tot] max: 1.9W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Current Limit min: 22.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 2.5A R[DS (on)](@ Tj = 150°C) max: 180.0mΩ R[DS (on)](@ Tj = 25°C): 90.0mΩ Load Current: 3.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

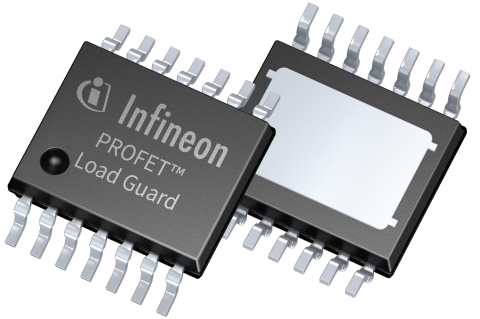

BTG7050-2EPL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 12 V | 50 mΩ | 3 A | adjustable current limitation up to 8.86 A | 2 channel smart high-side power switch | analog current sense, digital diagnostic

R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 100.0mΩ Diagnostics: SENSE IL: 9.2A Recommended Operating Voltage max: 28.0V Operating Temperature max: 150.0°C Mounting: SMT t[off]: 220.0µs t[on] max: 210.0µs Nominal Load Current per channel: 3.0A Current Limit max: 8.86A Channels: 2.0 Classification: ISO 26262-ready Certifications: ISO 26262-ready Load Current: 3.0A Qualification: Automotive Family: PROFET™ Load Guard 12V Currently planned availability until at least: 2038

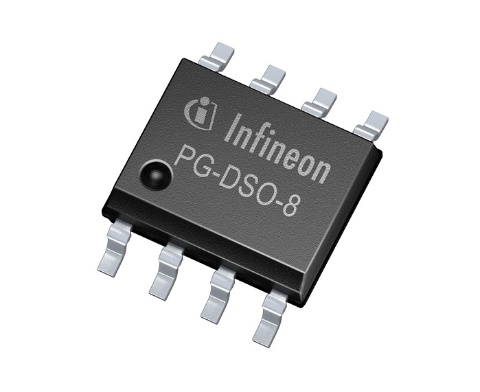

BTS6110-1SJA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS6110-1SJA is a single 80 mΩ channel Smart High-Side Power Switch, embedded in a PG-DSO-8-49 package, providing protective functions and diagnosis

Current Limit min: 20.0A Recommended Operating Voltage max: 16.0V Channels: 1.0 IL(Short Circuit Current): 27.0A P[tot] max: 2.0W t[on](Turn ON time) max: 70.0µs t[off](Turn OFF time) max: 70.0µs Operating Temperature max: 150.0°C Diagnostics: n.a. Mounting: SMT R[DS (on)](@ Tj = 150°C) max: 200.0mΩ R[DS (on)](@ Tj = 25°C): 80.0mΩ Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5200-1ENA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5200-1ENA, 200mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-8-31, Exposed Pad package, with protective functions & diagnosis

Channels: 1.0 Diagnostics: Sense IL(Short Circuit Current): 7.3A Mounting: SMD Nominal Load Current per channel(All channels active): 1.5A Operating Temperature max: 150.0°C P[tot] max: 1.8W R[DS (on)](@ Tj = 150°C) max: 400.0mΩ R[DS (on)](@ Tj = 25°C): 200.0mΩ Recommended Operating Voltage max: 28.0V t[off](Turn OFF time) max: 230.0µs t[on](Turn ON time) max: 120.0µs Load Current: 1.5A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

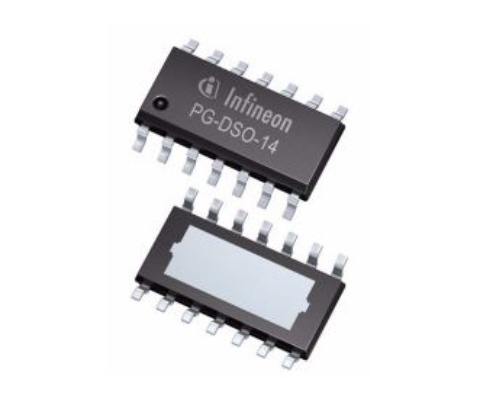

BTS5012-1EKB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5012-1EKB, 12 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-14-47 EP, Exposed Pad package, with protective functions&diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 250.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 9.0A R[DS (on)](@ Tj = 25°C): 12.0mΩ R[DS (on)](@ Tj = 150°C) max: 24.0mΩ Load Current: 10.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5016-1EKB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5016-1EKB, 16 mΩ single channel Smart High-Side Switch, embedded in PG-DSO-14- 47 EP, Exposed Pad package, with protective functions&diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 250.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 8.0A R[DS (on)](@ Tj = 25°C): 16.0mΩ R[DS (on)](@ Tj = 150°C) max: 32.0mΩ Load Current: 8.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5010-1EKB

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5010-1EKB, 16 mΩ single channel Smart High-Side Power Switch, embedded in PG-DSO-14-47 EP, Exposed Pad package, with protective functions & diagnosis

Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 50.0A P[tot] max: 2.0W Operating Temperature max: 150.0°C t[on](Turn ON time) max: 250.0µs t[off](Turn OFF time) max: 250.0µs Current Limit min: 50.0A Channels: 1.0 Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 10.0A R[DS (on)](@ Tj = 25°C): 10.0mΩ R[DS (on)](@ Tj = 150°C) max: 20.0mΩ Load Current: 10.0A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V

BTS5200-4EKA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS5200-4EKA is a 200 mΩ quad channel Smart High-Side Switch, embedded in a PG-DSO-14-48- EP, Exposed Pad package, with protective functions&diagnosis

Channels: 4.0 Recommended Operating Voltage max: 28.0V IL(Short Circuit Current): 7.3A P[tot] max: 1.4W t[on](Turn ON time) max: 230.0µs t[off](Turn OFF time) max: 230.0µs Operating Temperature max: 150.0°C Diagnostics: Sense Mounting: SMT Nominal Load Current per channel(All channels active): 0.8A R[DS (on)](@ Tj = 150°C) max: 400.0mΩ R[DS (on)](@ Tj = 25°C): 200.0mΩ Load Current: 0.8A Qualification: Automotive Currently planned availability until at least: 2034 Family: PROFET™ + 12V
