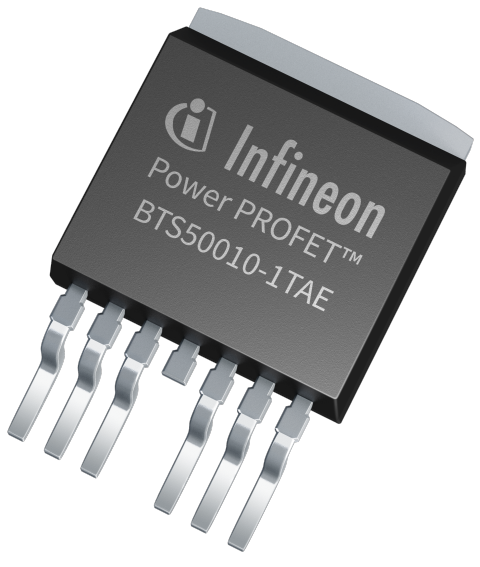

BTS50010-1TAE

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50010-1TAE is a smart high-side switch designed to drive currents up to 40A DC in 12V systems

Channels: 1.0 Diagnostics: Sense IL(Short Circuit Current): 250.0A Mounting: SMD Operating Temperature max: 150.0°C P[tot] max: 200.0W R[DS (on)](@ Tj = 150°C) max: 2.1mΩ R[DS (on)](@ Tj = 25°C): 1.0mΩ t[off](Turn OFF time) max: 735.0µs t[on](Turn ON time) max: 700.0µs Nominal Load Current per channel: 48.0A Recommended Operating Voltage max: 28.0V Load Current: 48.0A Qualification: Automotive Family: Power PROFET™ 12V Currently planned availability until at least: 2033

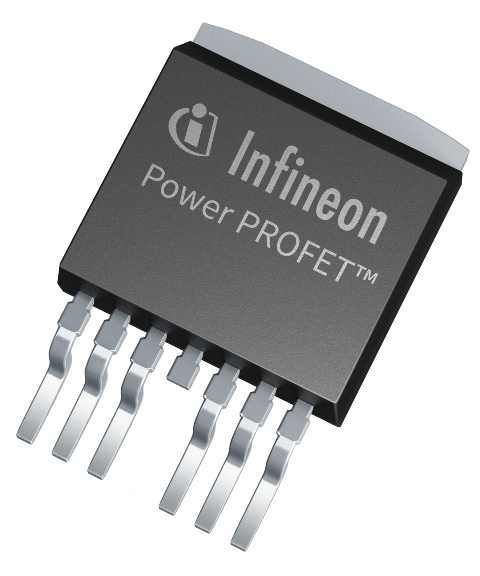

BTS50015-1TAD

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS50015-1TAD is a 1.5 mΩ single channel Smart High-Side Power Switch providing protective functions and diagnosis

IL(Short Circuit Current): 135.0A Mounting: SMD Operating Temperature max: 150.0°C P[tot] max: 200.0W Channels: 1.0 Diagnostics: Sense t[off](Turn OFF time) max: 700.0µs t[on](Turn ON time) max: 700.0µs R[DS (on)](@ Tj = 25°C): 1.5mΩ R[DS (on)](@ Tj = 150°C) max: 3.0mΩ Nominal Load Current per channel: 39.0A Recommended Operating Voltage max: 28.0V Load Current: 39.0A Qualification: Automotive Family: Power PROFET™ 12V Currently planned availability until at least: 2033

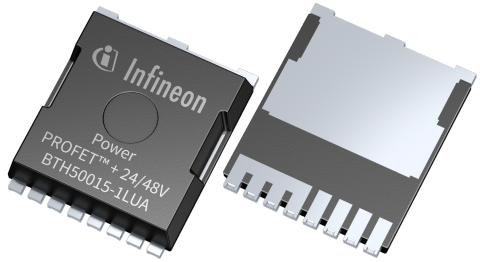

BTH50015-1LUA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: RDS (on) @ Tj = 25°C: 1.5 mΩ | Nominal Load Current per channel: 35 A | IL (Short Circuit Current): 90 A | ISO 26262-ready

Classification: ISO 26262-ready Channels: 1.0 Certifications: ISO 26262-ready Diagnostics: Sense IL(Short Circuit Current): 90.0A Load Current: 35.0A Operating Temperature max: 150.0°C Qualification: Automotive R[DS (on)](@ Tj = 150°C) max: 3.5mΩ R[DS (on)](@ Tj = 25°C): 1.5mΩ Recommended Operating Voltage max: 60.0V t[off](Turn OFF time) max: 225.0µs t[on](Turn ON time) max: 150.0µs Nominal Load Current per channel: 35.0A Mounting: SMD Currently planned availability until at least: 2033 Family: Power PROFET™ + 24/48V

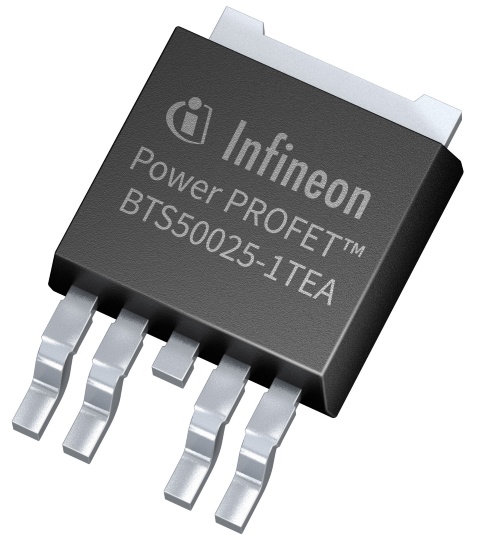

BTS50025-1TEA

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: BTS50025-1TEA is a 2.5 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TO-252-5-11 package, with protective functions & diagnosis

Channels: 1.0 Diagnostics: Sense IL(Short Circuit Current): 60.0A Mounting: SMD Operating Temperature max: 150.0°C t[off](Turn OFF time) max: 450.0µs t[on](Turn ON time) max: 250.0µs Nominal Load Current per channel: 26.0A R[DS (on)](@ Tj = 25°C): 2.7mΩ Recommended Operating Voltage max: 27.0V Load Current: 26.0A Qualification: Automotive Family: Power PROFET™ 12V Currently planned availability until at least: 2033

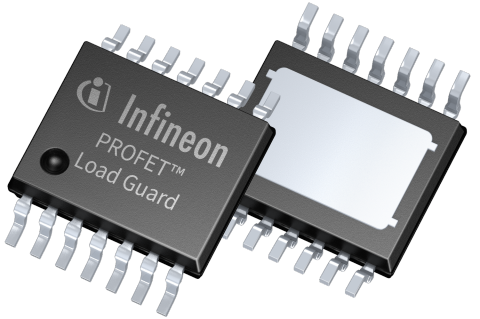

BTG7090-1EPL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 12 V | 90 mΩ | 2 A | adjustable current limitation up to 4.34 A | 1 channel smart high-side power switch | analog current sense, digital diagnostic

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 90.0mΩ R[DS (on)](@ Tj = 150°C) max: 180.0mΩ Diagnostics: SENSE IL: 4.3A Recommended Operating Voltage max: 28.0V Operating Temperature max: 150.0°C Mounting: SMT t[off]: 220.0µs t[on]: 210.0µs Current Limit max: 4.34A Nominal Load Current per channel: 2.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready Load Current: 2.0A Qualification: Automotive Family: PROFET™ Load Guard 12V Currently planned availability until at least: 2038

BTG7090-2EPL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 12 V | 90 mΩ | 2 A | adjustable overcurrent limitation up to 4.3 A | 2 channel smart high-side switch | analog current sense, digital diagnostic

Channels: 2.0 R[DS (on)](@ Tj = 25°C): 90.0mΩ R[DS (on)](@ Tj = 150°C) max: 180.0mΩ Diagnostics: SENSE IL: 4.3A Operating Temperature max: 150.0°C Mounting: SMT t[off]: 220.0µs t[on]: 210.0µs Recommended Operating Voltage max: 28.0V Nominal Load Current per channel: 2.0A Current Limit max: 4.34A Classification: ISO 26262-ready Certifications: ISO 26262-ready Load Current: 2.0A Qualification: Automotive Family: PROFET™ Load Guard 12V Currently planned availability until at least: 2038

BTS133TC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS® technology. Providing embedded protection functions.

EAS/Avalanche Energy: 2000.0mJ I[D ]: 3.8A I[D(lim)] min: 21.0A I[L(LIM)] min: 21.0A Load Current: 3.8A Mounting: SMT P[tot] max: 90.0W V[DS] max: 60.0V I[L(nom)]: 3.8A Operating Temperature max: 150.0°C E[AS](Energy capability): 2000.0mJ t[off](Turn OFF time) max: 170.0µs t[on](Turn ON time) max: 100.0µs Family: Classic HITFET™ Channels: 1.0 R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 120.0mΩ Protection strategy: Latch Nominal Load Current per channel: 3.8A I[L](Short Circuit Current): 21.0A 更多

Recommended Operating Voltage max: 60.0V Classification: n.a Currently planned availability until at least: n.a Diagnostics: n.a

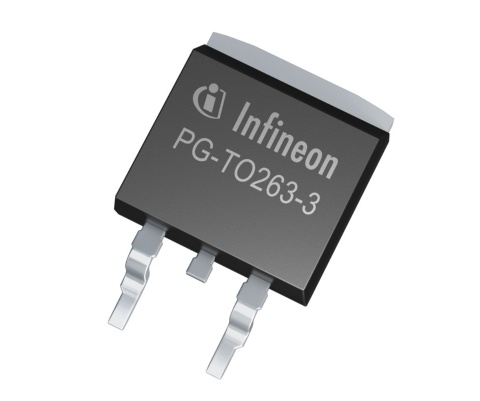

BTS3018TC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS3018TC is an 18 mOhm single channel Smart Low-Side Power Switch in a PG-TO263-3-2 package providing embedded protective functions.

EAS/Avalanche Energy: 1900.0mJ I[D ]: 6.0A I[D(lim)] min: 30.0A I[L(LIM)] min: 30.0A Load Current: 6.0A Mounting: SMT V[DS] max: 60.0V Diagnostic Features: Output Status Control Interface: Discrete I[L(nom)]: 6.0A Operating Temperature max: 150.0°C E[AS](Energy capability): 1900.0mJ t[off](Turn OFF time) max: 160.0µs t[on](Turn ON time) max: 100.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 18.0mΩ R[DS (on)](@ Tj = 150°C) max: 44.0mΩ Diagnostics: - Protection strategy: Latch 更多

Nominal Load Current per channel: 6.0A I[L](Short Circuit Current): 30.0A Recommended Operating Voltage max: 60.0V Family: Classic HITFET™ 24V Currently planned availability until at least: 2038

BTS3046SDR

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS3046SDR is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.

EAS/Avalanche Energy: 140.0mJ Features: 24V COMPATIBLE I[D ]: 3.6A I[D(lim)] min: 10.0A I[L(LIM)] min: 10.0A Mounting: SMT V[DS] max: 60.0V Load Current: 4.3A Diagnostic Features: Output Status Control Interface: Discrete I[L(nom)]: 3.6A Operating Temperature max: 150.0°C E[AS](Energy capability): 140.0mJ t[off](Turn OFF time) max: 120.0µs t[on](Turn ON time) max: 100.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 54.0mΩ R[DS (on)](@ Tj = 150°C) max: 134.0mΩ Diagnostics: - 更多

Protection strategy: Auto-restart Nominal Load Current per channel: 3.6A I[L](Short Circuit Current): 10.0A Recommended Operating Voltage max: 60.0V Family: Classic HITFET™ 24V Currently planned availability until at least: 2038

BTG7050-1EPL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 12 V | 50 mΩ | 3 A | adjustable current limitation up to 8.86 A | 1 channel smart high-side power switch | analog current sense, digital diagnostic

Channels: 1.0 R[DS (on)](@ Tj = 25°C): 50.0mΩ R[DS (on)](@ Tj = 150°C) max: 100.0mΩ Diagnostics: SENSE IL: 9.2A Recommended Operating Voltage max: 28.0V Operating Temperature max: 150.0°C Mounting: SMT t[off] max: 220.0µs t[on] max: 210.0µs Current Limit max: 8.86A Nominal Load Current per channel: 3.0A Classification: ISO 26262-ready Certifications: ISO 26262-ready Load Current: 3.0A Qualification: Automotive Family: PROFET™ Load Guard 12V Currently planned availability until at least: 2038
