BTS247ZE3062A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS247Z E3062A is an automotive low-side semperature switch
EAS/Avalanche Energy: 1300.0mJ
I[D ]: 19.0A
Mounting: SMT
P[tot] max: 120.0W
V[DS] max: 55.0V
I[L(nom)]: 12.0A
Recommended Operating Voltage max: 55.0V
Operating Temperature max: 175.0°C
E[AS](Energy capability): 1300.0mJ
t[off](Turn OFF time) max: 0.07µs
t[on](Turn ON time) max: 0.07µs
Family: TEMPFET™
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 18.0mΩ
Protection strategy: Latch
Nominal Load Current per channel: 19.0A
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a

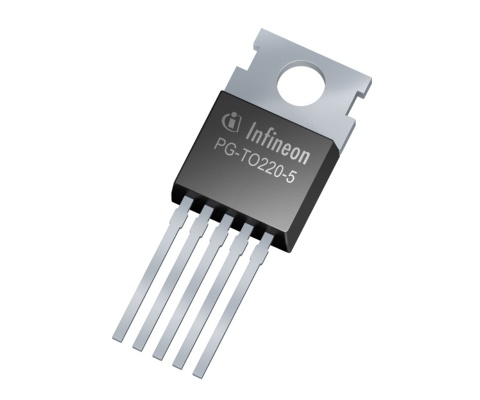

BTS244ZE3043
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS244Z E3062A is an automotive low-side semperature switch
EAS/Avalanche Energy: 1650.0mJ
I[D ]: 26.0A
Mounting: THT
P[tot] max: 170.0W
V[DS] max: 55.0V
I[L(nom)]: 19.0A
Recommended Operating Voltage max: 55.0V
Operating Temperature max: 175.0°C
E[AS](Energy capability): 1650.0mJ
t[off](Turn OFF time) max: 0.1µs
t[on](Turn ON time) max: 0.13µs
Family: TEMPFET™
Channels: 1.0
Protection strategy: Latch
Nominal Load Current per channel: 26.0A
R[DS (on)](@ Tj = 150°C) max: 13.0mΩ
Currently planned availability until at least: n.a
Classification: n.a
Diagnostics: n.a

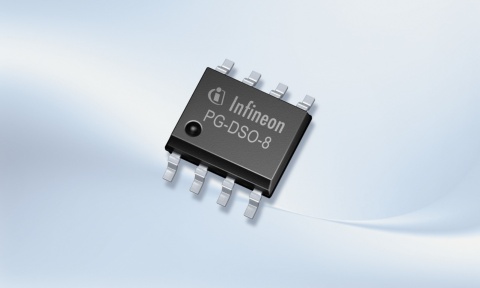

BTS3408G
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3408G is a dual channel Low-Side Switch with D-MOS output stages for driving resistive, capacitive and inductive loads
EAS/Avalanche Energy: 800.0mJ
Features: 24V COMPATIBLE
I[D ]: 0.55A
I[D(lim)] min: 1.0A
Mounting: SMT
P[tot] max: 0.88W
V[DS] max: 60.0V
Load Current: 0.45A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 0.55A
Recommended Operating Voltage max: 60.0V
Operating Temperature max: 150.0°C
t[off](Turn OFF time) max: 8.0µs
t[on](Turn ON time) max: 8.0µs
Family: Classic HITFET™
Channels: 2.0
R[DS (on)](@ Tj = 25°C): 480.0mΩ
R[DS (on)](@ Tj = 150°C) max: 1000.0mΩ
Diagnostics: Digital
更多
Protection strategy: Auto-restart
Nominal Load Current per channel: 0.55A
I[L](Short Circuit Current): 1.0A
Classification: n.a
Currently planned availability until at least: n.a

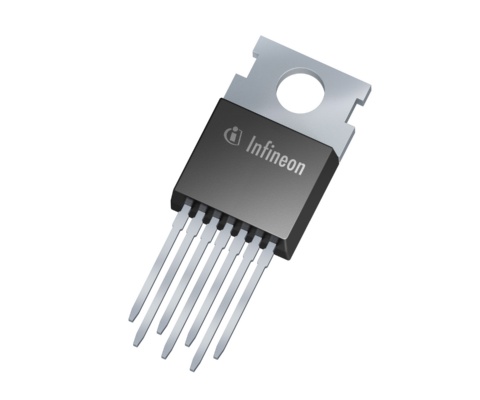

BTS282ZE3230
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS282Z E3230 is an automotive low-side semperature switch
EAS/Avalanche Energy: 2000.0mJ
I[D ]: 52.0A
Load Current: 52.0A
Mounting: THT
P[tot] max: 300.0W
V[DS] max: 49.0V
I[L(nom)]: 52.0A
Recommended Operating Voltage max: 49.0V
Operating Temperature max: 175.0°C
E[AS](Energy capability): 2000.0mJ
t[off](Turn OFF time) max: 0.16µs
t[on](Turn ON time) max: 0.1µs
Family: TEMPFET™
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 6.5mΩ
Protection strategy: Latch
Nominal Load Current per channel: 52.0A
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a

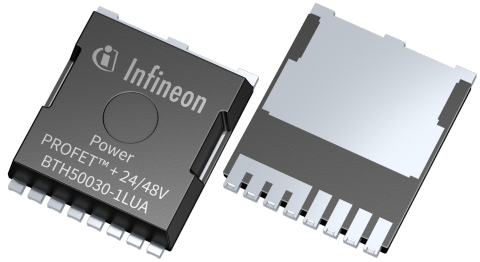

BTH50030-1LUA
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: RDS (on) @ Tj = 25°C: 3 mΩ | Nominal Load Current per channel: 25 A | IL (Short Circuit Current): 55 A | ISO 26262-ready
Certifications: ISO 26262-ready
Classification: ISO 26262-ready
Channels: 1.0
Diagnostics: Sense
IL(Short Circuit Current): 55.0A
Load Current: 25.0A
Mounting: SMD
Nominal Load Current per channel: 25.0A
Operating Temperature max: 150.0°C
Qualification: Automotive
R[DS (on)](@ Tj = 150°C) max: 7.0mΩ
R[DS (on)](@ Tj = 25°C): 3.0mΩ
Recommended Operating Voltage max: 60.0V
t[off](Turn OFF time) max: 225.0µs
t[on](Turn ON time) max: 150.0µs
Currently planned availability until at least: 2033
Family: Power PROFET™ + 24/48V

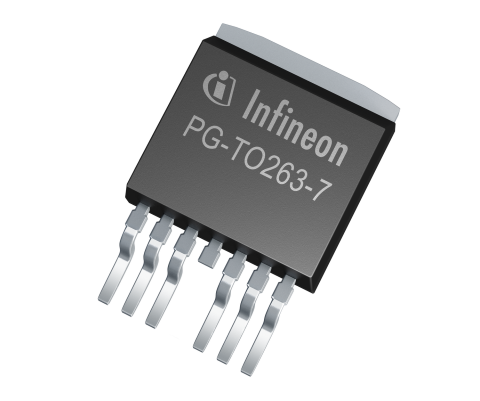

BTS282ZE3180A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS282Z E3230 is an automotive low-side semperature switch
EAS/Avalanche Energy: 2000.0mJ
I[D ]: 52.0A
Load Current: 52.0A
Mounting: SMT
P[tot] max: 300.0W
V[DS] max: 49.0V
I[L(nom)]: 52.0A
Recommended Operating Voltage max: 49.0V
Operating Temperature max: 175.0°C
E[AS](Energy capability): 2000.0mJ
t[off](Turn OFF time) max: 0.16µs
t[on](Turn ON time) max: 0.1µs
Family: TEMPFET™
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 6.5mΩ
Protection strategy: Latch
Nominal Load Current per channel: 52.0A
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a
Certifications: ISO 26262-ready
Channels: 1.0
Diagnostics: Sense
IL(Short Circuit Current): 130.0A
Load Current: 55.0A
Mounting: SMD
Operating Temperature max: 150.0°C
R[DS (on)](@ Tj = 150°C) max: 1.4mΩ
t[off](Turn OFF time) max: 220.0µs
t[on](Turn ON time) max: 190.0µs
Classification: ISO 26262-ready
Halogen-free: yes
Nominal Load Current per channel: 55.0A
Recommended Operating Voltage max: 28.0V
R[DS (on)](@ Tj = 25°C): 0.7mΩ
Qualification: Automotive
Family: Power PROFET™ + 12V
Currently planned availability until at least: 2033
BTS50010-1LUA
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: Single channel smart high-side power switch providing protective functions and diagnosis
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 1.0mΩ
R[DS (on)](@ Tj = 150°C) max: 2.0mΩ
Diagnostics: Sense
IL(Short Circuit Current): 90.0A
Nominal Load Current per channel: 46.0A
Mounting: SMD
t[off](Turn OFF time) max: 220.0µs
t[on](Turn ON time) max: 190.0µs
Operating Temperature max: 150.0°C
Recommended Operating Voltage max: 28.0V
Classification: ISO 26262-ready
Load Current: 46.0A
Certifications: ISO 26262-ready
Qualification: Automotive
Family: Power PROFET™ + 12V
Currently planned availability until at least: 2033
BTS50020-1TAD
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS50020-1TAD is a 2.0 mΩ single channel Smart High-Side Power Switch providing protective functions and diagnosis
Diagnostics: Sense
IL(Short Circuit Current): 100.0A
Mounting: SMD
Operating Temperature max: 150.0°C
P[tot] max: 200.0W
R[DS (on)](@ Tj = 150°C) max: 4.0mΩ
R[DS (on)](@ Tj = 25°C): 2.0mΩ
t[off](Turn OFF time) max: 700.0µs
t[on](Turn ON time) max: 700.0µs
Channels: 1.0
Recommended Operating Voltage max: 28.0V
Nominal Load Current per channel: 35.0A
Load Current: 35.0A
Qualification: Automotive
Family: Power PROFET™ 12V
Currently planned availability until at least: 2033

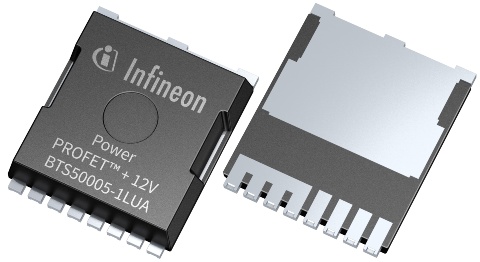

BTS50005-1LUA
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: Single channel smart high-side power switch providing protective functions and diagnosis
R[DS (on)](@ Tj = 25°C): 0.6mΩ
R[DS (on)](@ Tj = 150°C) max: 1.1mΩ
Channels: 1.0
Diagnostics: Sense
Operating Temperature max: 150.0°C
Mounting: SMD
t[off](Turn OFF time) max: 220.0µs
t[on](Turn ON time) max: 190.0µs
IL(Short Circuit Current): 150.0A
Nominal Load Current per channel: 65.0A
Recommended Operating Voltage max: 28.0V
Classification: ISO 26262-ready
Load Current: 65.0A
Certifications: ISO 26262-ready
Qualification: Automotive
Family: Power PROFET™ + 12V
Currently planned availability until at least: 2033
