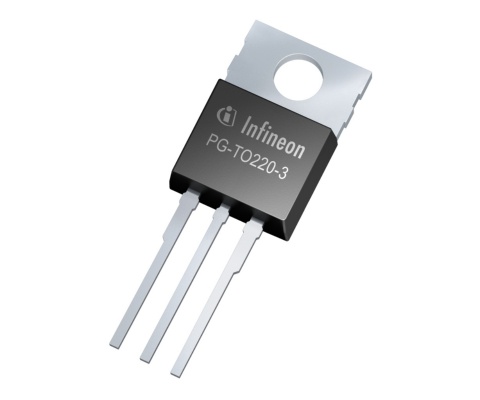

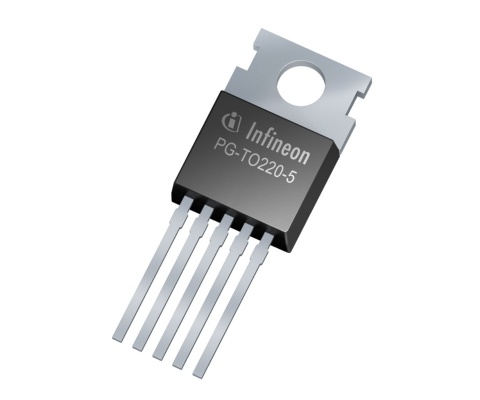

BTS133
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: N channel vertical power FET in Smart SIPMOS® technology. Providing embedded protection functions.
EAS/Avalanche Energy: 2000.0mJ
Features: 24V COMPATIBLE
I[D ]: 3.8A
I[D(lim)] min: 21.0A
I[L(LIM)] min: 21.0A
I[SC] max: 64.0A
Load Current: 3.8A
Mounting: THT
P[tot] max: 90.0W
V[DS] max: 60.0V
I[L(nom)]: 3.8A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 2000.0mJ
t[off](Turn OFF time) max: 170.0µs
t[on](Turn ON time) max: 100.0µs
Family: Classic HITFET™
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 50.0mΩ
R[DS (on)](@ Tj = 150°C) max: 120.0mΩ
Protection strategy: Latch
更多
Nominal Load Current per channel: 3.8A
I[L](Short Circuit Current): 21.0A
Recommended Operating Voltage max: 60.0V
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a
BTS141
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: N channel vertical power FET in Smart SIPMOS® chip on chip technology. Providing embedded protection functions.
EAS/Avalanche Energy: 4000.0mJ
Features: 24V COMPATIBLE
I[D ]: 5.1A
I[D(lim)] min: 25.0A
I[L(LIM)] min: 25.0A
Load Current: 5.1A
Mounting: THT
P[tot] max: 149.0W
V[DS] max: 60.0V
I[L(nom)]: 12.0A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 4000.0mJ
t[off](Turn OFF time) max: 170.0µs
t[on](Turn ON time) max: 100.0µs
Family: Classic HITFET™
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 31.0mΩ
R[DS (on)](@ Tj = 150°C) max: 68.0mΩ
Protection strategy: Latch
Nominal Load Current per channel: 5.1A
更多
I[L](Short Circuit Current): 25.0A
Recommended Operating Voltage max: 60.0V
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a

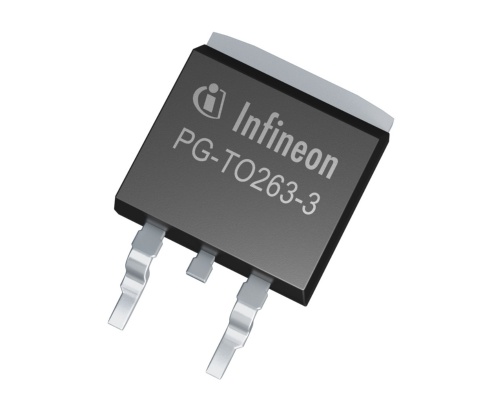

BTS141TC
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: N channel vertical power FET in Smart SIPMOS® chip on chip technology. Providing embedded protection functions.
EAS/Avalanche Energy: 4000.0mJ
I[D ]: 5.1A
I[D(lim)] min: 25.0A
I[L(LIM)] min: 25.0A
Load Current: 5.1A
Mounting: SMT
P[tot] max: 149.0W
V[DS] max: 60.0V
I[L(nom)]: 5.1A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 4000.0mJ
t[off](Turn OFF time) max: 170.0µs
t[on](Turn ON time) max: 100.0µs
Family: Classic HITFET™
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 31.0mΩ
R[DS (on)](@ Tj = 150°C) max: 68.0mΩ
Protection strategy: Latch
Nominal Load Current per channel: 5.1A
I[L](Short Circuit Current): 25.0A
更多
Recommended Operating Voltage max: 60.0V
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a

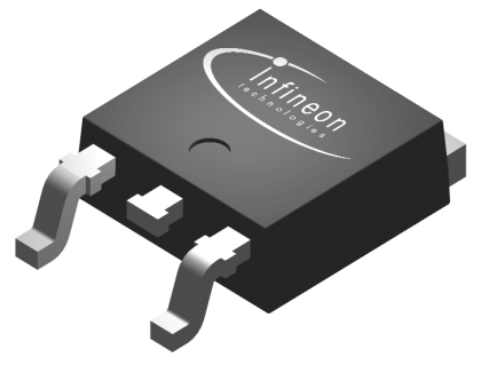

BTS3028SDL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3028SDL is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.
EAS/Avalanche Energy: 350.0mJ
Features: 24V COMPATIBLE
I[D ]: 5.0A
I[D(lim)] min: 18.0A
I[L(LIM)] min: 18.0A
Mounting: SMT
V[DS] max: 60.0V
Load Current: 5.8A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 5.0A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 350.0mJ
t[off](Turn OFF time) max: 120.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 32.0mΩ
R[DS (on)](@ Tj = 150°C) max: 91.0mΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 5.0A
I[L](Short Circuit Current): 18.0A
Recommended Operating Voltage max: 60.0V
Family: Classic HITFET™ 24V
Currently planned availability until at least: 2038
BTS3046SDL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3046SDL is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.
EAS/Avalanche Energy: 140.0mJ
Features: 24V COMPATIBLE
I[D ]: 3.6A
I[D(lim)] min: 10.0A
I[L(LIM)] min: 10.0A
Mounting: SMT
V[DS] max: 60.0V
Load Current: 4.3A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 3.6A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 140.0mJ
t[off](Turn OFF time) max: 120.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 54.0mΩ
R[DS (on)](@ Tj = 150°C) max: 134.0mΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 3.6A
I[L](Short Circuit Current): 10.0A
Recommended Operating Voltage max: 60.0V
Family: Classic HITFET™ 24V
Currently planned availability until at least: 2038
BTS3028SDR
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3028SDR is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.
EAS/Avalanche Energy: 350.0mJ
Features: 24V COMPATIBLE
I[D ]: 5.0A
I[D(lim)] min: 18.0A
I[L(LIM)] min: 18.0A
Mounting: SMT
V[DS] max: 60.0V
Load Current: 5.8A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 5.0A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 350.0mJ
t[off](Turn OFF time) max: 120.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 32.0mΩ
R[DS (on)](@ Tj = 150°C) max: 91.0mΩ
Diagnostics: -
更多
Protection strategy: Auto-restart
Nominal Load Current per channel: 5.0A
I[L](Short Circuit Current): 18.0A
Recommended Operating Voltage max: 60.0V
Family: Classic HITFET™ 24V
Currently planned availability until at least: 2038
BTS3104SDR
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3104SDR is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.
EAS/Avalanche Energy: 50.0mJ
Features: 24V COMPATIBLE
I[D ]: 2.0A
I[D(lim)] min: 6.0A
Mounting: SMT
V[DS] max: 60.0V
Load Current: 2.5A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 2.0A
Recommended Operating Voltage max: 60.0V
Operating Temperature max: 150.0°C
E[AS](Energy capability): 50.0mJ
t[off](Turn OFF time) max: 120.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 121.0mΩ
R[DS (on)](@ Tj = 150°C) max: 323.0mΩ
Diagnostics: -
更多
Protection strategy: Auto-restart
Nominal Load Current per channel: 2.0A
I[L](Short Circuit Current): 6.0A
Family: Classic HITFET™ 24V
Currently planned availability until at least: 2038
BTS3104SDL
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS3104SDL is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions.
EAS/Avalanche Energy: 50.0mJ
Features: 24V COMPATIBLE
I[D ]: 2.0A
I[D(lim)] min: 6.0A
Mounting: SMT
V[DS] max: 60.0V
Load Current: 2.5A
Diagnostic Features: Output Status
Control Interface: Discrete
I[L(nom)]: 2.0A
Recommended Operating Voltage max: 60.0V
Operating Temperature max: 150.0°C
E[AS](Energy capability): 50.0mJ
t[off](Turn OFF time) max: 120.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 121.0mΩ
R[DS (on)](@ Tj = 150°C) max: 323.0mΩ
Diagnostics: -
更多
Protection strategy: Latch
Nominal Load Current per channel: 2.0A
I[L](Short Circuit Current): 6.0A
Currently planned availability until at least: 2038
Family: Classic HITFET™ 24V
BTS134D
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.
EAS/Avalanche Energy: 3000.0mJ
I[D ]: 3.5A
I[D(lim)] min: 7.1A
I[L(LIM)] min: 7.1A
Mounting: SMT
P[tot] max: 43.0W
V[DS] max: 42.0V
Control Interface: Discrete
Load Current: 4.6A
I[L(nom)]: 3.5A
Operating Temperature max: 150.0°C
E[AS](Energy capability): 3000.0mJ
t[off](Turn OFF time) max: 100.0µs
t[on](Turn ON time) max: 100.0µs
Classification: -
Channels: 1.0
R[DS (on)](@ Tj = 25°C): 45.0mΩ
R[DS (on)](@ Tj = 150°C) max: 100.0mΩ
Diagnostics: -
Nominal Load Current per channel: 3.5A
更多
I[L](Short Circuit Current): 7.1A
Recommended Operating Voltage max: 42.0V
Protection strategy: Auto-restart
Family: Classic HITFET™ 12V
Currently planned availability until at least: 2038
BTS244ZE3062A
数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路
描述: The BTS244Z E3062A is an automotive low-side semperature switch
EAS/Avalanche Energy: 1650.0mJ
I[D ]: 26.0A
Load Current: 26.0A
Mounting: SMT
P[tot] max: 170.0W
V[DS] max: 55.0V
I[L(nom)]: 19.0A
Recommended Operating Voltage max: 55.0V
Operating Temperature max: 175.0°C
E[AS](Energy capability): 1650.0mJ
t[off](Turn OFF time) max: 0.1µs
t[on](Turn ON time) max: 0.13µs
Family: TEMPFET™
Channels: 1.0
R[DS (on)](@ Tj = 150°C) max: 13.0mΩ
Protection strategy: Latch
Nominal Load Current per channel: 26.0A
Classification: n.a
Currently planned availability until at least: n.a
Diagnostics: n.a
